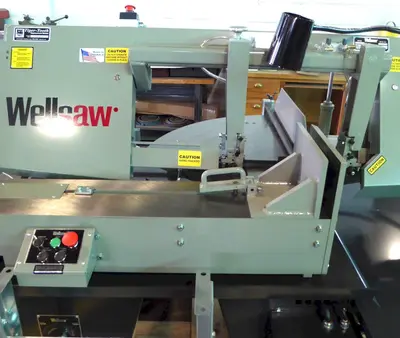

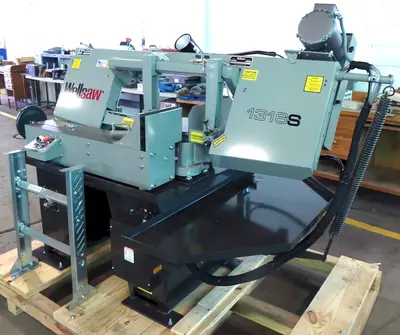

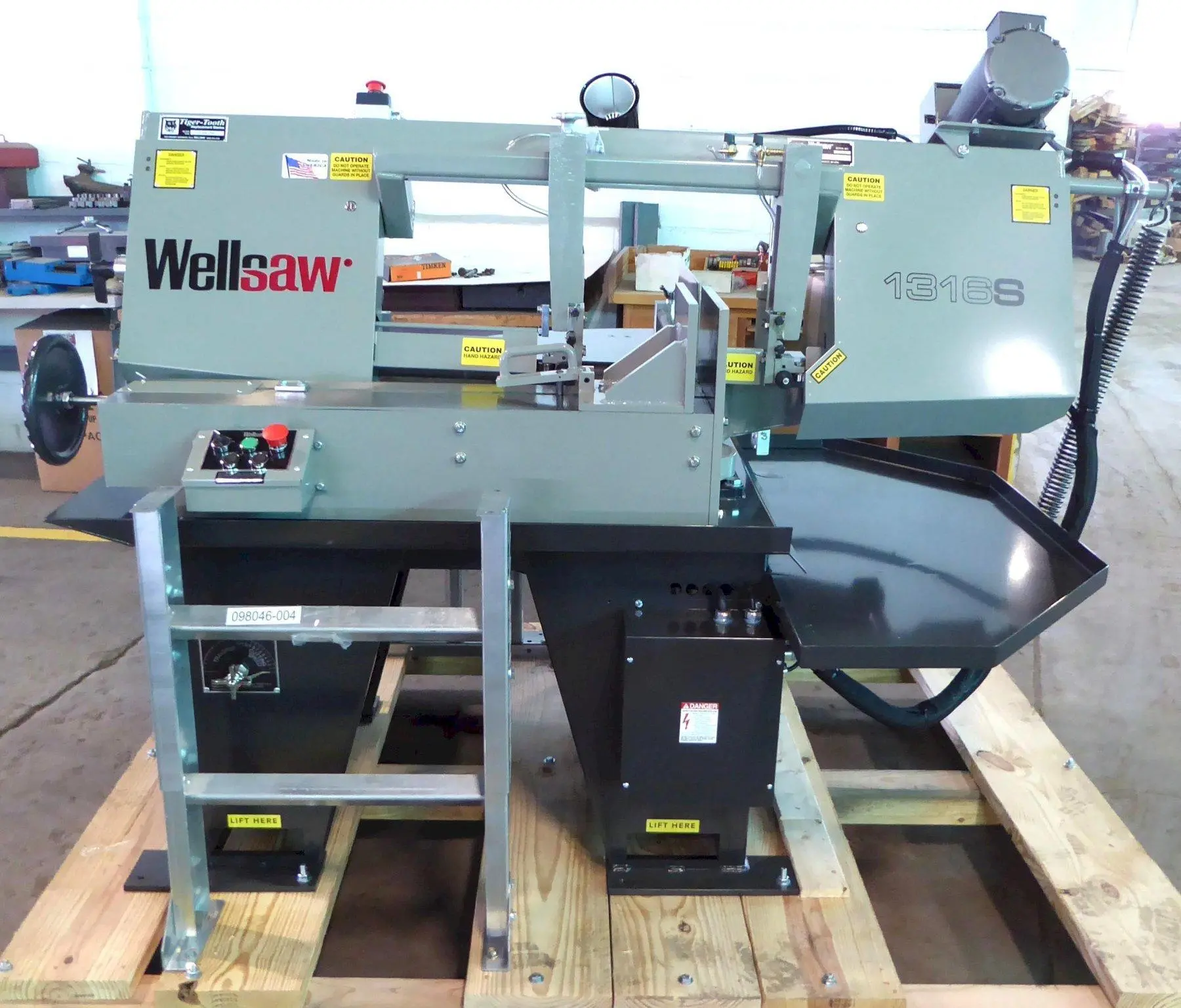

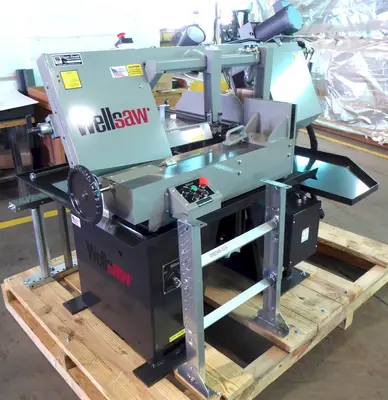

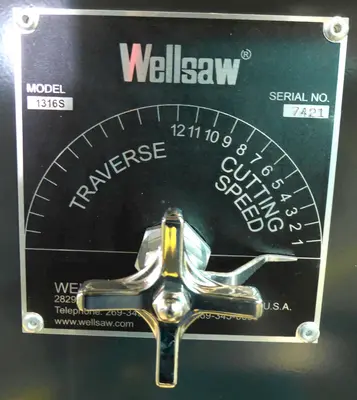

NEW WELLSAW 1316S

(NEW) WELLSAW HORIZONTAL BAND SAW

MODEL: 1316S

FACTORY SPECIFICATIONS

Saw Head Swivels On Precision Ball Bearings
Miter To 60 Degrees, No Need To Swivel The Stock

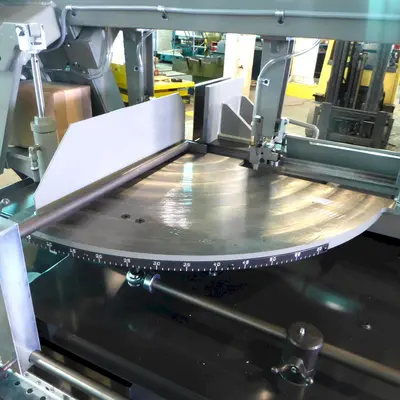

Large Protractor For Accurate Angle Selection

Capacity, Rectangular, 90 Degrees: 13"H x 16"W
Capacity, Rectangular, 45 Degrees: 13"H x 11-1/2"W
Capacity, Rectangular, 60 Degrees: 8-1/2"H x 8"W
Capacity, Rounds, 90 Degrees: 13"
Capacity, Rounds, 45 Degrees: 11-1/2"
Capacity, Rounds, 60 Degrees: 8"
Blade Size: 1" x .035" x 12'6"
Blade Speeds, Infinitely Variable: 70 - 375 FPM
Band Wheels: 15" Diameter Cast Iron
Stock Stop Projection: 25"
Bed Height: 35"

EQUIPPED WITH

3 HP Motor 230/460/60/3 (Presently wired for 230 volt)
Variable Hydraulic Down Feed Control
"Rite-Tension" Blade Tensioning Device
Wet Cutting System w/Full Surround Pan
Powered Blade Brush
Spring Loaded Carbide Guides With Rollers
Quick Acting Vise
Precision Ground Bed and Vise Jaws
Adjustable Stock Stop/Back Gauge
Auto Shut-Off At End Of Cut
Magnetic Starter w/Overload and Under voltage Protection
Work Light

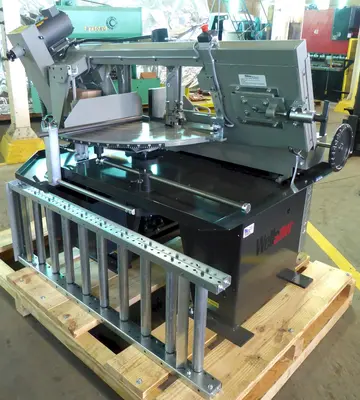

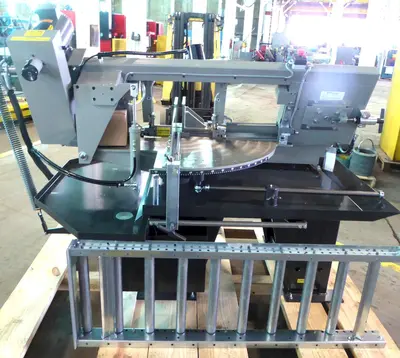

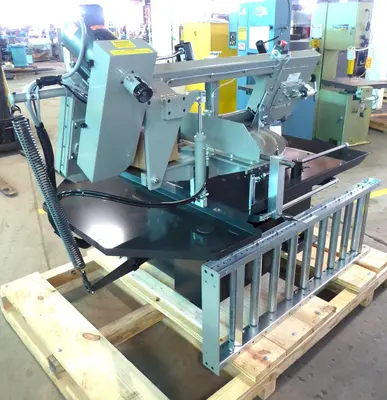

5' x 18" Infeed Roller Conveyor

Floor Area: 90"W x 76"L
Approximate Weight: 1600 Lbs.

Location: Cincinnati, Ohio

Note: Price does not include incoming freight charge from Kalamazoo, MI to Cincinnati, OH

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
