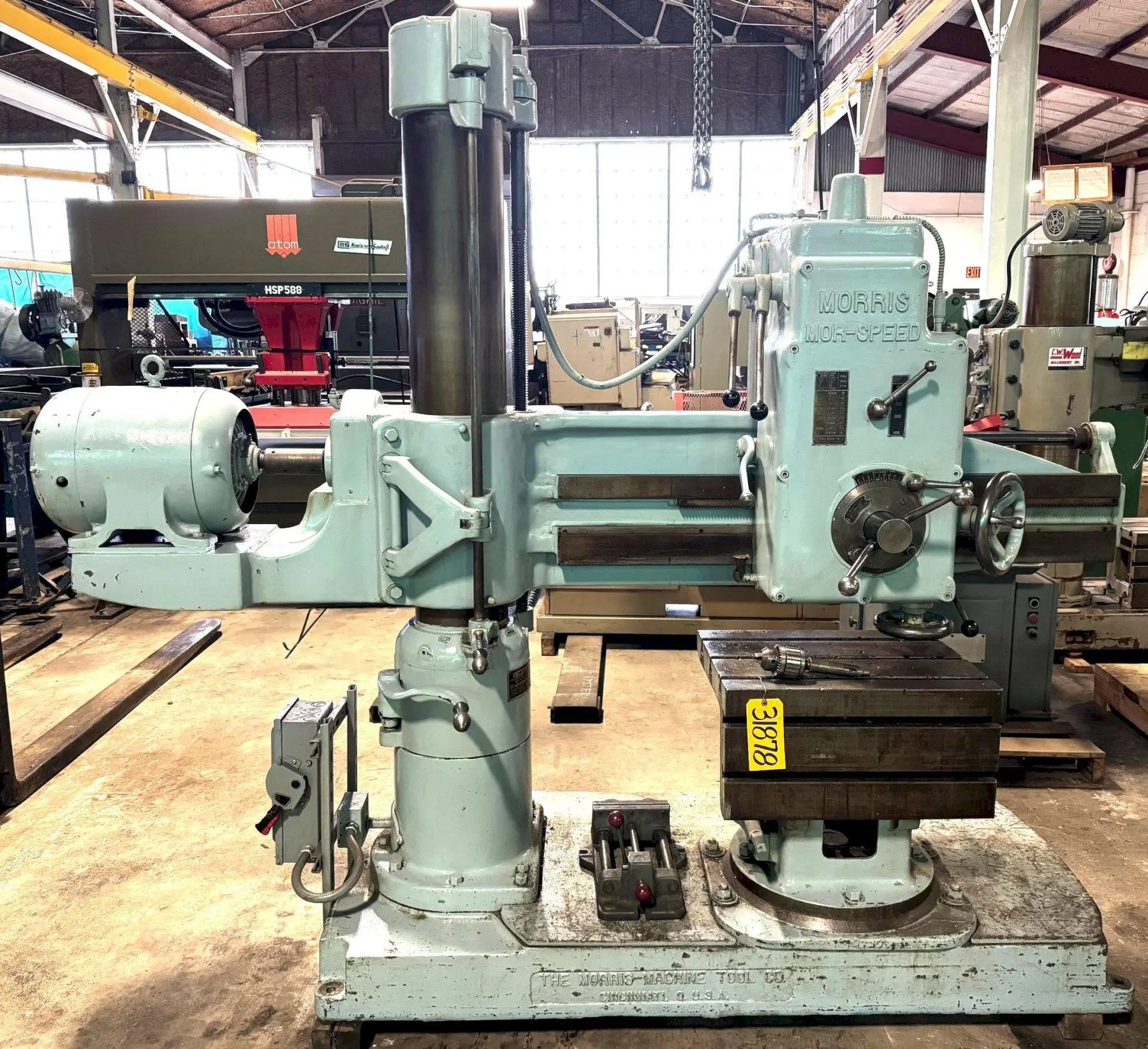

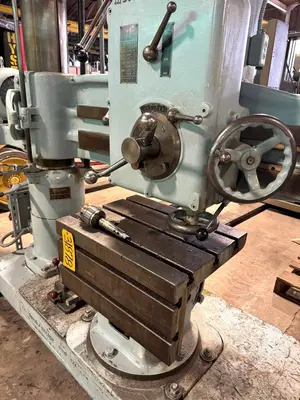

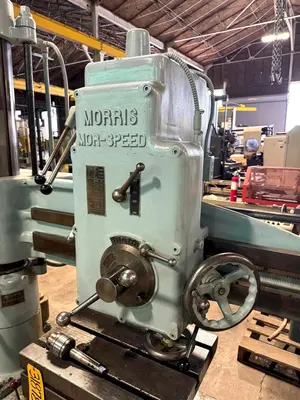

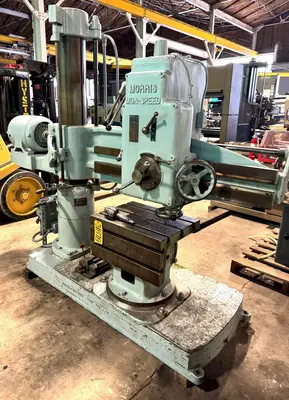

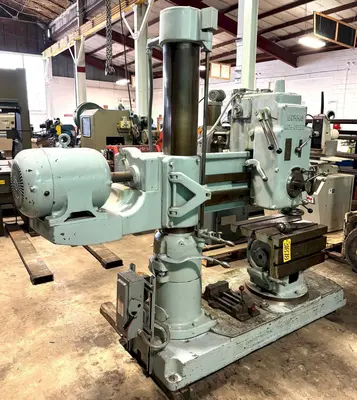

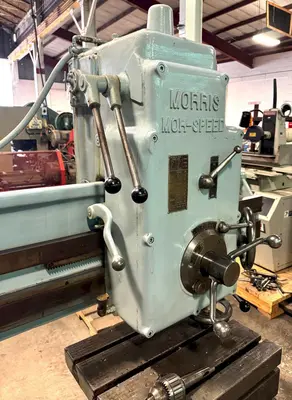

USED MORRIS MOR-SPEED

MORRIS RADIAL DRILL

MODEL: MOR-SPEED
SERIAL NUMBER: G 1067

GENERAL SPECIFICATIONS

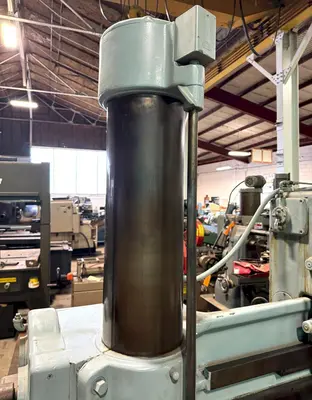

Diameter Of Column: 9"
Drills At Base To Center Of Circle Diameter: 96"
Maximum Distance Between Spindle and Base: 53"
Minimum Distance Between Spindle and Base: 15"
Distance Face Of Column To Spindle Center: 8-1/4"
Distance Center Of Column To Face Of Column: 7"
Spindle Traverse: 10"
Spindle Taper: No. 4 M.T.
Spindle Speeds: (9) 39 - 785 RPM
Feeds: (4) .003" - .020"
Working Surface Of Base: 30" x 53"

EQUIPPED WITH

5 HP Motor
Power Elevation

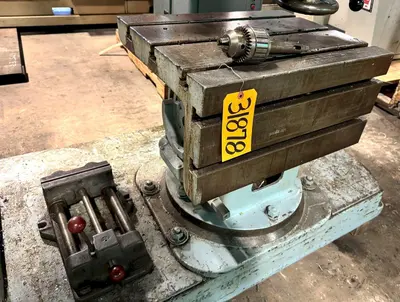

Universal Box Table: 24" x 18" x 23"H
Drill Vise
Jacobs Drill Chuck

Approximate Weight: 5800 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
