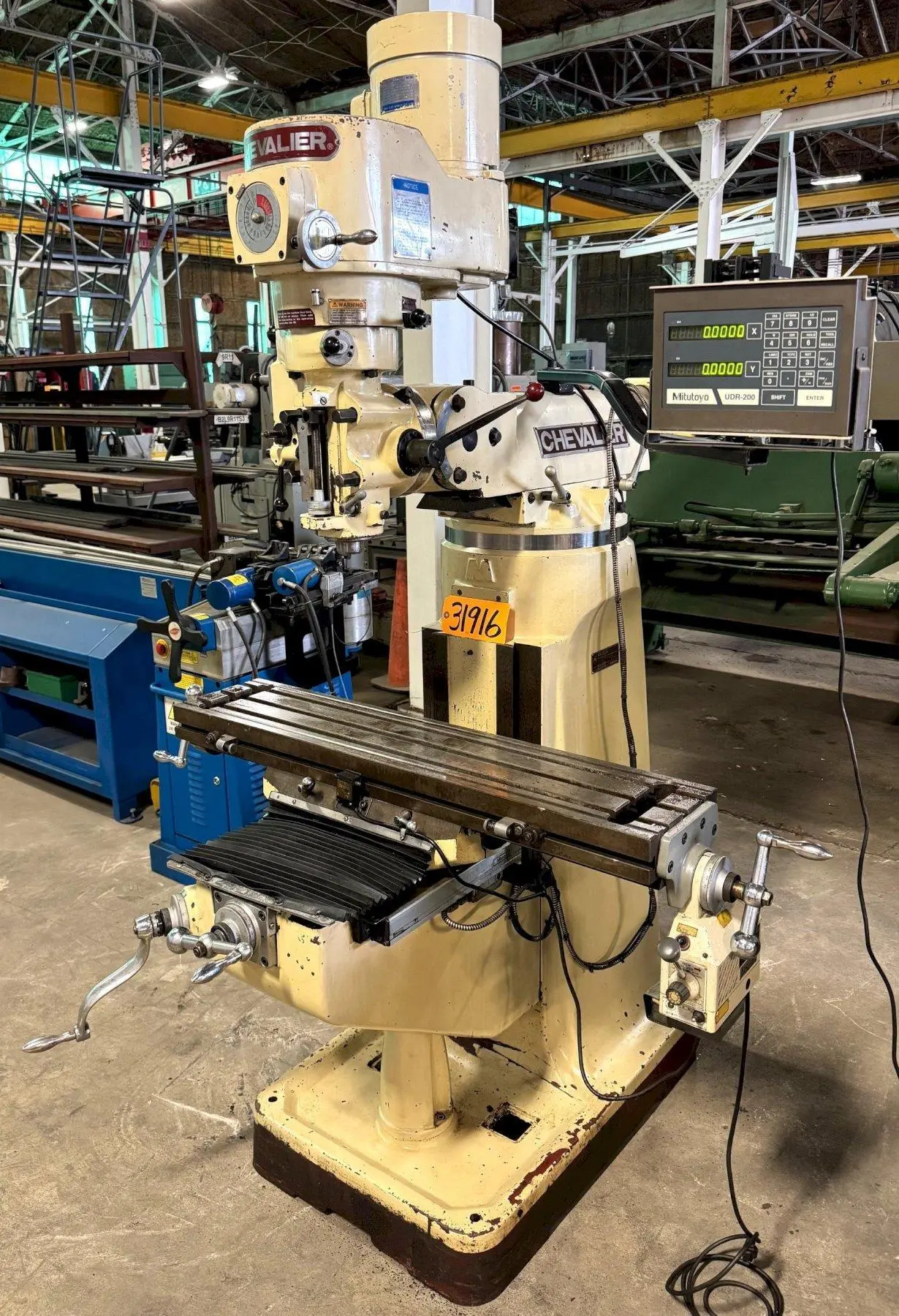

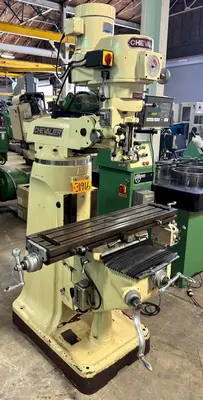

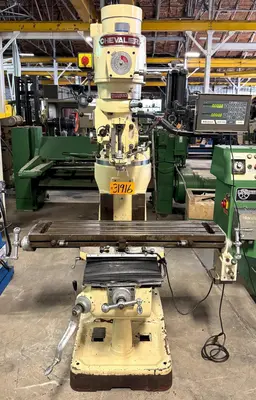

CHEVALIER VERTICAL MILLING MACHINE
MODEL: FM-3VS
SERIAL NUMBER: BM 843779
GENERAL SPECIFICATIONS

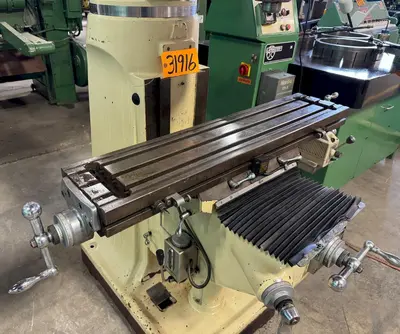

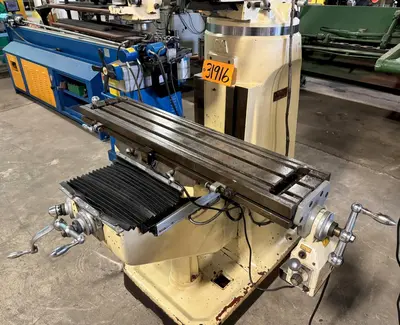

Table Size: 9" x 42"
Longitudinal Travel: 24"
Cross Travel: 12"
Vertical Knee Travel: 16"
Ram Travel: 12"
Turret Rotation: 360 Degrees

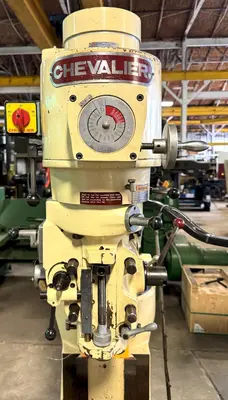

Spindle Speeds, Infinitely Variable: 60 to 4200 RPM
Spindle Feeds: (3) .0015", .003", .006"
Spindle Taper: R-8
Quill Travel: 5"
EQUIPPED WITH

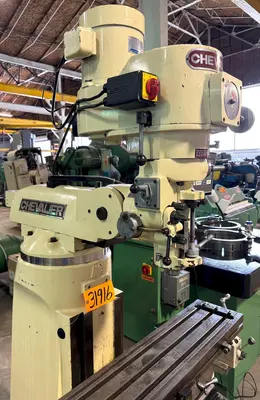

3 HP Spindle Motor, 230/60/3

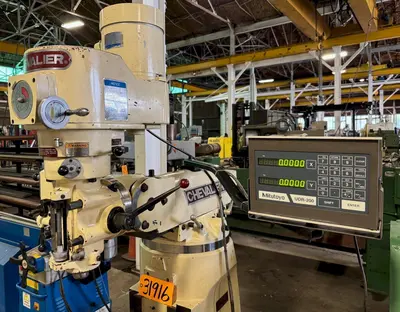

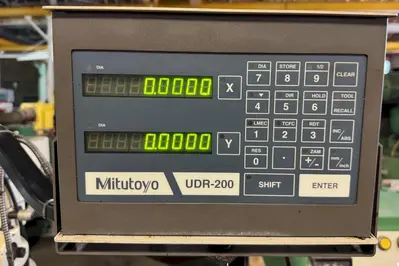

Mitutoyo UDR-200 Two-Axis Digital Readout

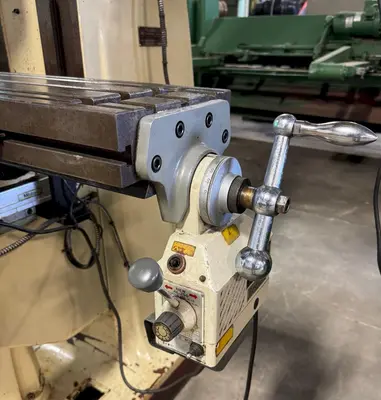

Bestline AL-250 X-Axis Power Feed
One-Shot Lubrication
Forward/Reverse Switch
Approximate Weight: 2400 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
