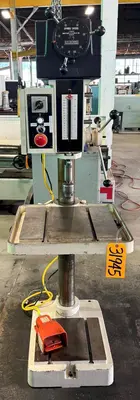

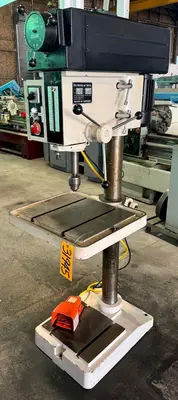

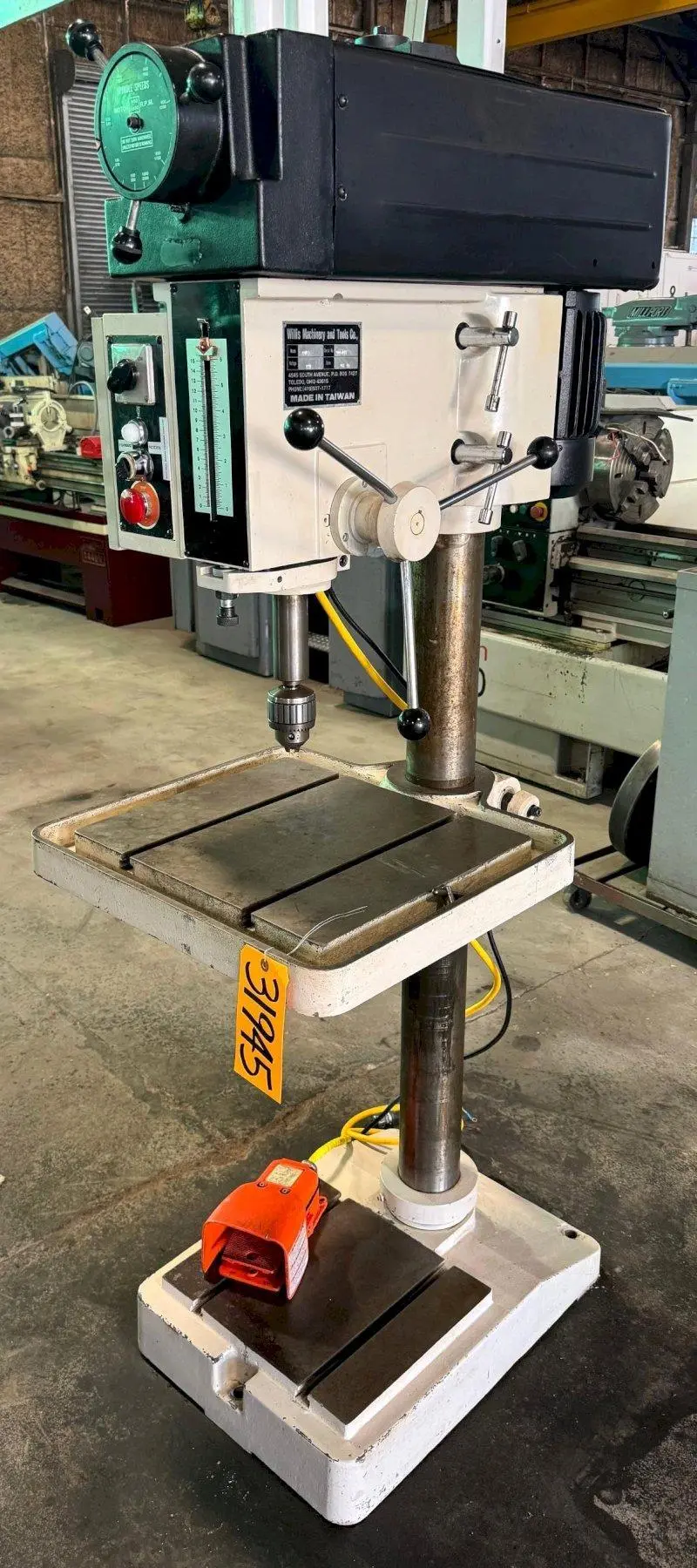

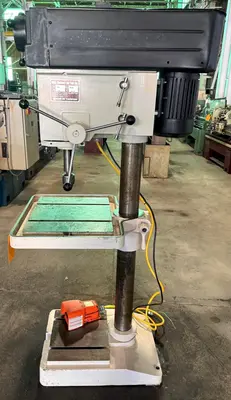

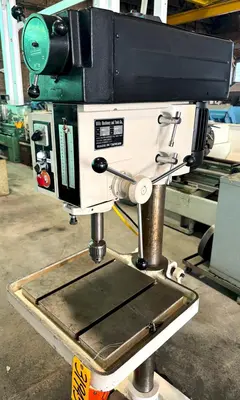

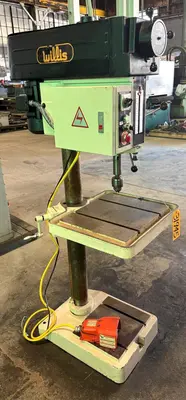

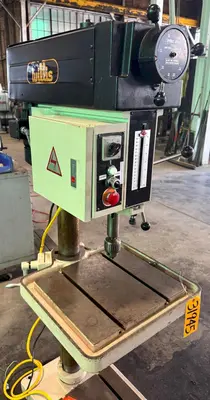

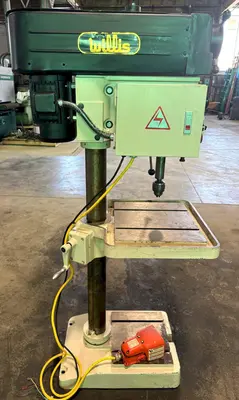

USED WILLIS 20 VS

WILLIS SINGLE SPINDLE DRILL

MODEL: 20VS

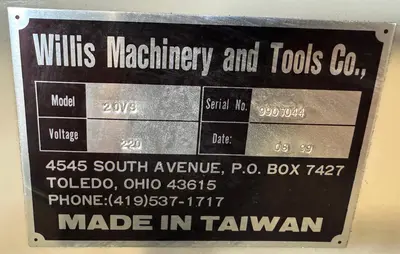

SERIAL NUMBER: 9907044

GENERAL SPECIFICATIONS

Floor Model
Drills To Center Of Circle: 20"
Drilling Capacity In Cast Iron: 1-3/8"
Drilling Depth, Manual Feed: 6-1/2"
Maximum Distance Spindle Nose To Table: 28-3/4"
Maximum Distance Spindle Nose To Machined Base: 39-1/4"
Spindle Taper: No. 3 M.T.

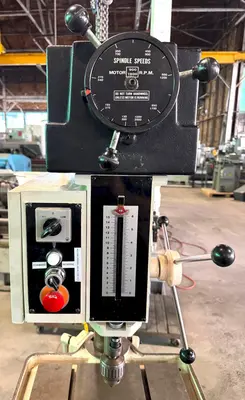

Spindle Speeds, Variable: 150 - 2000 RPM
Column Diameter: 4"
Table Size: 22" x 19-1/2" (2 T-Slots)
Vertical Travel Of Table: 19"
Vertical Travel Of Drill Head: 18-1/2"
Quill Diameter: 3"

EQUIPPED WITH

2 HP Two Speed Motor, 220/60/3

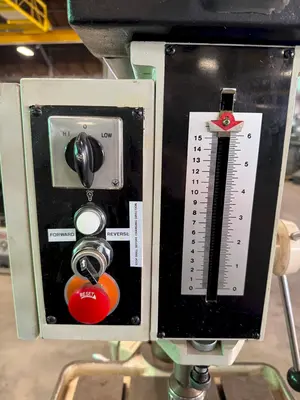

High/Low Speed Switch
Forward/Reverse Switch
Emergency Stop Button
Positive Depth Control
Table Raising Mechanism
Electric Footswitch Operation

Approximate Weight: 650 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
