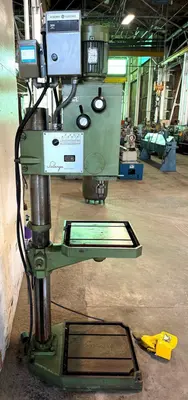

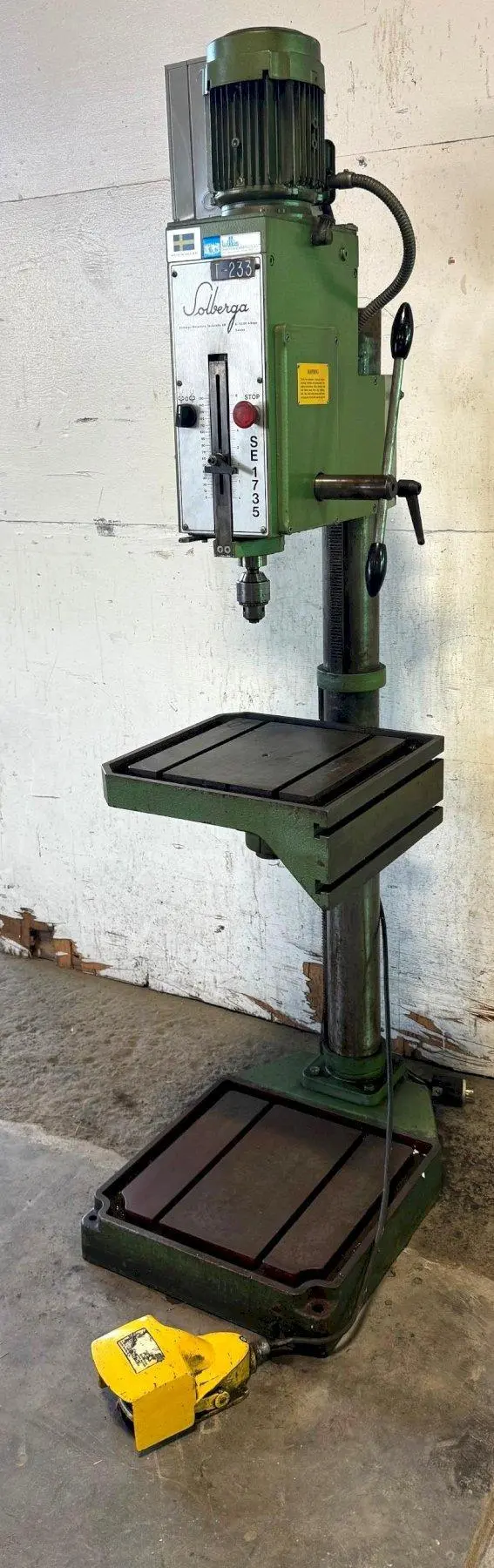

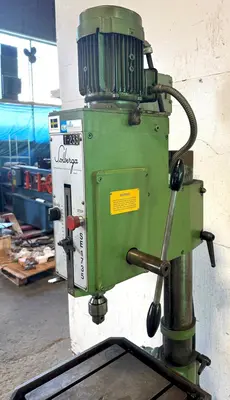

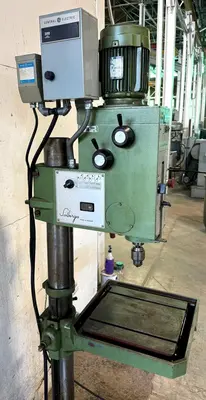

USED SOLBERGA SE1735

SOLBERGA SINGLE SPINDLE DRILL

MODEL: SE1735
SERIAL NUMBER: 328492

GENERAL SPECIFICATIONS

Gear Drive
Hand Feed
Drills To Center Of Circle: 24"
Drilling Capacity In Cast Iron: 1-1/4"
Drilling Capacity In Mild Steel: 1"
Spindle Travel: 6"
Spindle Taper: No. 3 M.T.
Spindle Speeds: (6) 60 - 1430 RPM
Column Diameter: 4-1/8"
Overall Table Size: 17-3/4" x 17-3/4"
Working Surface Of Table: 14" x 13-3/4"

EQUIPPED WITH

1.8/1.3 KW Two-Speed Motor, 220/60/3
Electric Foot Switch Operation
Forward/Reverse Switch
High/Low Switch

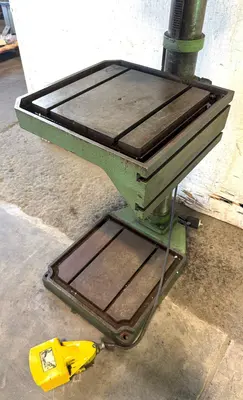

Table Raising Mechanism

Approximate Weight: 450 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
