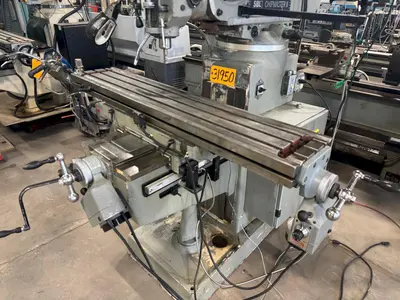

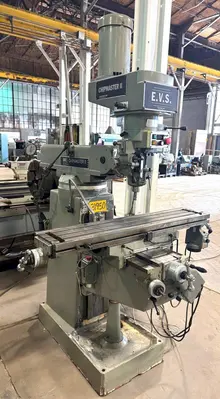

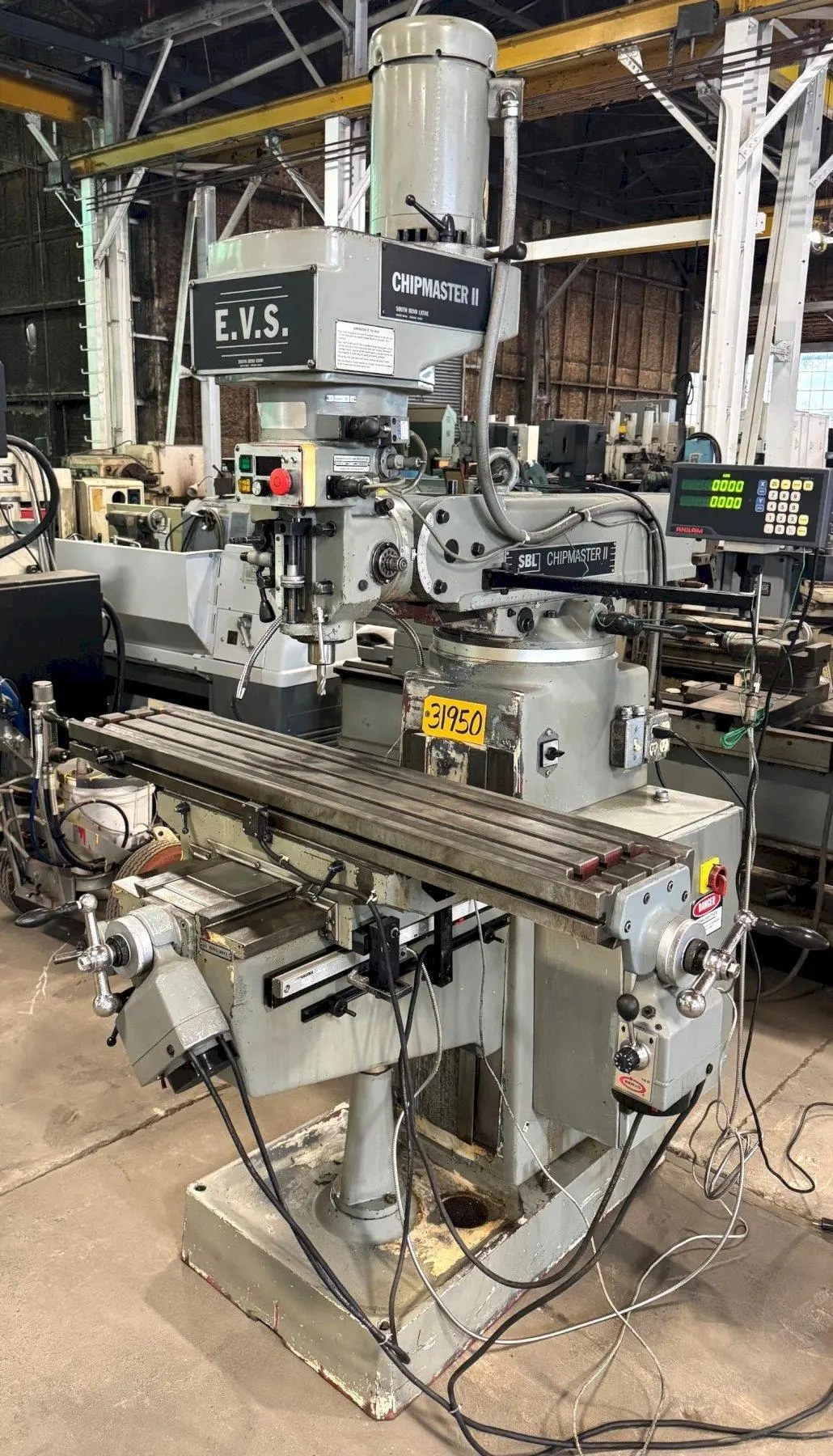

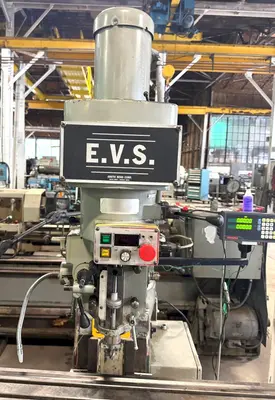

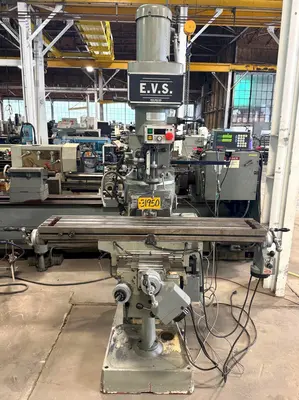

SOUTH BEND VERTICAL MILL
MODEL: Chipmaster II
SERIAL NUMBER: SE37301
GENERAL SPECIFICATIONS

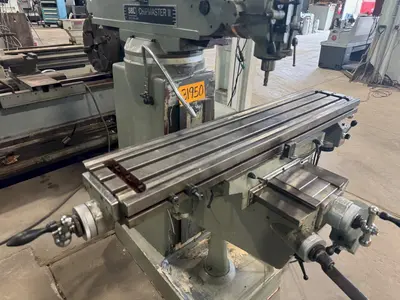

Table Size: 10" x 50"
Longitudinal Travel, Manual: 33"
Longitudinal Travel, Power: 30"
Vertical Knee Travel: 16"
Cross Travel: 16"
Ram Travel: 22"
Spindle Taper: R-8
Spindle Speeds, Infinitely Variable: 55 - 6000 RPM
Power Feed: (3) .0015", .003", .006"
EQUIPPED WITH
5 HP Spindle Motor

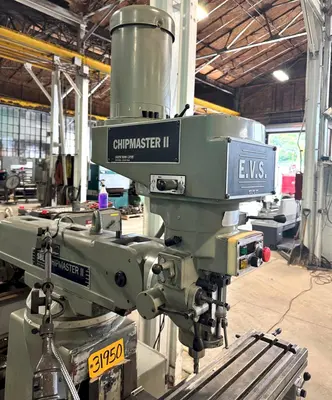

Electronic Variable Speed Drive w/Digital LED Display

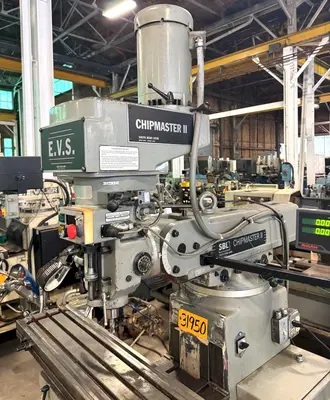

(New) Newall NMS300 Two Axis Digital Readout

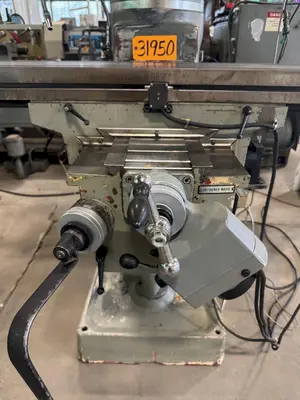

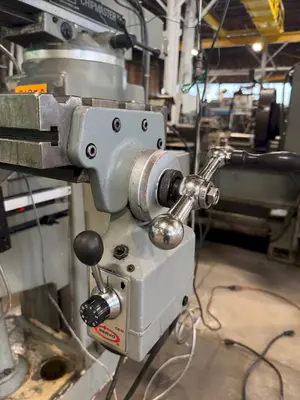

Servo Type 150 Power Feeds On X & Y Axis
One-Shot Lubrication
Approximate Weight: 3300 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
