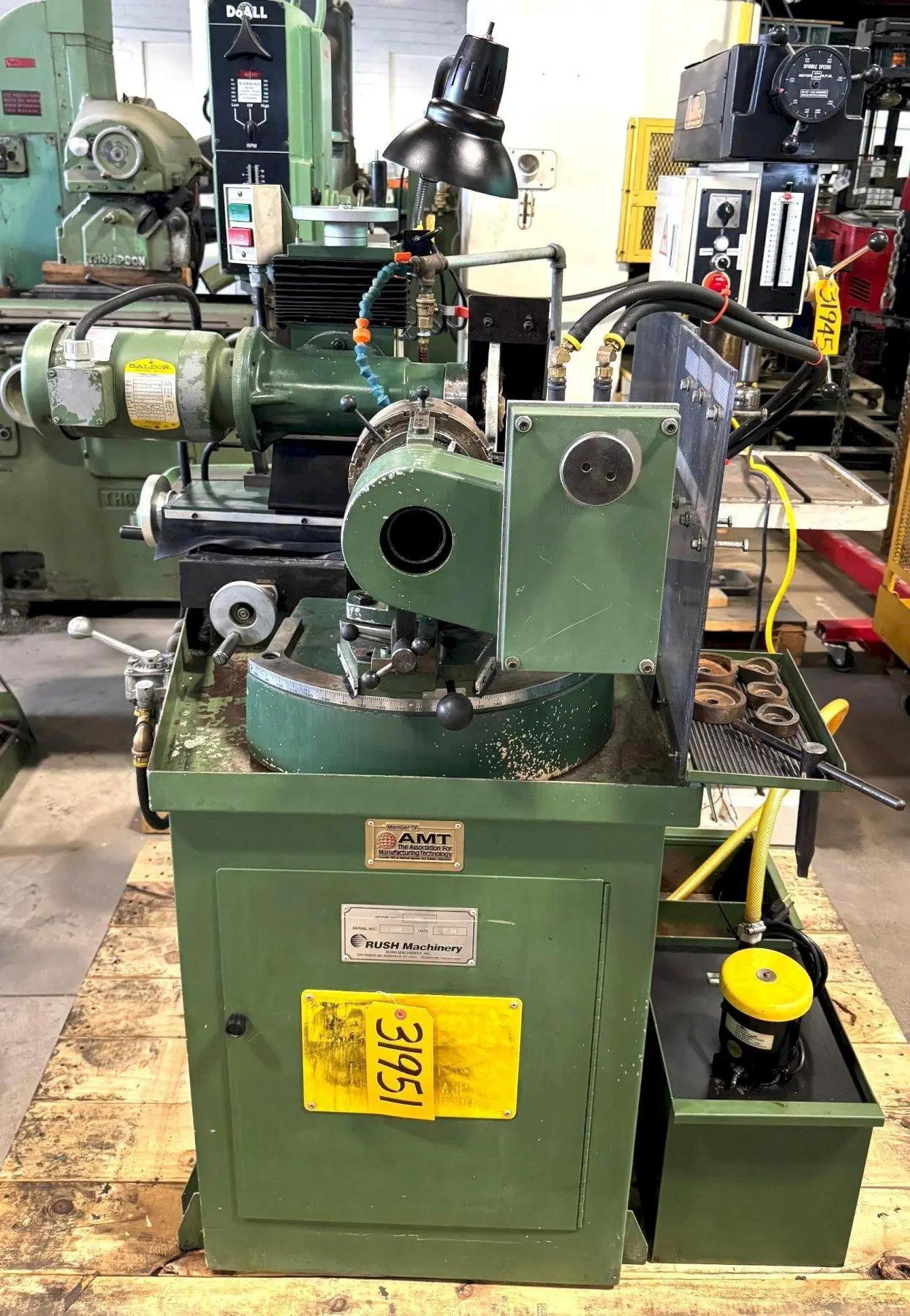

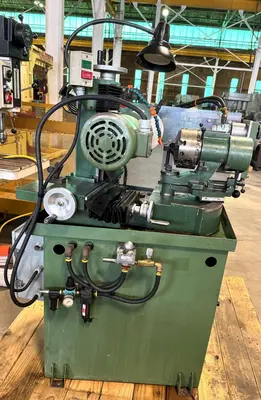

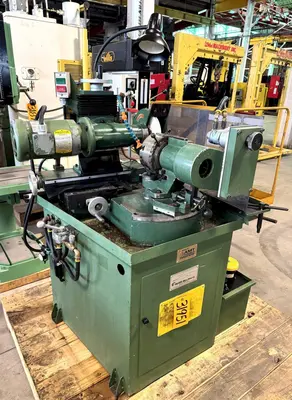

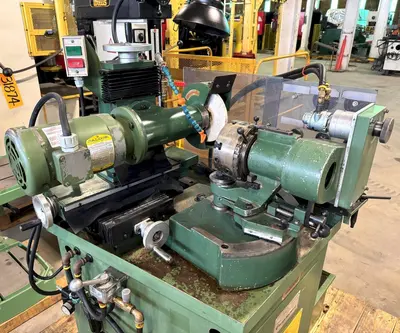

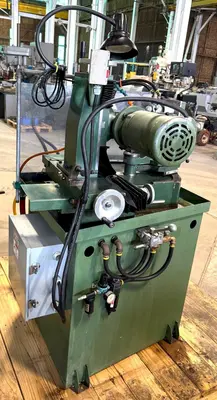

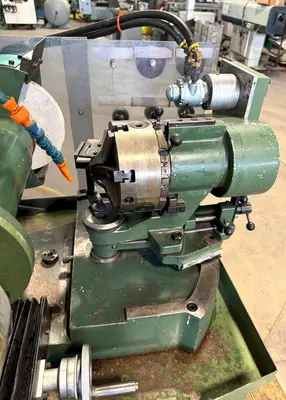

RUSH DRILL GRINDER
MODEL: 252
SERIAL NUMBER: 1831 Year: 2003
GENERAL SPECIFICATIONS
"The model 252 can grind odd-fluted tools (1, 3, & 7) as well as even-fluted tools (2, 4, 6 & 8). This is achieved with the use of a unique dual-cam workhead. The inner can drum is rotating at a 2:1 gear ratio to grind even-fluted tools. The outer drum is turning at 1:1 ratio for odd-fluted tools."
Capacity: 3/32" to 2" Diameter, Straight or Taper Shank
Drill Point Angles: 40 to 180+ Degrees
EQUIPPED WITH

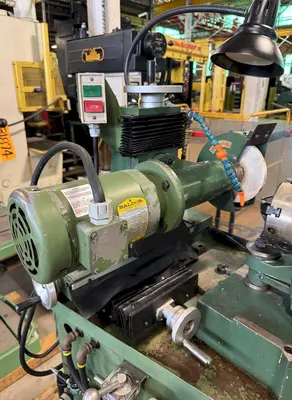

1/2 HP Motor
Self-Centering Six-Jaw Chuck

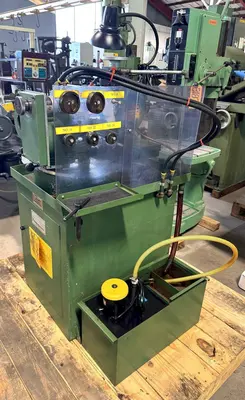

Coolant System
Approximate Weight: 600 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
