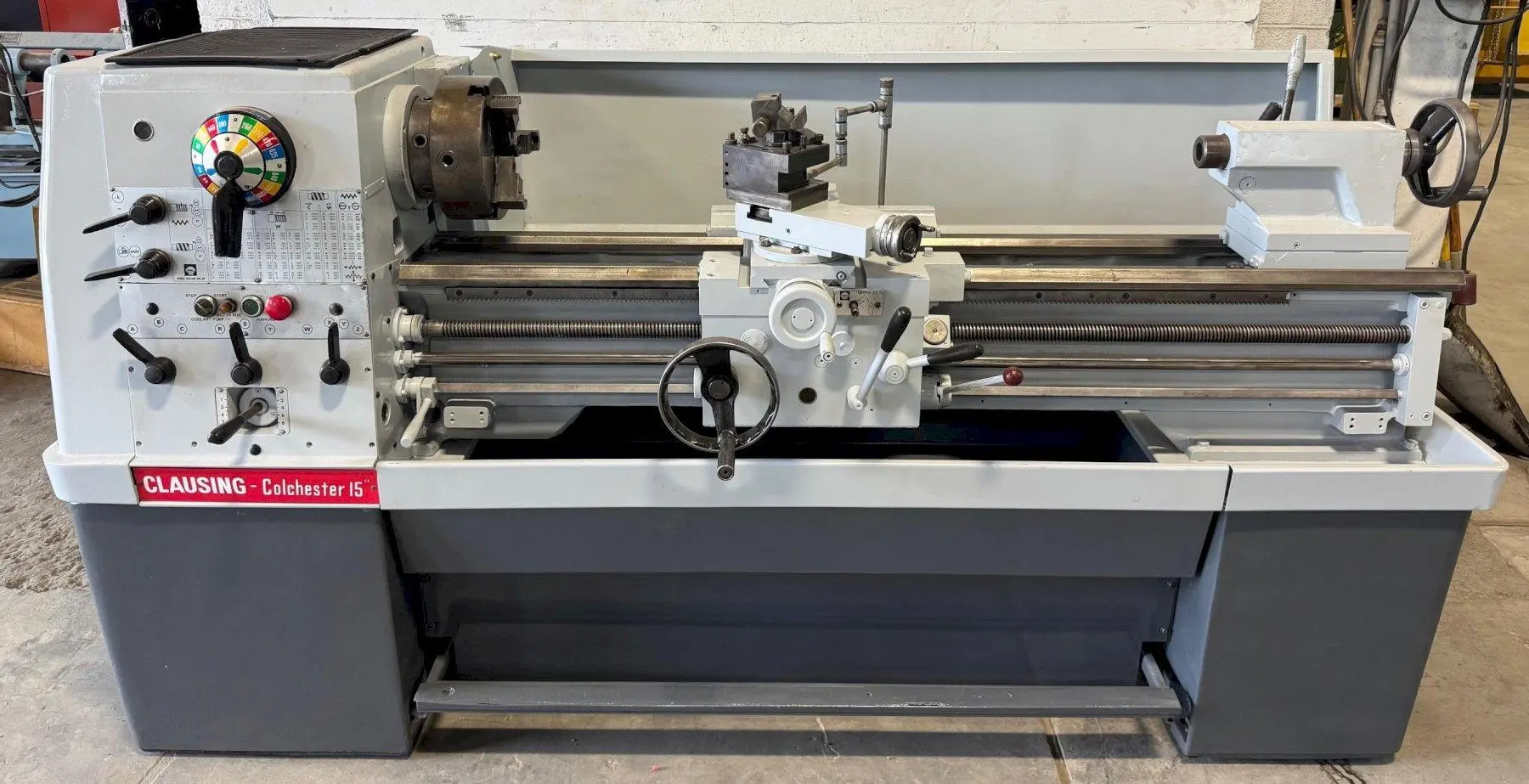

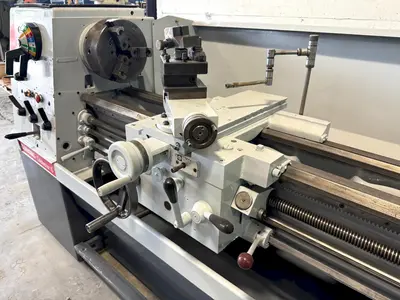

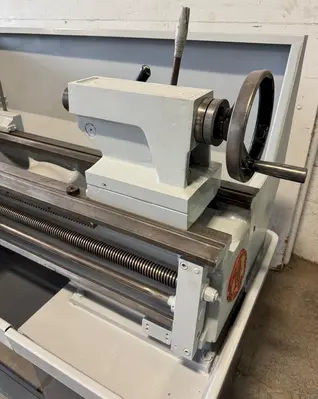

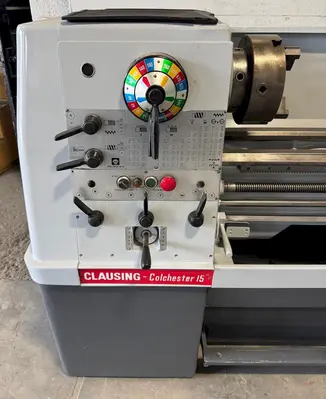

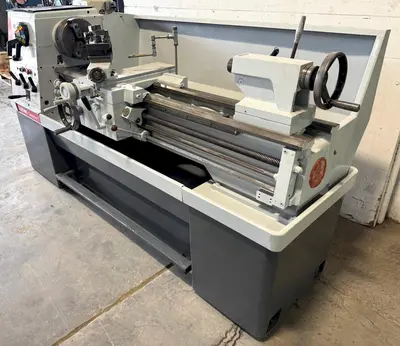

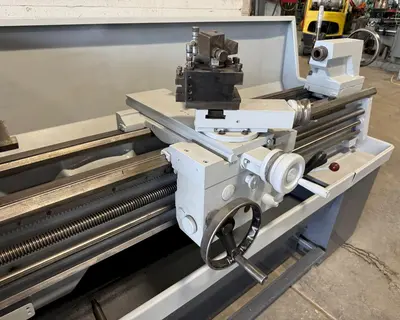

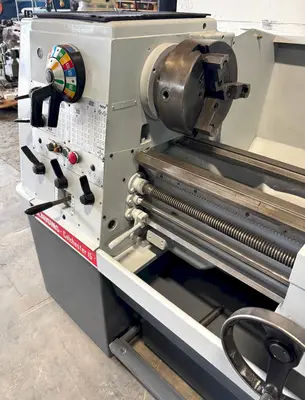

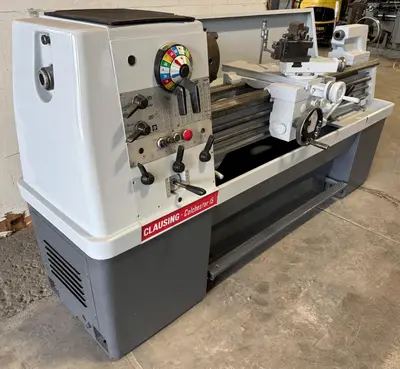

CLAUSING COLCHESTER ENGINE LATHE
MODEL: 15"
SERIAL NUMBER: 6/0015/19182
GENERAL SPECIFICATIONS
Swing Over Bed and Saddle Wings: 15-1/4"
Swing Over Cross Slide: 9-1/2"
Bar Capacity Thru Spindle: 2-1/8"
Distance Between Centers: 50"
Spindle Nose: 6" D1 Camlock
Hole Through Spindle: 2-3/16"
Spindle Speeds: (16) 25 to 2000 RPM
Threads, U.S.: (45) 2 to 72
Threads, Metric: (39) .2 to 14
Longitudinal Feeds: .0015" to .040"
Cross Feeds: .00075" to .020"
Lead Screw, Diameter: 1-1/4"-4 Acme
Cross Slide Travel: 6-1/8"
EQUIPPED WITH
7-1/2 HP Main Motor, 230/460/60/3
Inch/Metric Threading
10" 3-Jaw Chuck
Thread Dial
Hard Ways
Removable Chip Pan
Full Splash Guard
Coolant System
Cleaned, Painted and Cycled
Approximate Weight: 3200 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
