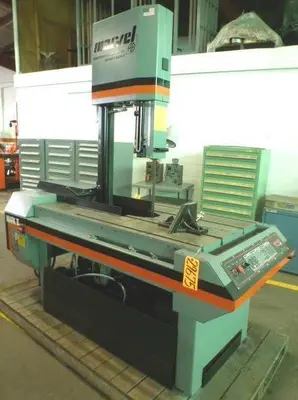

USED MARVEL SERIES 8 MARK II

MARVEL TILT FRAME VERTICAL BAND SAW

MODEL: Series 8 Mark II
SERIAL NUMBER: 827810*
*In the process of being reconditioned.

GENERAL SPECIFICATIONS

High Column
Tilting Column For Straight and Miter Cutting
Horizontal Capacity: 18"
Vertical Capacity: 28"
Vertical Capacity at 45 Degrees: 17"
Blade Size: 14'6" x 1" x .035"
Blade Speed Range: 50 to 450 FPM
Feed Force: 0 to 140 Lbs.
Wheel Diameter: 18"
Table Height: 34"
Working Surface Of Table: 33" x 24"
Maximum Vise Opening: 21"

EQUIPPED WITH

2 HP Drive Motor
(New) Lower Band Wheel, New Upper Band Wheel, Pinion and Bearings, Belts, Scales, Wear Strips, Work Light, Chip Brush
Quick-Acting Vise
Power Feed
Coolant System Including Pump and Complete Set Of Pans
Work Light

2026 New Price: $42,080.00

Approximate Weight: 2600 Lbs.
Approximate Dimensions:  91" x 45" x 86" High

F.O.B. Cincinnati, Ohio 45223

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
