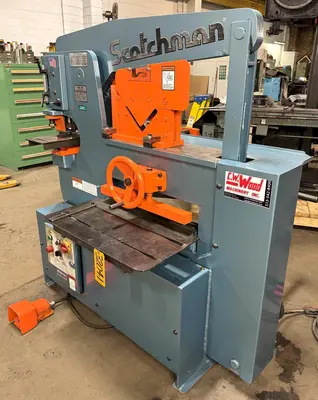

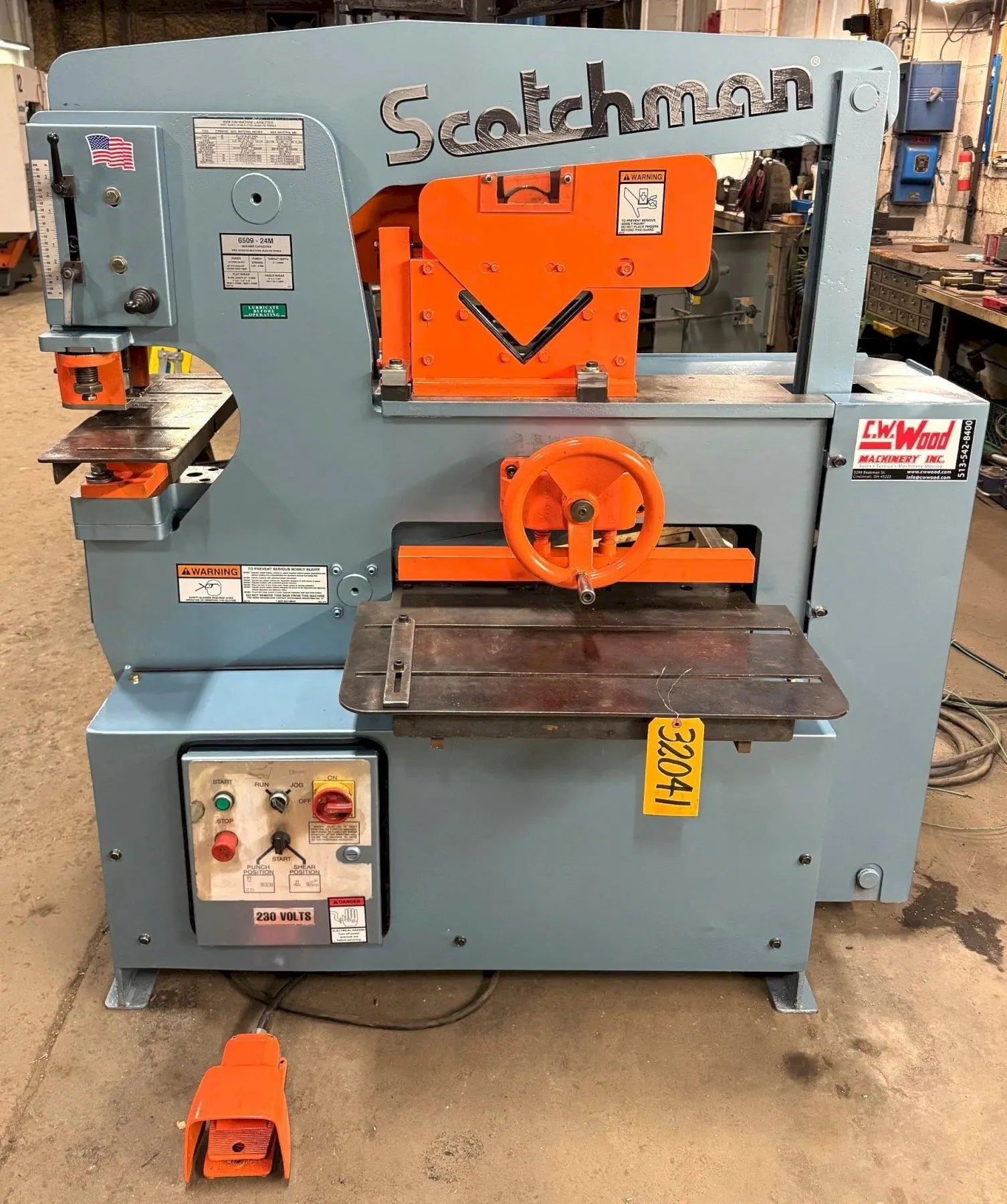

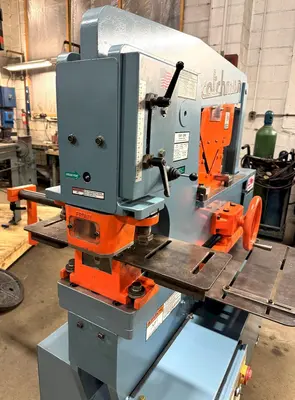

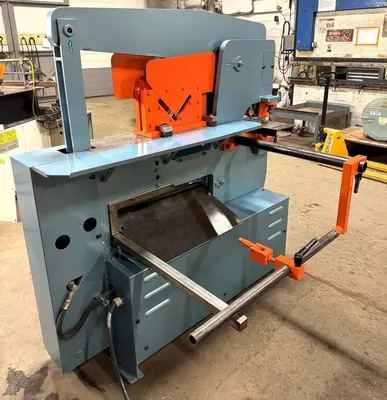

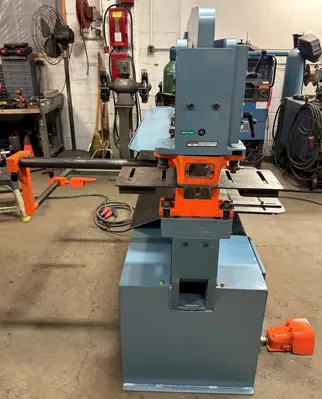

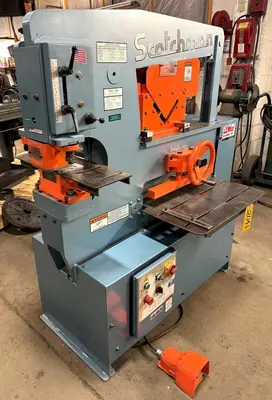

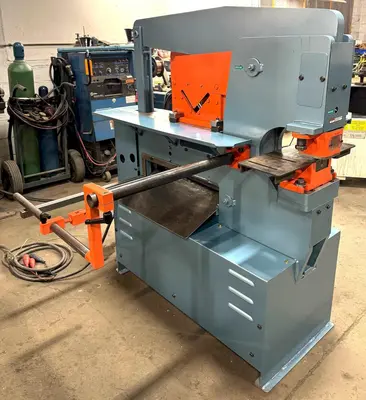

SCOTCHMAN HYDRAULIC IRONWORKER
GENERAL SPECIFICATIONS
MODEL: 6509
SERIAL NUMBER: 5658FF297*
*Reconditioned January 2026
GENERAL SPECIFICATIONS
Capacity: 65 Ton
Punch: 1-1/16 In 3/4"
Throat Depth: 9"
Flat Bar Shear: 24"
1" x 6"
3/4" x 8"
1/2" x 12"
3/16" x 24"
Angle Shear, 90 Degrees: 6" x 6" x 3/8", 5" x 5" x 1/2"
Angle Shear, Miter Angle 45 Degrees: 4" x 4" x 1/2"
Strokes Per Minute, Light Material: 50
Max. Capacity: 12
EQUIPPED WITH
5 HP Motor
(New) Round Punch & Die Package: (12) Punches & Dies, 16th Sizes

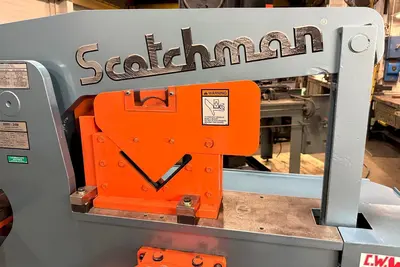

Angle Shear

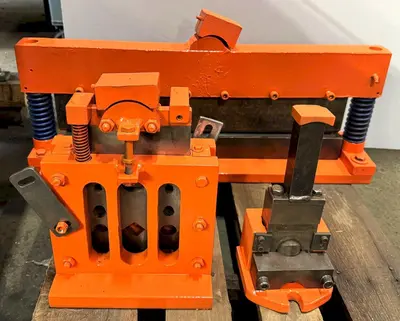

24" Brake
Rod Shear
Pipe Notcher

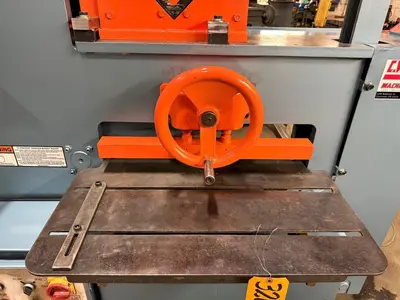

Oversize Shear Table
Tool Table Work Area For Mounting Optional Tooling
Remote Foot Pedal Operation
Adjustable Stripper
Adjustable Stroke Control
2026 Price As Equipped: $39,210.00
Approximate Weight: 2750 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
