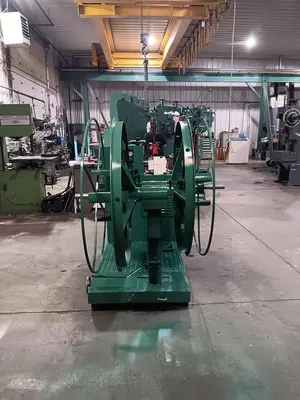

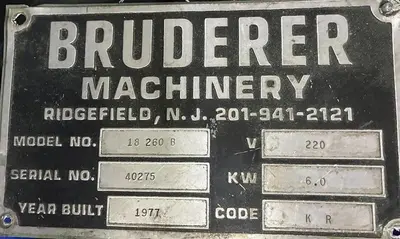

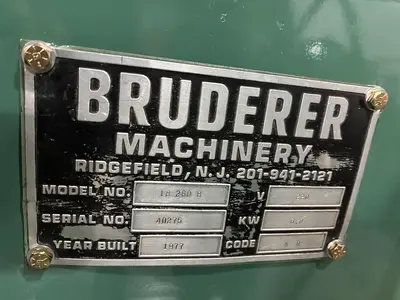

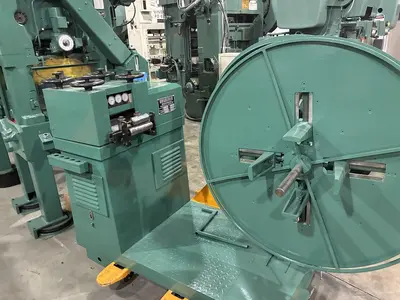

USED BRUDERER 18-260B
Overview

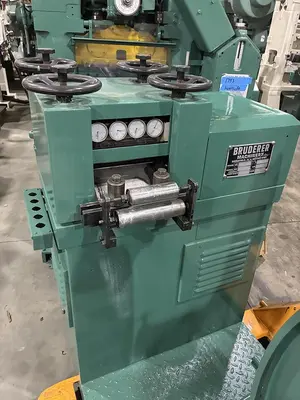

LEVELER - MODEL 18 260B
MAX MATERIAL WIDTH 260 MM
MATERIAL THICKNESS RANGE 0.20 TO 4.00 MM
SPEED 0-60 M/MIN
NO OF STRAIGHTENING ROLLS 19
DIAMETER OF ROLLS 18 MM
READING OF MACHINE ADJUSTMENT 0.01 MM
MAX VERTICAL DISTANCE BETWEEN ROLLS 8MM
NORMALLY ATTAINABLE MATERIAL FLATNESS
WITHIN THE MATERIAL THICKNESS TOLERANCE 0.02 MM

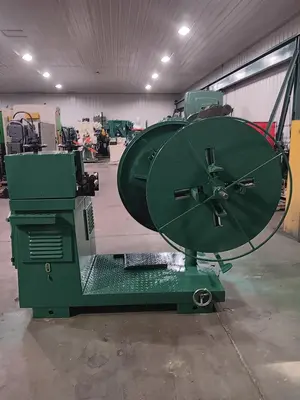

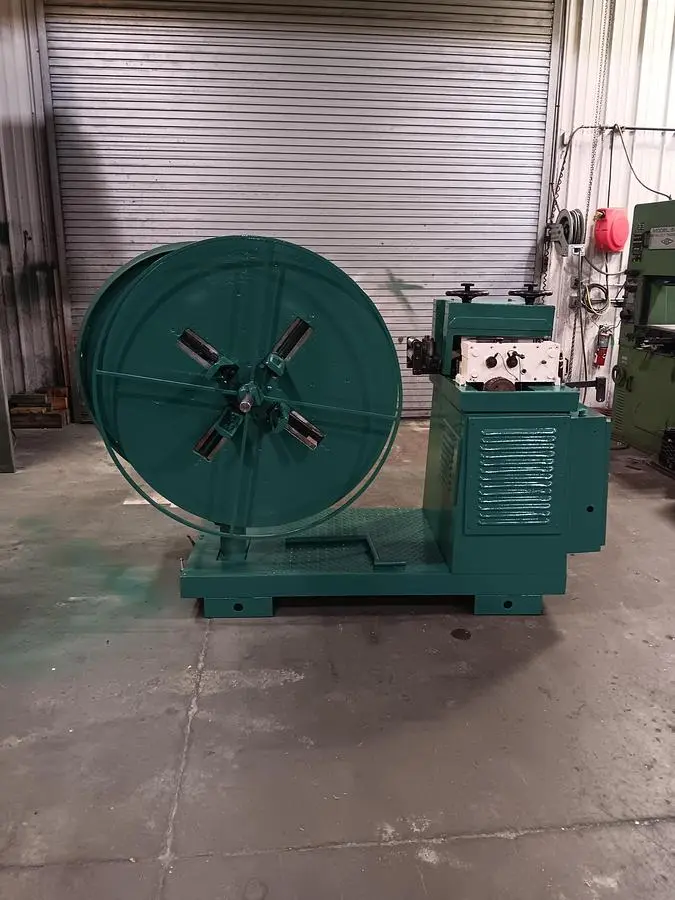

BASE WITH DOUBLE UNCOILER
1500 LBS EACH SIDE
BASE TO ASSURE ALIGNMENT BETWEEN REEL & LEVELER
DRAG BRAKE
CONTROL FEATURES:
NEW 5 HP INVERTER DUTY MOTOR
NEW E510 10 HP VFD DRIVE (VOLTAGE REQUIRED AT ORDER)
NEW CONTROL - SELECTOR SWITCHES, PUSH BUTTONS, WIRING
BANNER SONIC LOOP CONTROL WITH STAND
REMOVE HEAD, POLISH, LEVEL, & REMOVE ROLL IF NEEDED - Work done with Bruderer Tech.
TERMS: 50% WITH ORDER, BALANCE PRIOR TO SHIPMENT
F.O.B RINGWOOD, NJ
LEAD TIME 4-5 WEEKS
WARRANTY: 1 YEAR ON CONTROLS, VFD, & MOTOR
