USED BRUDERER BSTA 30II

HUNSTVILLE BRUDERER, INSPECTED AND RAN THE PRESS TO ASSURE MACHINE IS IN PRODUCTION READY CONDITION.

Specifications:

30 ton Capacity
.5"-1.5" Stroke
9.17" Shut Height over Bed
2" Adjustment
20.86" LR x 20.86 FB Bed Area
20.86" LR x 14.17 FB Slide Area
100-1500 VSPM
Voltage 440V

Standard Equipment and Features

T-Slotted Bolster Plate
Cylindrical Post Guides
Standard Bruderer Press Control
Hydrostatic Vari-Speed Drive
Air Clutch and Brake with Selector Controls
Bruderer Feeder Model#: BBV202-120 - Mounted on Right Side of Press (Right to Left)
Top Driven Design
Bruderer Controls w Console

Wenco : Warranty/Reconditioning.

Press will cleaned & painted in Paint Booth (2 Part Epoxy: Bruderer Green or Tan)
All Press features & functions will be in good running order. Mechanically & Electrically
Machine inspect report by a Bruderer Service Tech.
If any parts are required we only use Bruderer/OEM Parts.
Video of the Press running prior to shipment.
Wenco has been a long standing member of MDNA, NFIB, NJBIA

Options:

Wintriss Smart PackPro - DSI-2 Dies Protection & Cams ...... To be quoted if needed
Move Feed from Right side to left side: $ 6500

Start-Up Assistance - After press is put back on legs, powered & air supplied to press, two service techs will provide complete operating & maintenance instructions. Includes Stroke change procedure, feed adjustment, Ram Adjustment. TBD

Terms:

30% with Order, Balance prior to shipment.
F.O.B. Ringwood, NJ
Lead Time: Stock (Wintriss Options will extend lead time)

Notes:

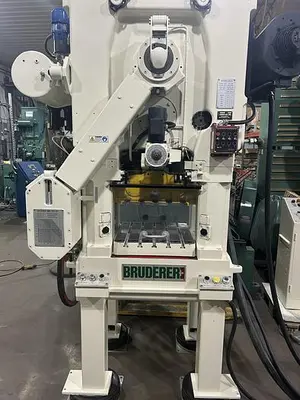

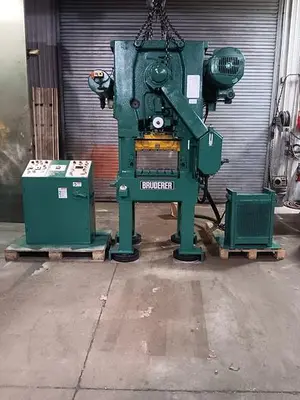

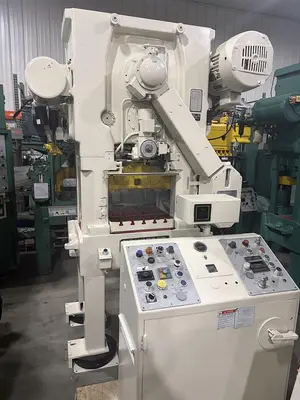

Pictures are of two recent Machines. Tan & Green (you choose color)
Note Feed of this press is mounted on Right side
