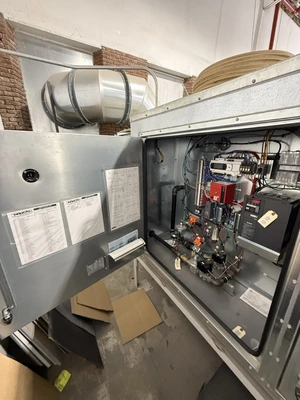

Gas Train/Burner Specs:
– CFM: 16000
– Temp rise F: 90
– Max temp rise F: 110
– Max disch temp F: 160
– Max BTU/HR Max: 1,584,000
– Min BTU: 63,360
– Gas pressure: 2# – 5# @ 1584 CFH
– Burner manifold pressure: 3.9″ w.c. for specified BTU and burner
– Burner length in feed: 3 with 0 Tees
– Burner type: Midco HMA-2A
– Profile: 44″ W x 13″ H
– 2 – OA dmprs @ 44″ W x 8.5″ H
– Voltage: 480V, 3 Ph, 60Hz
