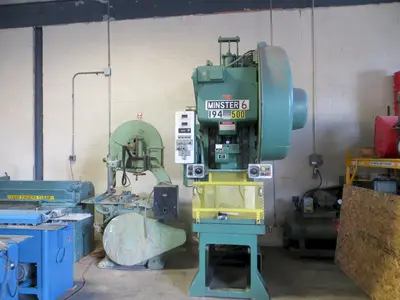

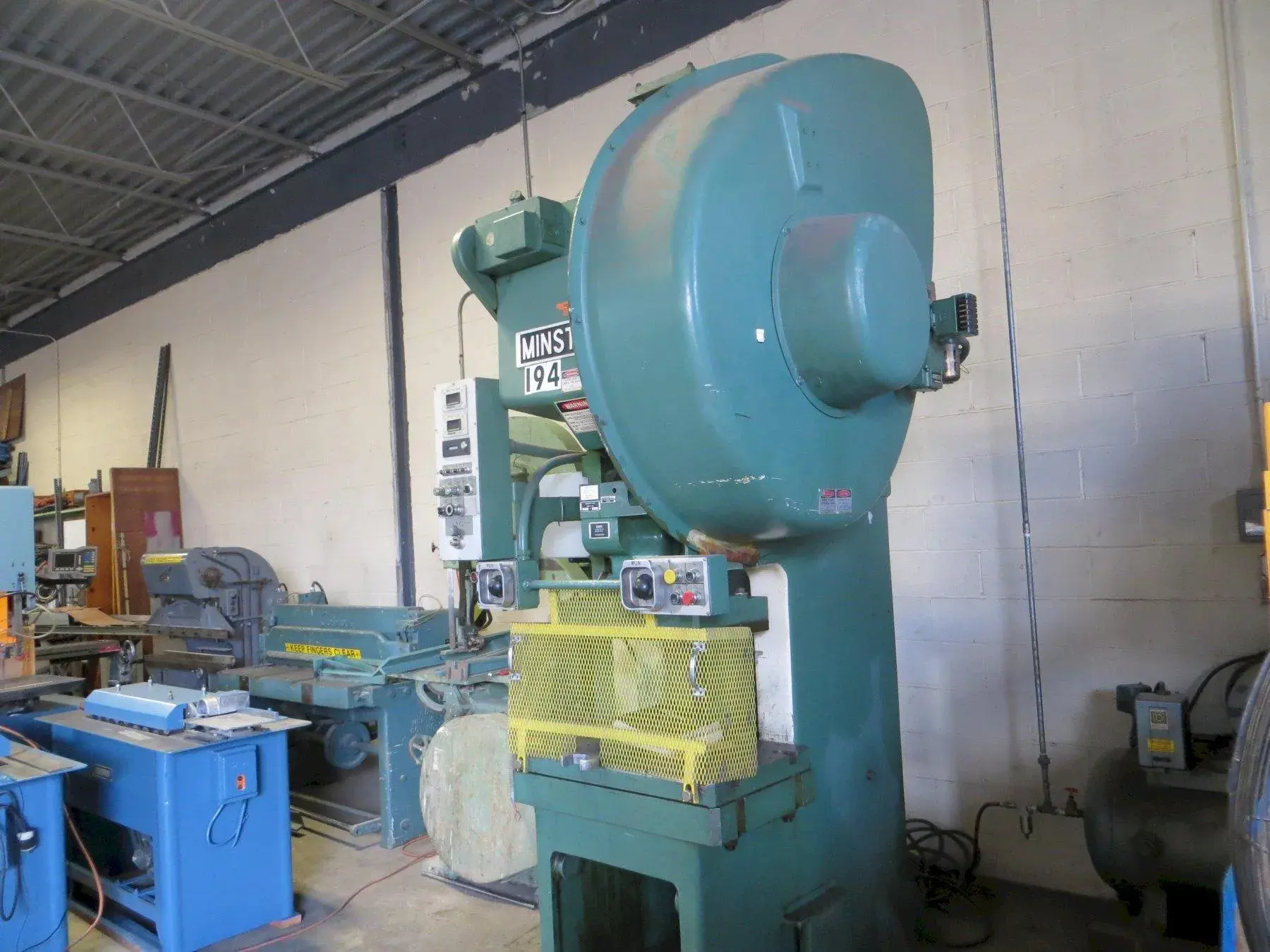

60 TON MINSTER MODEL 6SS-FB GAP FRAME PRESS
New 1991
Capacity ............................................. 60 Ton
Stroke ................................................. 4 in.
Speed ................................................. 90 - 180 SPM Variable
Shut Height ..................................... 16 in.
Slide Adjustment ........................... 2.75 in
Bed Area ........................................... 32" LR x 21" FB
Bolster Thickness .......................... 2.5 in.
Slide Area ........................................ 21" LR x 14" FB
Opening in Bed ............................ 18" LR x 14" FB
Throat Depth ................................. 11 in.
Width of Opening in Back ........ 15 in.
Shank hole diameter ................... 2 in.
Electrics: 480 Volt, 3 Phase
Approx. Dimensions: 66" x 70" x 128" (l x w x h)
Approx. Weight: 13,000 lbs.
Equipped with:
Air Clutch & Brake
Variable Speed Drive
Air Counter Balance
Inch / Single / Continuous
Digital SPM Indicator
Press Mounted Dual Palm Buttons w/ E-Stop & Top Stop
Recirculating Lubrication System
Ram Equipped for Knock-Out
Drill & Tap Pattern in Bolster
Stroke Counter
