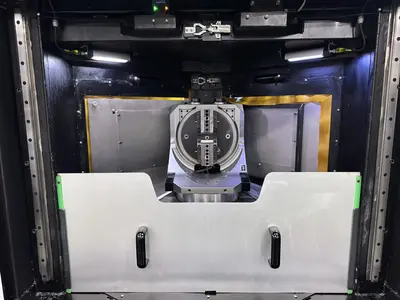

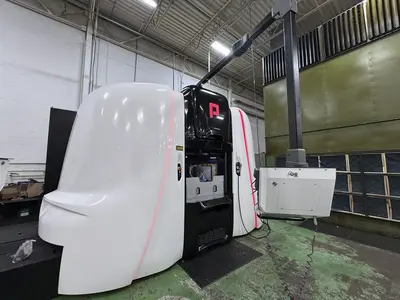

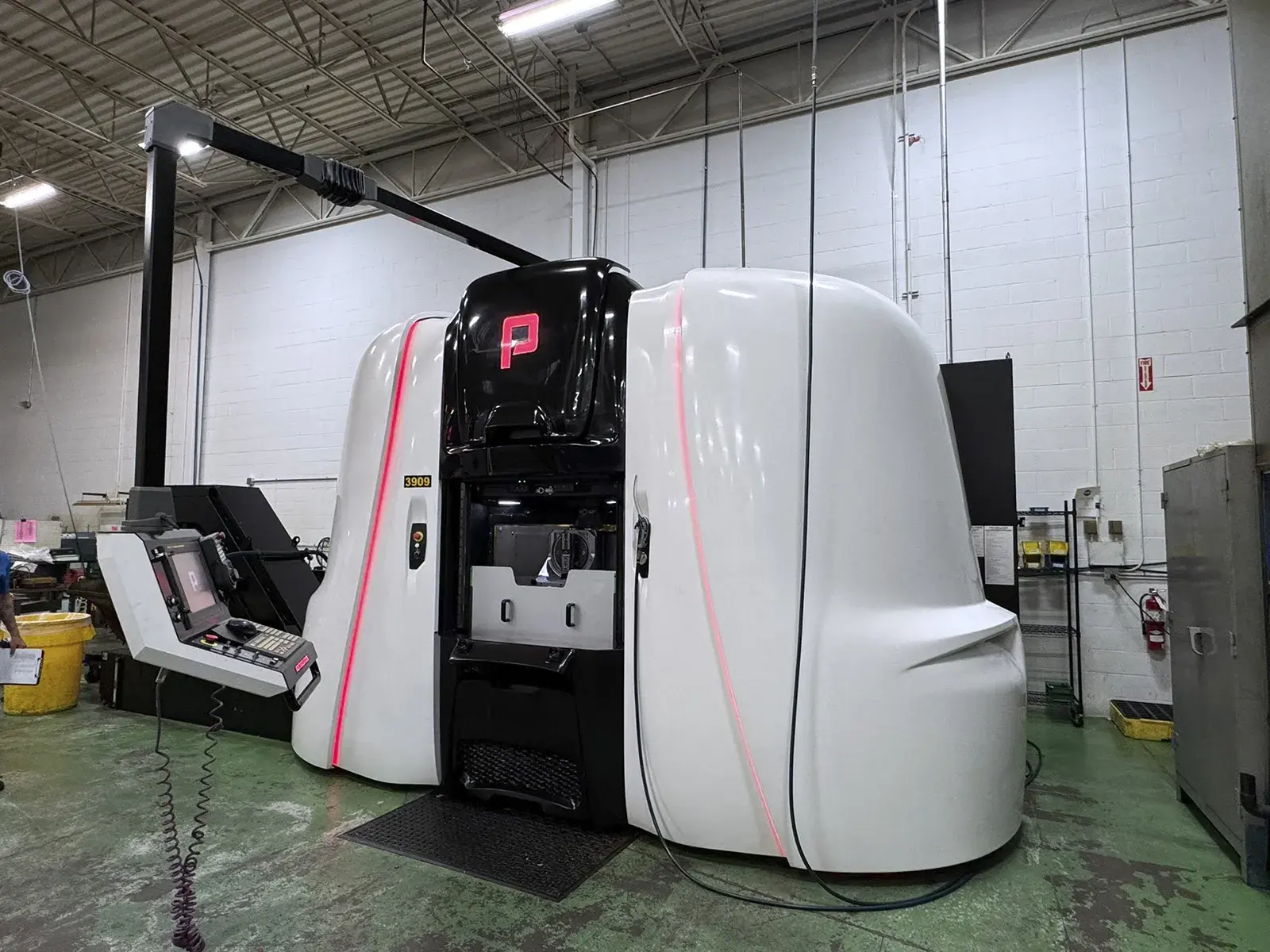

USED 2020 PORTA SOLUTIONS MULTICENTER 3 SPINDLE

Full 5-Axis Capability| 3 spindle for simultaneous production| Low Hours
Used 2020 Porta Multicenter 3S 5-axis machining center featuring Fanuc Panel i control. Delivers high precision, flexibility, and efficiency for complex multi-axis machining applications.

Number of Tables: 4
Max. Rotation Diameter: 18.9”
Rotation Time for 90°: 0.9 seconds
Centralized Hydraulic Attachments: 2

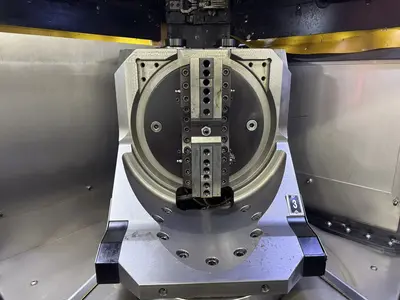

Clamping System: Hydraulic
Number of Modules: 3
Tool attachment: CAT 40
Axis X stroke: 9.84”
Axis Y stroke: 12.8”
Axis Z stroke: 7.87”
Max. spindle rotation speed: 6,000 rpm
spindle power: 15HP
X, Y axis positioning precision: ±0.0125
Z axis positioning precision: ±0.02
X, Y axis repeatability precision: ±0.005
Z axis repeatability precision: ±0.005
Number of tool change: 3
Positions per tool changer: 12+12+12
Max. tool weight: 17.64 lbs
Max Tool Diameter: 3.15”
Max Tool Length: 9.84”
Max tool diameter (with empty next positions): 4.72”
Tool Change Time: 3.4 seconds (with brake motor)

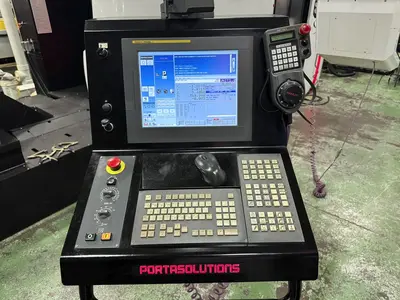

Fanuc Panel i Control
Tool Life Counter (Software counters allowing automatic tool change in the working cycle when the tool has reached its previously pre-set programmed limit Quantity: 3)
Portable Teach Pedant
Safety Barrier
Teleservice
Central Lubrication System
  Swarf Conveyor System composed of belt and coolant tank
