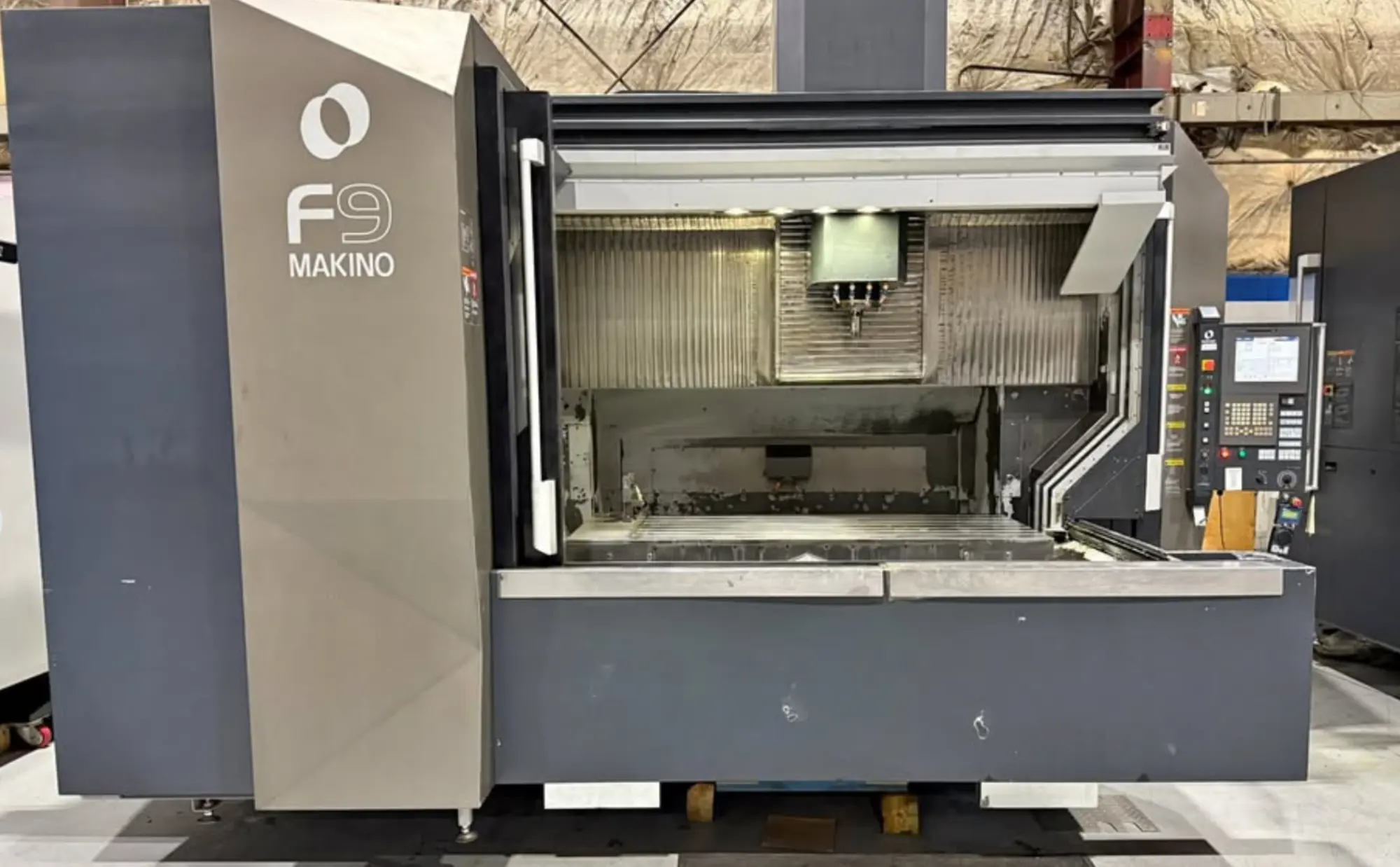

Used Vertical Machining Center with 72.8"x31.5" table, 20,000 rpm spindle, 48-tool changer, and Fanuc 31i control. Includes chip conveyor, spindle chiller, and high-speed features.
| X | 63" | 1,600.2 mm |
| Y | 31.5" | 800.1 mm |
| Z | 25.6" | 650.24 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 30 | 30 |
| Taper | HSK-63 | HSK-63 |
| Table-W | 800 mm | 31.496" |
| Table-L | 1,850 mm | 72.835" |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 170" x 122" x 141" | 170" x 122" x 141" |
| Weight | 37,500 pounds | 37,500 pounds |
Table Size: 72.8" x 31.5"
Table Capacity: 5,510 pounds
X-Axis Travel: 63"
Y-Axis Travel: 31.5"
Z-Axis Travel: 25.6"
Rapid Traverse Rate (X/Y/Z): 945 ipm
Spindle Taper: HSK-63
Spindle Speed: 20,000 rpm
Main Motor: 40 hp
Tool Changer Capacity: 48 Stations
Machine Dimensions: 170" x 122" x 141"
Machine Weight: 37,500 pounds
- Professional 5 CNC Control (Fanuc 31i)
- Chip Conveyor
- Coolant Tank & Pump
- Blum ATLM Laser Type
- Super GI.4
- Spindle Chiller
- Air Dryer
- High Speed Skip
- Mist Collector
- Data Center B 400MB
- Heidenhain Scales X/Y/Z Axes
- Thru Spindle Air
- Nozzle Coolant
- Flush Coolant
- Mist Collector
- Jerk Control
- AI Contour Control II
- High Speed Processing
