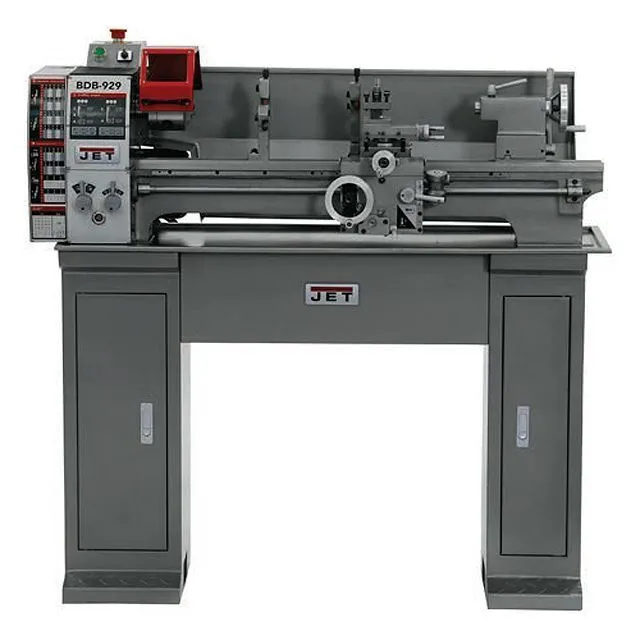

NEW JET BDB-929

Florida, United States
Asking Price
USD $5,169.00
1 available
3,961Listings|13Followers
Overview
Bench Top Lathes

Discover precision with the new JET BDB-929 Belt Drive Bench Lathe. With a 9x29" capacity, 130-2000 RPM spindle speed, and a robust 0.8 hp motor, it's ideal for detailed work. Built to deliver versatility and reliability, it's a perfect addition to any workshop.

Specs
Lathe Type
Belt Drive
Belt Drive
Swing Over Bed
8.75"
222.25 mm
Swing Over Cross Slide
5"
127 mm
Distance Between Centers
27.5"
698.5 mm
Spindle Bore
0.75"
19.05 mm
Spindle Mount
1-1/2 x 8TPI
1-1/2 x 8TPI
Tailstock Spindle Travel
1.5625"
39.688 mm
Taper in Tailstock Spindle
MT#2
MT#2
Cross Slide Travel
4.25"
107.95 mm
Compound Slide Travel
1.875"
47.625 mm
Carriage Travel
26.5 in.
26.5 in.
Spindle Taper w/Sleeve
MT#3
MT#3
Range of Spindle Speeds
130-2000 rpm
130-2000 rpm
Number of Spindle Speeds
6
6
Range of Metric Threads
0.5 - 3.5mm
0.5 - 3.5mm
Number of Metric Threads
12
12
Range of Inch Threads
8-56
8-56
Number of Inch Threads
27
27
Number of Longtitudinal Feed Rates
60
60
Range of Longitudinal Feeds (IPR)
0.0006-0.0368 in.
0.0006-0.0368 in.
Follow Rest Capacity
1-3/4 in.
1-3/4 in.
Steady Rest Capacity
1-3/4 in.
1-3/4 in.
Maximum Tool Size
1/2 in.
1/2 in.
Motor
0.8 hp
0.6 kW
Phase
1
1
Voltage
115v
115v
Net Weight
287 lb
130.2 kg
Gross Weight
344 lb
156 kg
Dimensions
51 x 22 x 20 in.
51 x 22 x 20 in.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
