| Lathe Type | Belt Drive | Belt Drive |
| Swing Over Bed | 8.75" | 222.25 mm |
| Distance Between Centers | 18" | 457.2 mm |
| Spindle Bore | 0.75" | 19.05 mm |
| Spindle Mount | 1-1/2 x 8TPI | 1-1/2 x 8TPI |
| Spindle Taper w/Sleeve | MT#3 | MT#3 |
| Range of Spindle Speeds | 130-2000 rpm | 130-2000 rpm |
| Number of Spindle Speeds | 6 | 6 |
| Motor | 0.8 hp | 0.6 kW |
| Phase | 1 | 1 |
| Voltage | 115v | 115v |
| Dimensions | 41 x 22 x 20 in. | 41 x 22 x 20 in. |
| Weight | 293 lbs. | 293 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR

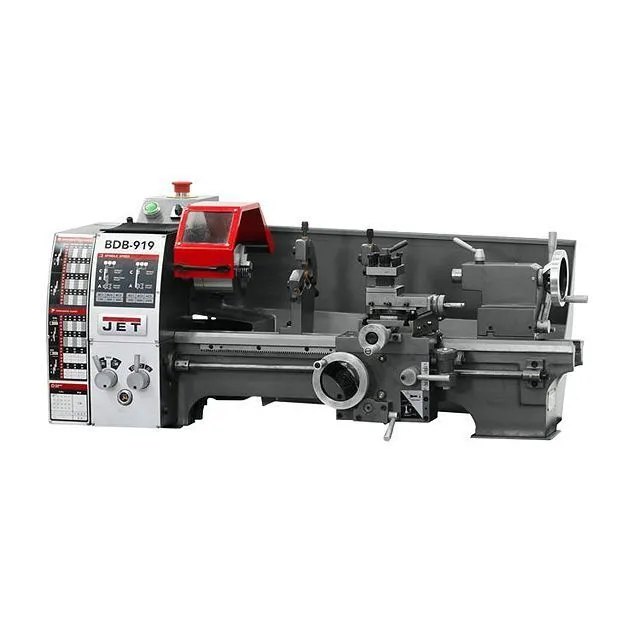

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
