Machine is in Excellent Condition & Ready For Inspection.
| Table-W | 14" | 355.6 mm |
| Table-L | 32" | 812.8 mm |
| Power | 7.5 hp | 5.6 kW |
| Grinding Wheel Width | 2" | 50.8 mm |
| Grinding Wheel Dia. | 14" | 355.6 mm |
| Dimensions | 125”L x 70”W x 81”H | 125”L x 70”W x 81”H |
| Weight | 7,500 Lbs | 7,500 Lbs |
Specifications:
Model - SJ1432
Table Size - 14” x 32”
Longitudinal Table Travel - 32”
Cross Table Travel - 16.5”
Wheel Head Speed - 1400/1700 RPM
Wheel Size - 14” x 2” x 5”
Main Motor - 7.5 HP
Electrics - 575V/3PH/60HZ
Made In - Denmark
Approximate Weight - 7,500 LBS
Approximate Overall Dimension - 125”L x 70”W x 81”H
Equipped With:

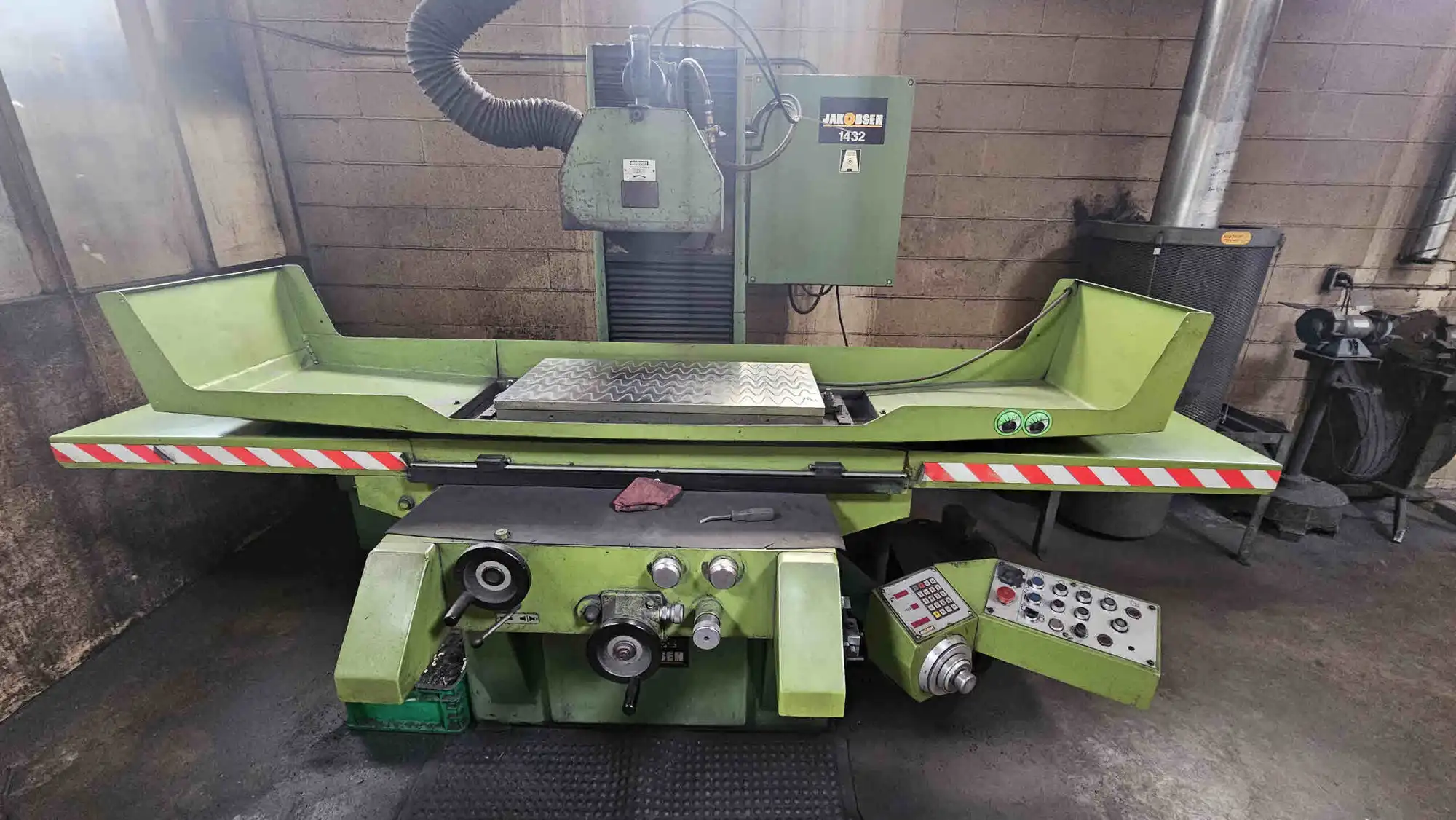

Semi-Automatic Surface Grinder
Incremental Down Feed
Magnetic Table
Electronic Feeding
Push Buttons Controller
Coolant System

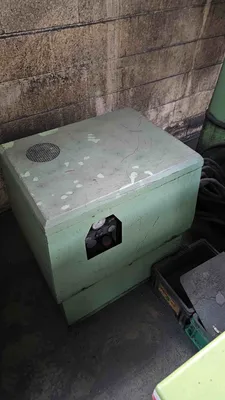

Hydraulic Unit
