1994 Fadal VMC-6030HT Vertical Machining Center with table size 62.5" x 30", load capacity of 1,500 lbs, and X/Y/Z-axis travels of 60"/30"/30". Features CAT #40 spindle taper, 10,000 RPM spindle speed, 22.5 HP motor, Fadal 88 CNC control, and 21-position ATC.
| X-Axis | 60" | 1,524 mm |
| Y-Axis | 30" | 762 mm |
| Z-Axis | 30" | 762 mm |
| Power | 22.5 hp | 16.8 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 21 | 21 |
| Taper | CAT #40 | CAT #40 |
| Table-W | 30" | 762 mm |
| Table-L | 62.5" | 1,587.5 mm |
| Control | CNC | CNC |
| Dimensions | 160 x 118 x 128 | 160 x 118 x 128 |
| Weight | 17500 lbs | 17500 lbs |

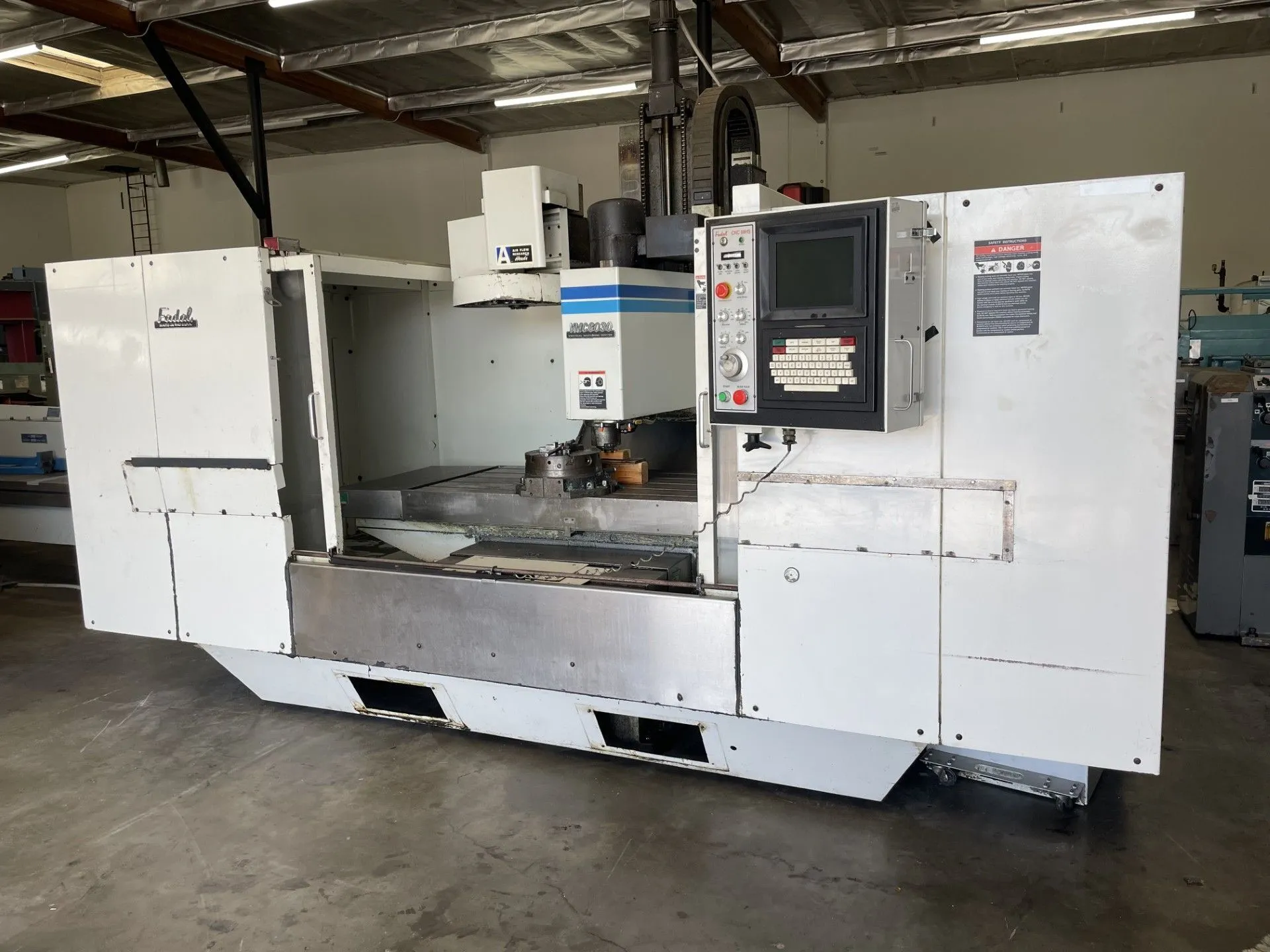

Fadal VMC-6030HT Vertical Machining Center 60" x 30" x 30" #8104 #2
SPECIFICATIONS:
Table Size: 62.5" X 30"
Table Load Capacity: 1,500 Lbs.
X-Axis Travel: 60"
Y-Axis Travel: 30"
Z-Axis Travel: 30"
Spindle Taper: CAT #40
Spindle Speed: 10,000 RPM
Table Top to Spindle Nose 5.5″ – 35.5″
Spindle Motor: 22.5 HP
Rapid Traverse Rates: 400 IPM
Cutting Feed Rates: 400 IPM
Tool Magazine Capacity: 21 Pos. ATC
Machine Dimensions: 160" x 118" x 128" H
Machine Weight: 17,500 lbs.
EQUIPPED WITH:
Fadal 88 CNC Control
Coolant System
