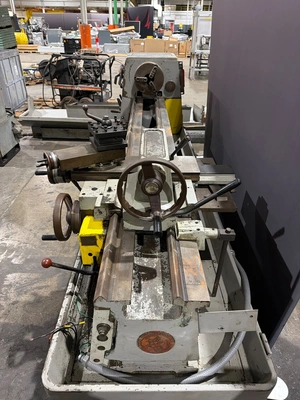

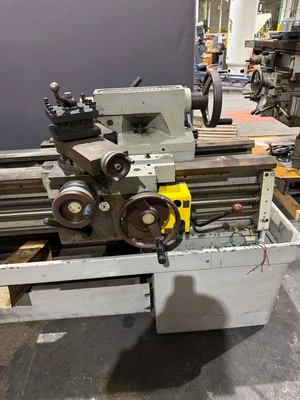

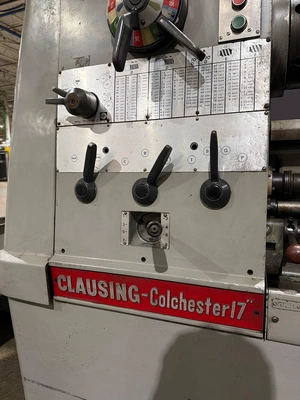

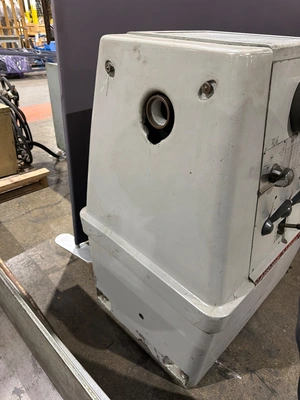

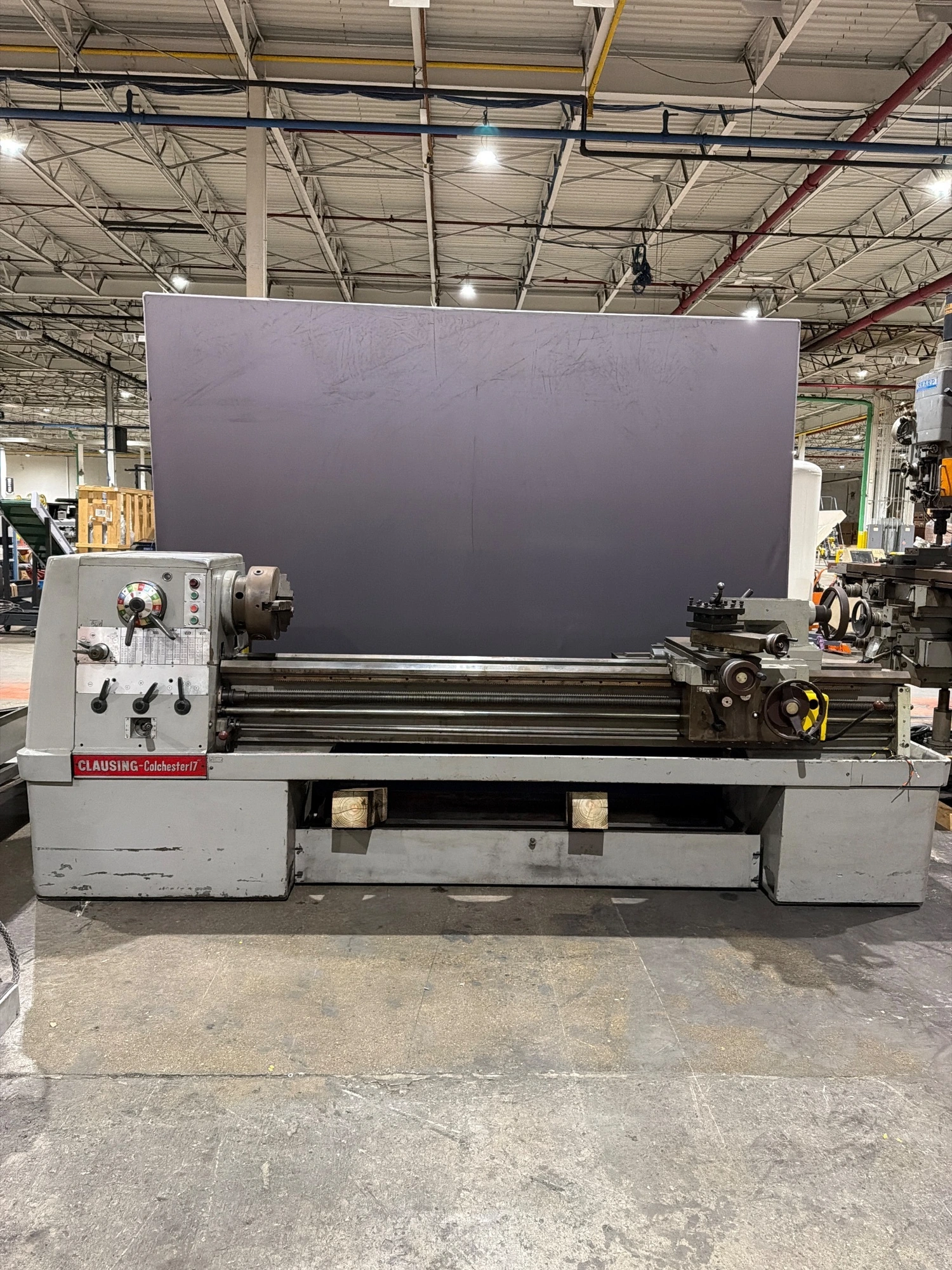

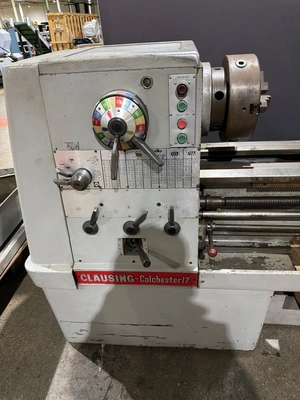

This listing is for a Clausing Colchester 17 engine lathe.
Unit powers on at 480V. Motor turns on, but the spindle does not engage. Most likely the micro switches are bad or out of adjustment. Threading lever and pick up dial assembly are missing.
See photos for details.
Part No: 17
Type: Engine Lathe
Condition: PARTS

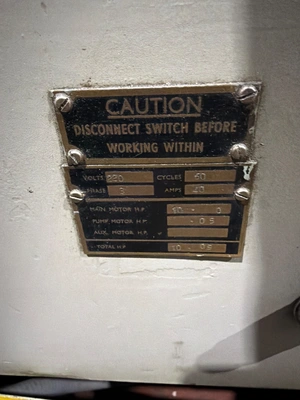

Power: 480V
Motor turns on
Spindle does not engage
Micro switches most likely bad or out of adjustment
Threading lever missing
Pick up dial assembly missing
| Swing | 18.1" | 459.74 mm |
| Centers | 80" | 2,032 mm |
| Spindle Bore | 3" | 76.2 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 1,600 RPM | 1,600 RPM |
| Swing Over Cross Slide | 10.6" | 269.24 mm |
| Dimensions | 138 X 42 X 52 | 138 X 42 X 52 |
| Weight | 6000 LBS | 6000 LBS |
