2006 Haas TM-2 CNC Tool Room Mill, Haas 32-Bit CNC Control. Includes Graymills coolant tank, chip guard, rigid tapping. Table 57.75" x 10.5", X/Y/Z travel 40"/16"/16", spindle 0-4,000 RPM.
| X-Axis | 40" | 1,016 mm |
| Y-Axis | 16" | 406.4 mm |
| Z-Axis | 16" | 406.4 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| Taper | Cat 40 | Cat 40 |
| Table-W | 10.5" | 266.7 mm |
| Table-L | 57.75" | 1,466.8 mm |
| Control | CNC | CNC |

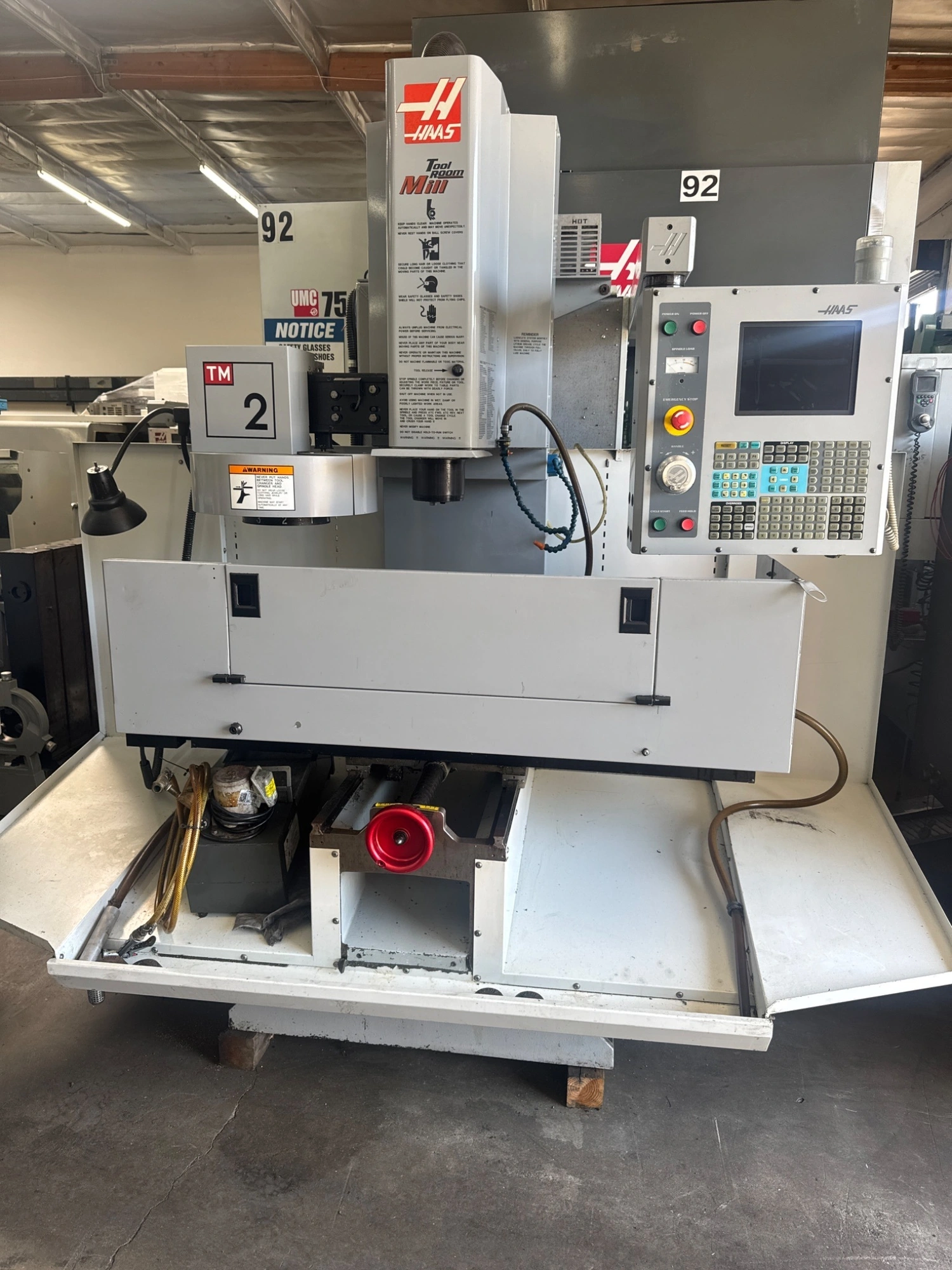

2006 Haas TM-2 CNC Tool Room Mill #8102 #2
SPECIFICATIONS:
Table Size: 57.75" x 10.5"
X-Axis Travel: 40"
Y-Axis Travel: 16"
Z-Axis Travel: 16"
Spindle Taper: Cat 40
Spindle Speeds: 0 - 4,000 RPM
Table Load: 1,000 Lbs.
Rapid Traverse (X/Y/Z): 200 IPM
Spindle Drive: 7.5 HP
Spindle to Table Distance: 4" - 20"
Max Tool Weight: 12 Lbs.
Tool to Tool Time: 5.7 Seconds
EQUIPPED WITH:
Haas 32-Bit CNC Control
Graymill Coolant Tank & Pump
Chip Guard
Rigid Tapping
RS-232 Port
Spindle Orientation
