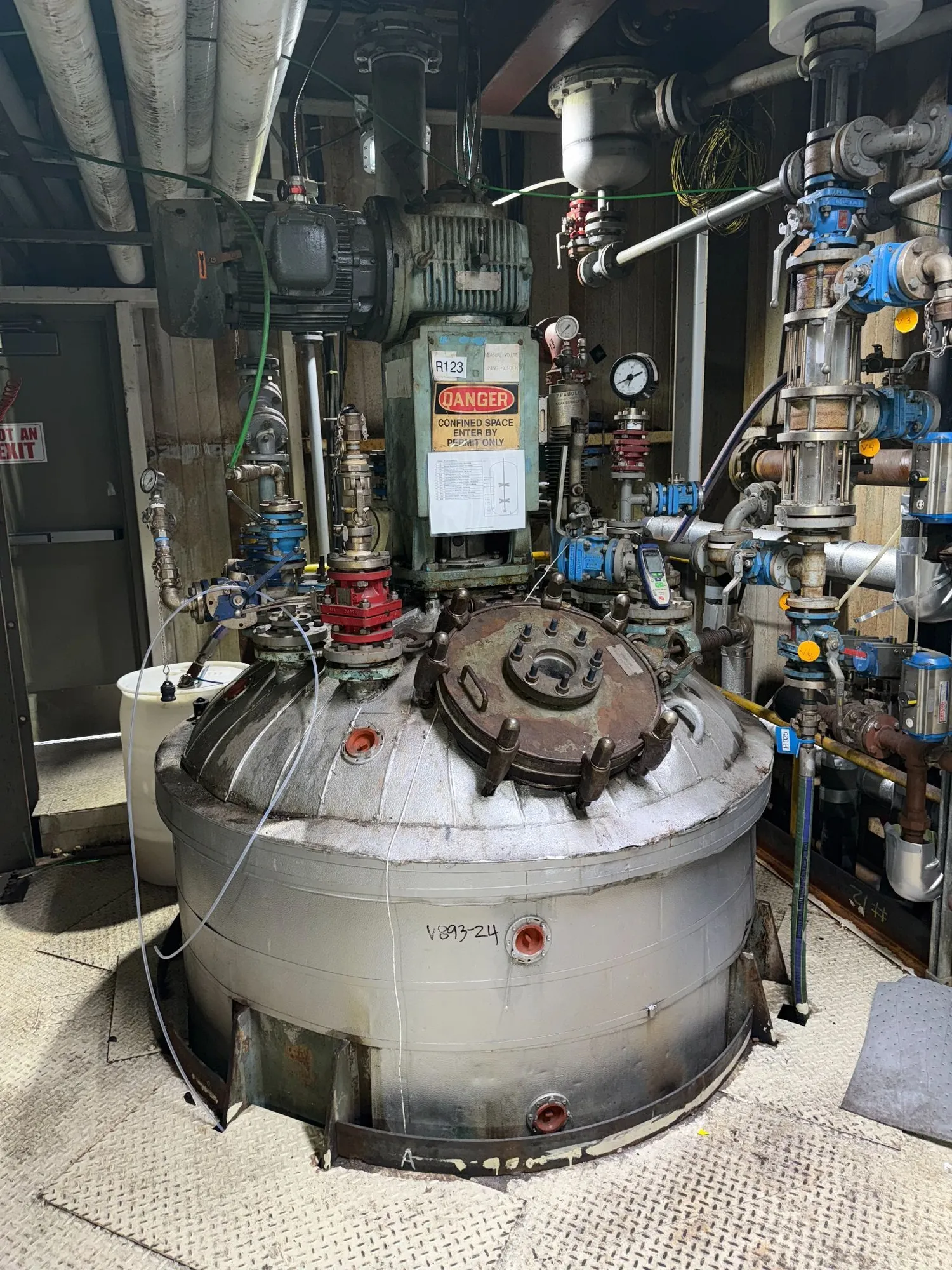

Used Approximately 1,000 Gallon Pfaudler Hastelloy C-276 Reactor
National Board: 43668
Internal pressure: 75/FV @ 450°F
Jacket pressure: 150 @ 500°F
Top, center-mounted Pfaudler agitator with drive
Material of construction: Hastelloy C-276
Lug mounted
* This equipment will be available for sale in early April 2026.
| Capacity | 1,000 gal | 3,785.4 L |
| National Board No. | 43668 | 43668 |
| Type of stainless | Hastelloy C-276 | Hastelloy C-276 |
| Internal Pressure | 75 PSI | 5.2 bar |
| Internal Temperature | 450°F | 232.2°C |
| Jacket Pressure | 150 PSI | 10.3 bar |
| Jacket Temperature | 500°F | 260°C |
| Diameter | 64" | 1,625.6 mm |
| Legs/Lugs | Lugs | Lugs |
