NEW 1987 HWACHEON WL-630 24 x 120

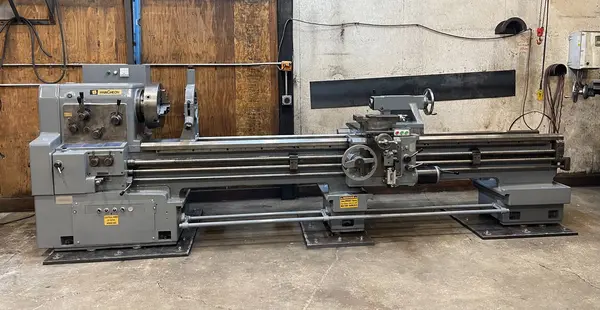

1987 HWACHEON MODEL WL-630 24" X 120" Engine Lathe
Hwacheon is a pioneering South Korean machine tool manufacturer, founded in 1945 by Kwon Seung Gwan, growing with Korea's industrialization to become a leader in CNC machinery, vertically integrated from casting to advanced automation software, known for precision, high-rigidity equipment, and global reach, also involved in automotive parts and materials.

Specifications:

size 24" x 120"
Swing 24"
Centers 120"
Spindle Bore 3"
MOTOR 15 HP
SPEEDS: (12) 27----1205 RPM
THREADS
Inch / metric
Inch Threads: 2-80 TPI
Metric Threads: 0.5-14mm Pitch
TAIL STOCK #5 Morse taper
Swing Over Cross Slide 16.25"
Dimensions 180"x W-50"x H- 55"
Weight 9,000 lbs
Power Requirement 220--440 Volts 3 ph

Equipped With:

5” Diameter Roller Bearing Capacity Steady Rest
Tailstock
Power Rapid Traverse
15" 4 Jaw Chuck
16" 3 Jaw Chuck ( with 2 piece top jaws )
