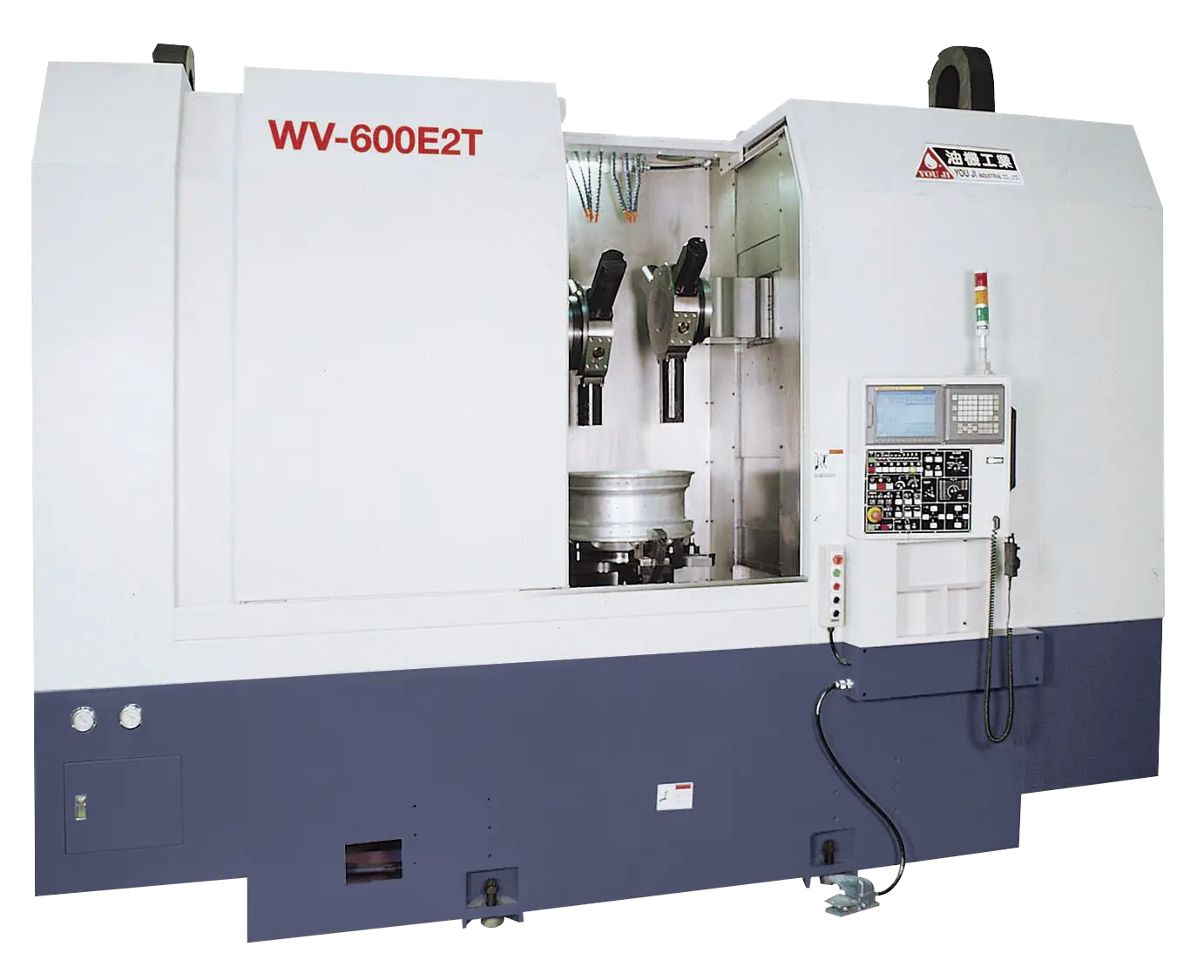

NEW YOU JI WV-600E2T

The four You Ji WV series high-production vertical lathes are designed for large lot size machining of large aluminum wheels or similar parts. The compact, high precision, heavy duty machines can be applied as a stand alone machining cell or be integrated with other machines to form a complete flexible automated manufacturing system.

Depending on the specific model, the machines handle wheel diameters up to 22″ (560 mm) or up to 26″ (660 mm).

ITEM / MODEL WV-600E2T

Chuck Size (in.) 24
Max Swing (in.) 33.5
Wheel Dia. (in.) 17 – 26
Z Travel (in.) 21.65
# of Axis 4
Tool System (2) Hex Turrets on 10″ Sq. Rams
Spindle HP 100
RPM 1,500 (2,000 opt.)
APC Optional
Weight (lbs.) 44,000
