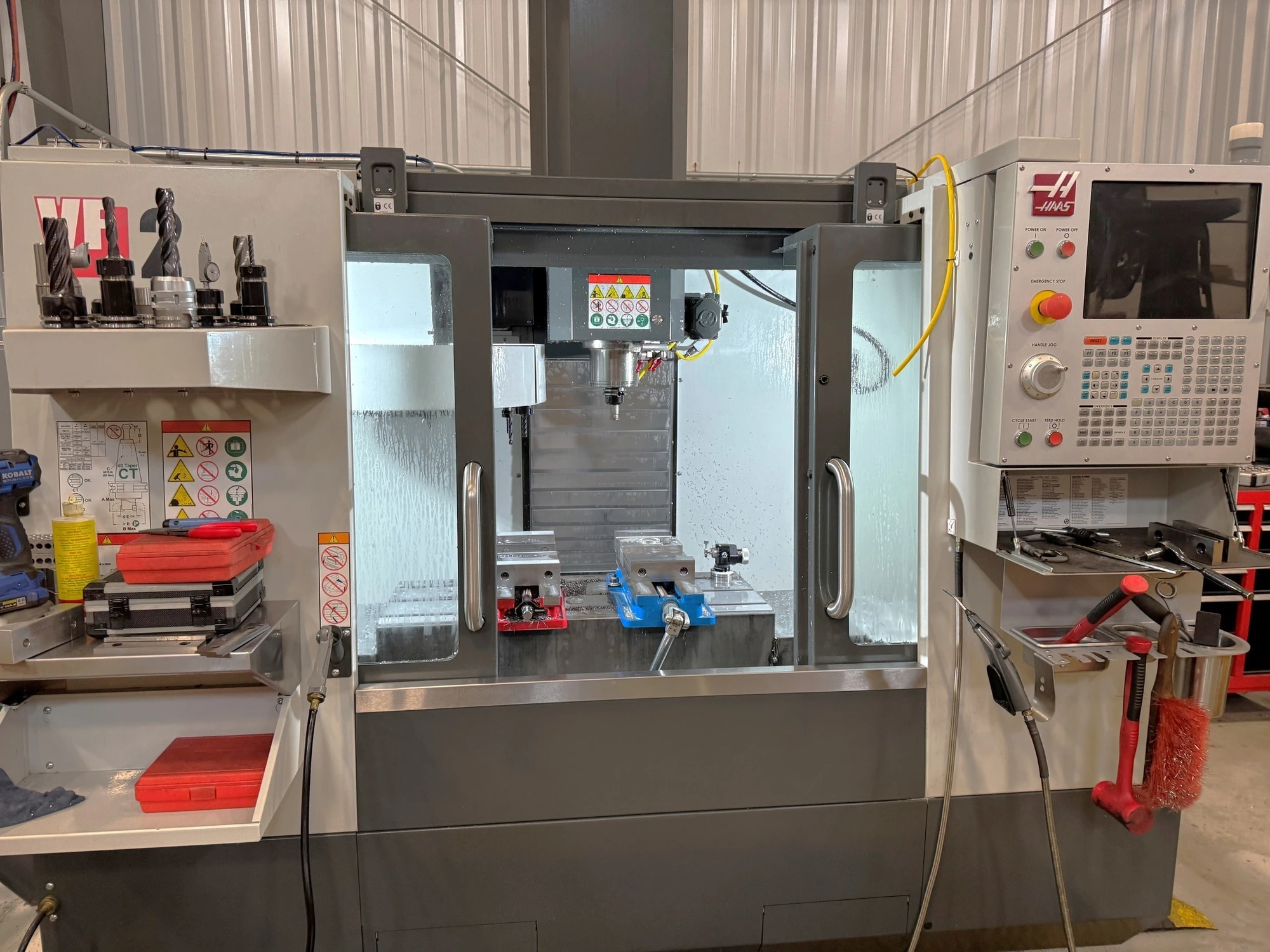

Used Vertical Machining Center with 8,100 RPM, 30" X, 16" Y, and 20" Z travel, 30 hp, and 3-axis. Features probing, chip auger, programmable coolant nozzle, tooling, and vices.
| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 8,100 RPM | 8,100 RPM |
| # ATC | 20 | 20 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (HAAS) | CNC (HAAS) |
Rapid Traverse Rates 1,000 IPM
Machine Dimensions LxWxH 95"x95"x100"
Machine Weight 9,000 lbs
Haas Wireless Probing System WIPS
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System
Auger Style Chip Conveyor
Rigid Tapping
Programmable Coolant Nozzle
USB Port Interface
RS 232 Port Interface
Wired 220V Electrics
Toolholders Included
Vices Included
