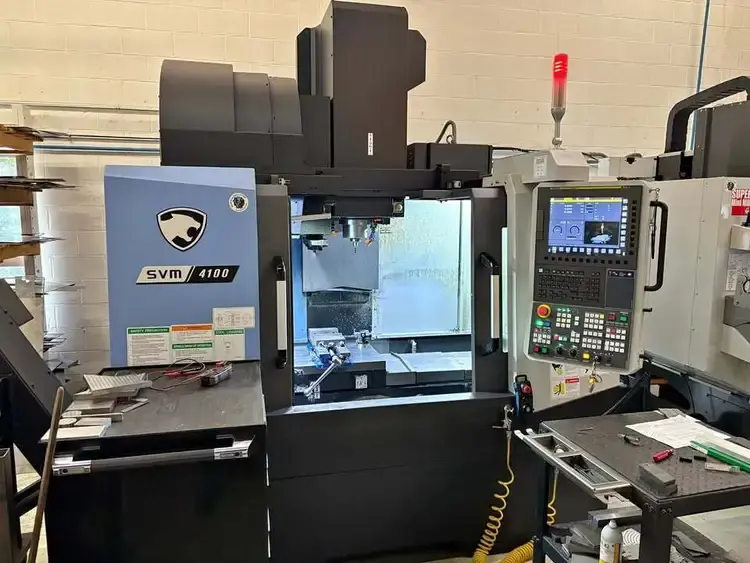

2022 DOOSAN SVM 4100 , 12,000 RPM 25HP, 30 ATC, CAT 40, X: 30.3", Y: 16.1", Z: 20.1"
DN Solutions history traces back to the 1970s as Daewoo Machine Tools, later acquired by the Doosan Group in 2000, becoming Doosan Machine Tools, and finally rebranding to DN Solutions in 2022 after being acquired by DN Automotive, evolving from its origins in the broader Doosan conglomerate. The company is a major global manufacturer of CNC machine tools, known for innovation in turning, milling, and automation, serving industries like automotive, aerospace, and energy.
| X | 30.3" | 769.62 mm |
| Y | 16.1" | 408.94 mm |
| Z | 20.1" | 510.54 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 16.14" | 409.96 mm |
| Table-L | 36.2" | 919.48 mm |
| # Axis | 3 | 3 |
| Control | CNC (FANUC) | CNC (FANUC) |
| Dimensions | 85" x 105" x 89" | 85" x 105" x 89" |
| Weight | 8,488 lbs | 8,488 lbs |
X 30.3"
Y 16.1"
Z 20.1"
RPM 12,000 RPM
# ATC 30
Taper CAT 40
# Axis 3
Control CNC (Fanuc)

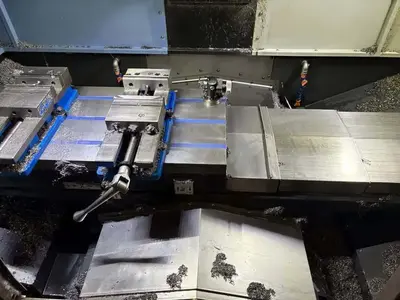

Table loading area 920 mm x 410 mm (36.22″ x 16.14″)
Allowable table load 600 kg (1,323 lbs)
Table T-slot spacing x width (3) – 125mm x 18H8 (3) – 4.92″ x .71″
Spindle nose to table top 100 mm to 600 mm (3.9″ to 23.62″)

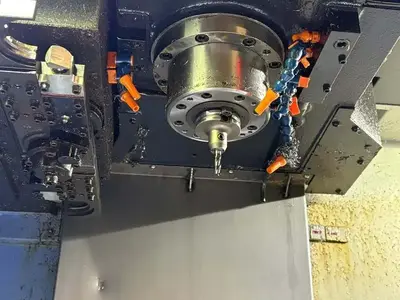

Big Plus Spindle system CAT 40
Big Plus Spindle speed 12,000 rpm
AC Spindle Motor (S3 25%) 5.5 / 18.5 kW (7.375 / 25 hp)
Spindle Torque (S3 15%) 95.5 nm (70.5 ft-lbs)
Spindle Acceleration Deceleration time 0 – 12k (1.33 sec) 12k – 0 (1.25 sec)
AUTOMATIC TOOL CHANGER:
Number of Tools-30
Tool Shank: CAT 40
Pull Stud (Supply Company #)-711-23
Max. Tool Dia. Adjacent pots are empty (30)-76 mm 125 mm (2.99″ 4.9″)
Max. Tool Length-300 mm (11.8″)
Max. Tool Weight -6 kg (13.23 lbs)
Equipped With

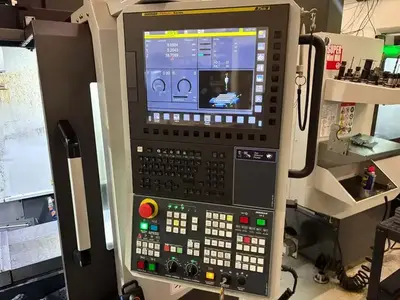

FANUC Control
Chip Conveyor
