USED 2020 FULTON VMP 100

OVERVIEW

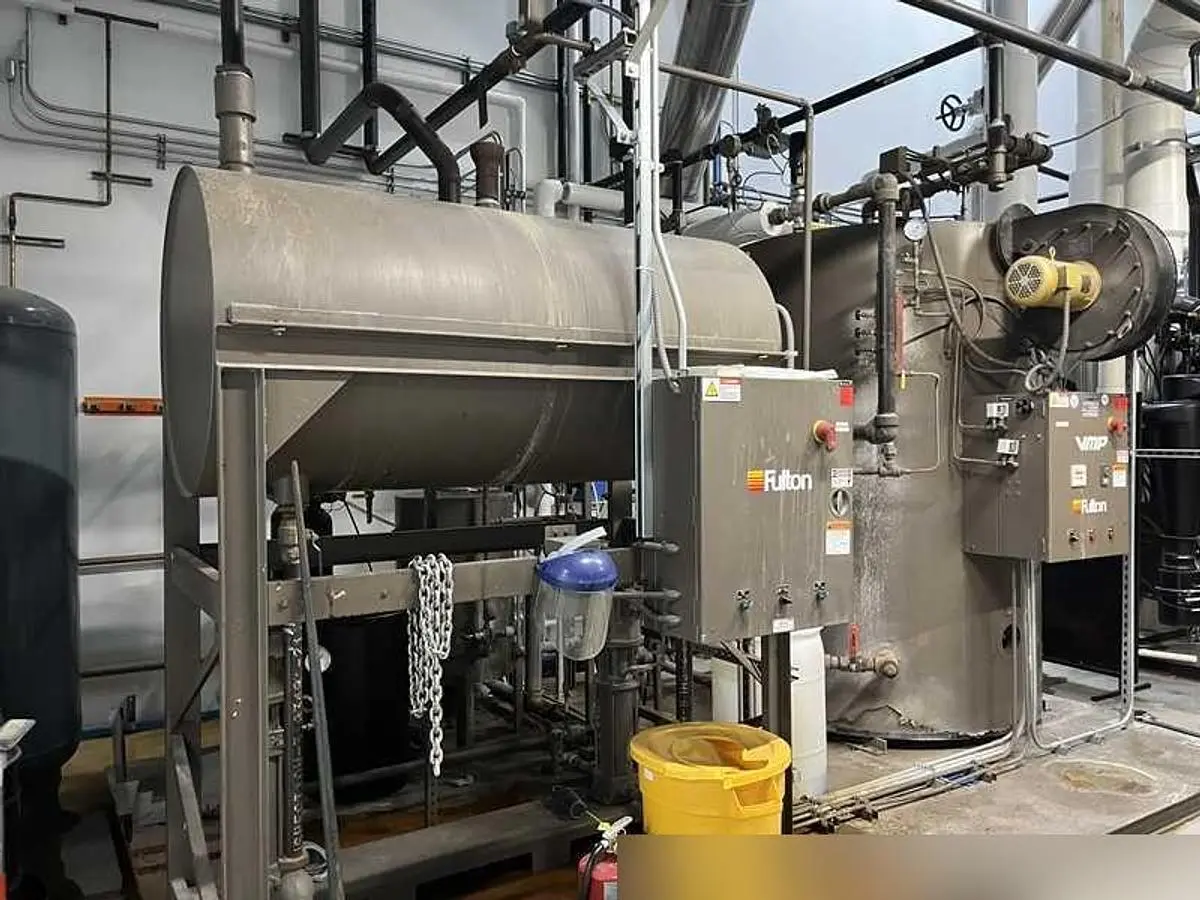

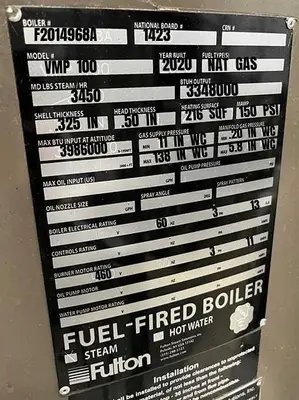

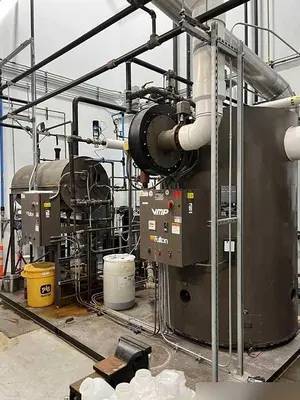

Fulton VMP 100 Vertical Multi-Port Steam Boiler - National Board Number 1423, Serial Number F2014968A, Year Built 2020. Professional-grade natural gas-fired vertical multi-port steam boiler featuring 3,348,000 BTU/HR output capacity with 3,450 lbs/hr steam generation at 150 PSI maximum allowable working pressure and 216 square feet heating surface. Complete packaged system includes condensate return tank, Fulton integrated control systems, 0.325" shell thickness, 0.50" head thickness, and heavy-duty steel construction. Built to ASME standards with 460V three-phase electrical systems for boiler and controls. Features innovative vertical multi-port design for superior heat transfer and efficiency. Complete with condensate return tank for closed-loop operation, all safety trim and controls installed, and modern digital monitoring systems. Ideal for commercial buildings, light industrial facilities, institutional applications, or any operation requiring compact, efficient steam generation with integrated condensate return and proven Fulton vertical multi-port technology.

EQUIPMENT SPECIFICATIONS

Boiler Model Information:

Manufacturer: Fulton
Product Line: Vertical Multi-Port Boiler
Model Number: VMP 100
Serial Number: F2014968A
National Board No: 1423
Year Built: 2020
Configuration: Vertical multi-port steam boiler
Type: Natural gas-fired
Horsepower: 100 BHP


Performance Ratings:

BTU Output: 3,348,000 BTU/HR
Boiler Horsepower: 100 BHP
Steam Capacity: 3,450 lbs/hr
Heating Surface: 216 sq. ft.
Maximum Allowable Working Pressure: 150 PSI
Shell Thickness: 0.325"
Head Thickness: 0.50"
Fuel Type: Natural Gas


Electrical Specifications:

Voltage: 460V
Phase: 3-Phase
Frequency: 60 Hz


Physical Dimensions:

Overall Length: 73"
Overall Width: 72"
Overall Height: 120"
Weight: 7,001 lbs
Recommended Packaging: Custom Pallet


Additional Equipment:

Condensate Return Tank: Included
Configuration: Complete packaged system
Origin: USA


KEY FEATURES & BENEFITS

Fulton Quality Manufacturing:

Premium USA boiler manufacturer
2020 year of manufacture
Vertical Multi-Port series design
National Board certified (1423)
Heavy-duty commercial construction
Professional installation quality
Nearly new condition
Modern manufacturing standards


High-Efficiency Performance:

100 boiler horsepower rating
3,348,000 BTU/HR output
3,450 lbs/hr steam generation
216 sq. ft. heating surface
150 PSI maximum working pressure
Natural gas fuel efficiency
Compact vertical design
Continuous duty rated


Vertical Multi-Port Design:

Innovative multi-port technology
Vertical orientation saves floor space
Multiple heat transfer ports
Enhanced combustion efficiency
Superior heat transfer rates
Faster steam generation
Reduced footprint
Better thermal efficiency
Longer service life


Integrated Condensate Return System:

Complete condensate return tank included
Closed-loop operation capability
Energy recovery optimization
Reduced makeup water requirements
Improved system efficiency
Professional tank integration
All piping connections provided
Complete packaged solution


Advanced Control Systems:

Fulton integrated control system
Digital monitoring interface
Real-time diagnostics
Temperature and pressure monitoring
Safety system integration
User-friendly operation
Automated controls
Professional-grade components


Heavy-Duty Construction:

0.325" shell thickness
0.50" head thickness
Heavy-duty steel construction
Corrosion-resistant materials
Robust design
Long service life
Minimal maintenance
Industrial-grade quality


Nearly New Condition:

2020 year of manufacture
Modern design and technology
Recent construction standards
Minimal operating hours
Excellent condition
Current safety standards
Up-to-date engineering
Extended service life remaining


Safety & Compliance:

150 PSI ASME design pressure
National Board certified (1423)
Multiple safety interlocks
Safety relief valve protection
Low water cutoff protection
Flame safeguard system
Code-compliant installation
Professional engineering


SYSTEM COMPONENTS

Main Boiler:

Fulton Model VMP 100
Serial Number F2014968A
National Board No: 1423
Year 2020 manufacture
Vertical multi-port design
100 BHP capacity
216 sq. ft. heating surface
150 PSI MAWP
Complete with all trim


Burner System:

Natural gas burner
Power burner design
Forced draft combustion
Modulating control capability
Gas train components
Safety shut-off valves
Flame safeguard system
Professional installation

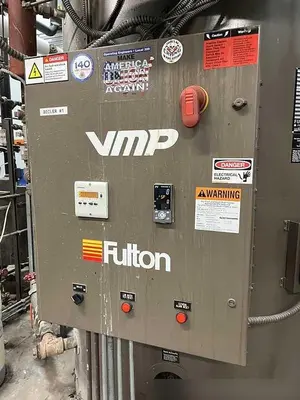

Control Systems:

Fulton integrated control panel
Digital monitoring interface
Burner management system
Flame safeguard controls
Operational diagnostics
Temperature controls
Pressure monitoring
Safety interlocks


Electrical Components:

460V three-phase power supply
60 Hz frequency
All wiring and connections
Disconnect provisions
Circuit protection
Control systems
Professional installation
Motor and control power


Safety & Instrumentation:

Low water cutoff protection
Pressure relief valve
Pressure gauge
Temperature sensors
Water level controls
Gas pressure switches
Flame supervision
Emergency shutdown capability


Water System:

Feedwater connections
Water level controls
Feedwater valves
Piping connections
Blowdown valve
Drain connections
Level indication
Low water protection


Condensate Return System:

Condensate return tank included
Tank mounting and support
Piping connections
Pump system (if applicable)
Level controls
Overflow protection
Professional integration
Complete packaged solution


Gas System:

Gas pressure regulator
Manual gas valve
Safety shut-off valves
Gas pressure switches
Inlet connection
Gas pressure monitoring
Safety interlocks
Professional gas train


SPECIFICATIONS SUMMARY

Boiler:

Manufacturer: Fulton
Model: VMP 100
Serial No: F2014968A
National Board: 1423
Year: 2020
Type: Vertical multi-port steam boiler
Fuel: Natural Gas
Horsepower: 100 BHP
Output: 3,348,000 BTU/HR
Steam: 3,450 lbs/hr
Heating Surface: 216 sq. ft.
Max Pressure: 150 PSI
Shell: 0.325" thickness
Head: 0.50" thickness
Origin: USA


Electrical:

Voltage: 460V
Phase: 3-Phase
Frequency: 60 Hz


Physical:

Length: 73"
Width: 72"
Height: 120"
Weight: 7,001 lbs
Configuration: Vertical
Design: Multi-port
Mounting: Floor-mounted
Finish: Factory finish


Additional Equipment:

Condensate Return Tank: Included
Packaging: Custom pallet recommended


ADDITIONAL INFORMATION

Condition: Used - 2020 Manufacture, Excellent Condition

Manufacturer: Fulton

Product Line: Vertical Multi-Port Boiler

Model: VMP 100

Serial Number: F2014968A

National Board Number: 1423

Year Built: 2020

Fuel Type: Natural Gas

BTU Output: 3,348,000 BTU/HR

Boiler Horsepower: 100 BHP

Steam Generation: 3,450 lbs/hr

Heating Surface: 216 square feet

Maximum Allowable Working Pressure: 150 PSI

Shell Thickness: 0.325 inches

Head Thickness: 0.50 inches


Electrical Requirements:

Voltage: 460V
Phase: 3-Phase
Frequency: 60 Hz


Physical Dimensions:

Overall Length: 73 inches
Overall Width: 72 inches
Overall Height: 120 inches
Total Weight: 7,001 lbs


Packaging Requirements:

Recommended: Custom Pallet
Rigging: Professional rigging required
Transport: Specialized equipment needed


Control System: Fulton integrated control system with digital monitoring
Condensate System: Complete condensate return tank included

Safety Features:

Low water cutoff protection
Safety relief valve
Flame supervision system
Multiple safety interlocks
Emergency shutdown capability
Pressure relief protection
Gas pressure monitoring
Professional safety controls


Installation Requirements:

Professional installation required
Foundation specifications per manufacturer
Adequate clearances per code requirements
Professional rigging and placement
Electrical hookup by licensed electrician
Gas connection by licensed professional
Condensate system integration
Professional commissioning recommended


Features:

Fulton Vertical Multi-Port Boiler design
2020 year of manufacture - nearly new condition
100 boiler horsepower rating
3,348,000 BTU/HR output capacity
3,450 lbs/hr steam generation
216 square feet heating surface
150 PSI maximum working pressure
Natural gas-fired for efficient operation
Vertical multi-port design for superior heat transfer
Compact vertical footprint saves floor space
Multiple heat transfer ports for enhanced efficiency
Heavy-duty 0.325" shell thickness
Robust 0.50" head thickness
National Board certified (1423)
ASME construction and certification
Complete condensate return tank included
Closed-loop operation capability
Energy recovery optimization
Fulton integrated control system
Digital monitoring interface
Low water cutoff protection
Safety relief valve protection
Flame safeguard system
All safety trim and controls installed
460V three-phase electrical package
Professional-grade components throughout
Complete packaged system
Ready for natural gas connection and startup
Includes condensate return tank
2020 manufacture - excellent condition
Professional-grade commercial/industrial construction
Dimensions: 73"L x 72"W x 120"H
Weight: 7,001 lbs

* Manufacturer: Fulton
* Product Line: Vertical Multi-Port Boiler
* Model Number: VMP 100
* Serial Number: F2014968A
* National Board No: 1423
* Year Built: 2020
