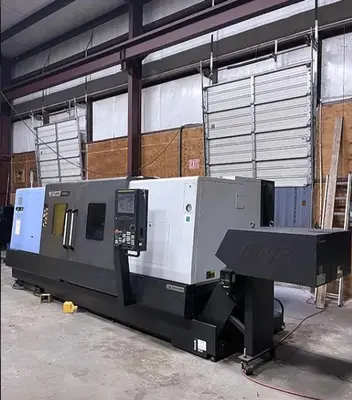

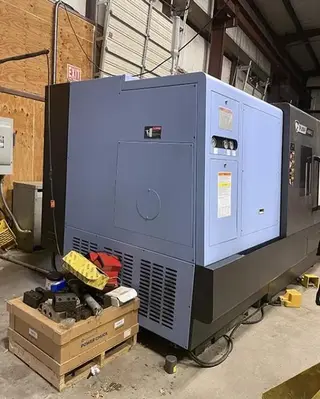

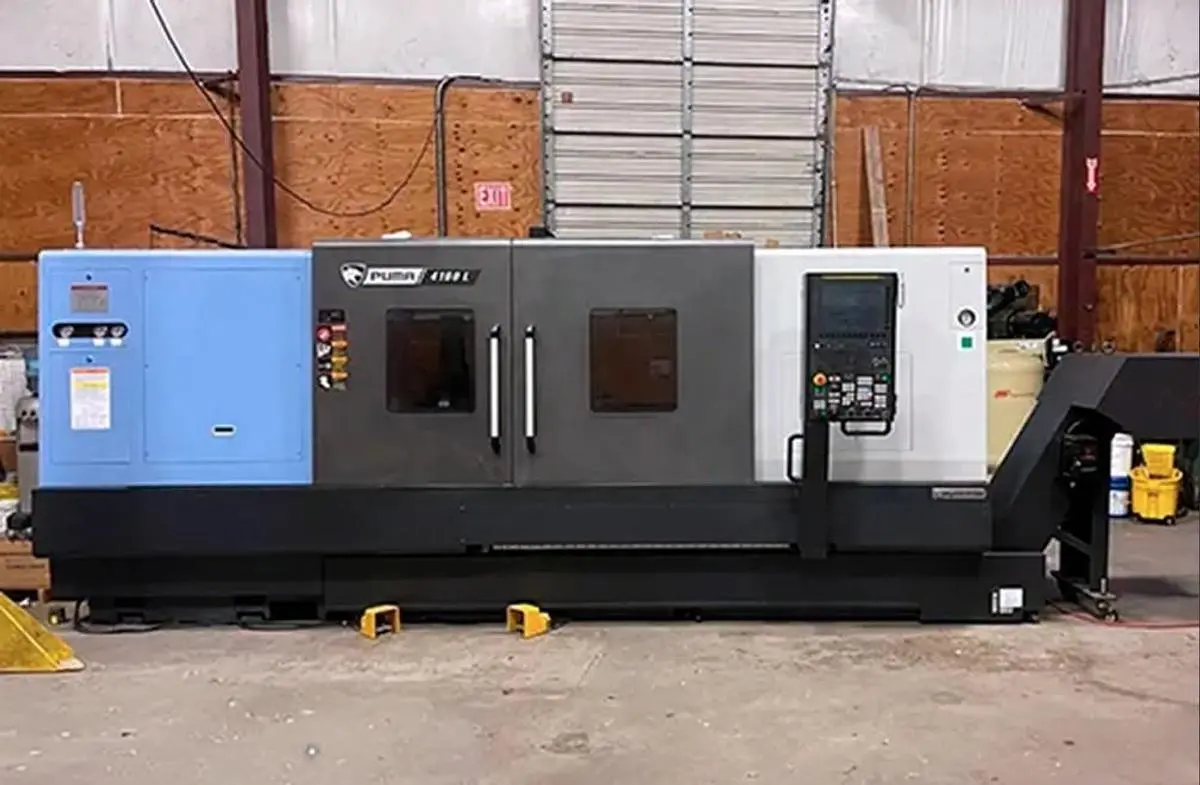

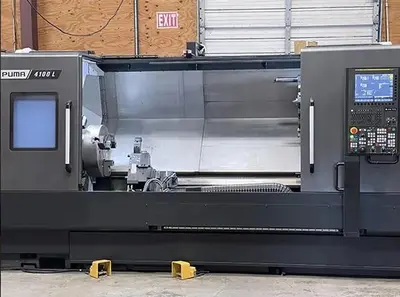

USED 2023 DN SOLUTIONS PUMA 4100LB

Chip Conveyor

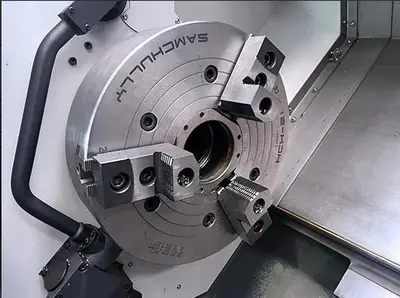

21" Samchully Model HCH-21 3 Jaw Hydraulic Chuck

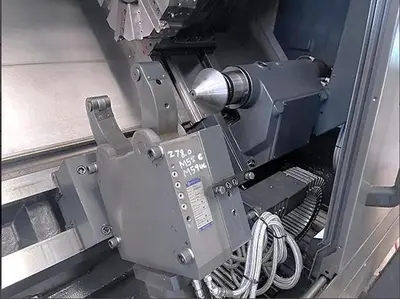

Programmable Tailstock
Samcully Model STA-4 Hydraulic Steady Rest
Tool Presetter
Programmable High/Low Chucking Pressure
EZ Guide i Conversational Programming
Tool Load Monitoring
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump - 65 PSI
Boxed Way Construction on Slant Bed
Geared Headstock
All Available Tooling
All Available Manuals

**ONLY Run Time Hours 180**
**Compare to new replacement cost of $272,000 inclusive of the steady rest**

The 2023 DN Solutions Puma 4100LB is a robust used CNC lathe designed for precision and efficiency. It's equipped with a Fanuc i Series Control, providing a stable interface for operations. This model features a 21" hydraulic chuck and supports a maximum swing of 31.1", accommodating substantial workpieces. It can handle a maximum turning diameter of 21.7" and a turning length of up to 82.4", suitable for various complex jobs.

The Puma 4100LB boasts a strong spindle setup, with an A2-11" nose and a 5.5" bore, capable of achieving speeds from 1 to 2,000 RPM. Powered by a 50 HP motor with two speed ranges, it ensures proficient performance across applications. The X-axis and Z-axis travels are 13.8" and 84.84", respectively, ensuring ample movement and versatility. The machine also features a 12-position turret for comprehensive tooling.

Additional attributes include rapid traverse rates of 630 IPM on the X-axis and 708 IPM on the Z-axis, enhancing productivity. The lathe's tailstock quill has a 4.7" diameter aligning with an MT #5 center, offering consistent support. This machine weighs 25,130 lbs and measures 227" x 90" x 91", making it a substantial addition to any machining setup.

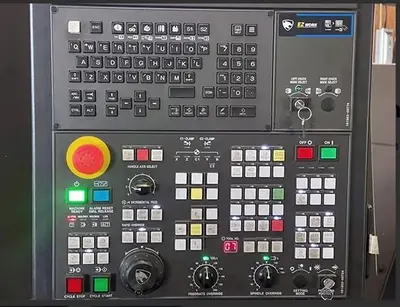

Control: Fanuc i Series Control
Chuck Size: 21" Hydraulic Chuck
Maximum Swing: 31.1"
Maximum Turning Diameter: 21.7"
Maximum Turning Length: 82.4"
Maximum Bar Capacity: 4.7"
X-Axis Travel: 13.8"
Z-Axis Travel: 84.84"
Spindle Nose / Spindle Bore: A2-11" / 5.5"
Spindle Speeds: 1 - 2,000 RPM
Spindle Motor: 50 HP - 2 Ranges

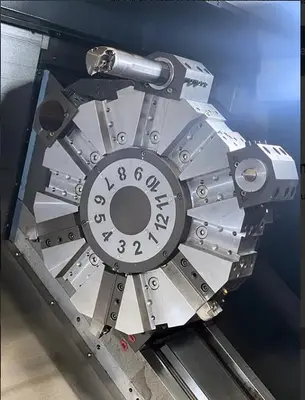

Number of Turret Positions: 12 Position Turret
Rapid Traverse Rates X/Z: 630 IPM / 708 IPM
Tailstock Quill Diameter / Center: 4.7" / MT #5
Tailstock Quill Travel: 4.7"
Machine Dimensions: 227" x 90" x 91"
Machine Weight: 25,130 lbs.
