USED IONPRO LX High Purity Water Production System

Unused Ionpro LX high purity water production system.

**Design & Output:**
- Design Flow Rate: 500 L/hr (continuous)
- Peak Flow Rate: 800 L/hr @ 4.0 barg
- Operating Time: 16 hours/day, 7 days/week, 52 weeks/year

**Water Quality Requirements:**
- Conductivity: <1 μS/cm
- Temperature at POU: Ambient
- Nitrate: ≤0.2 ppm
- Heavy Metals (Pb): ≤1.0 ppm
- pH: 6.5 – 8.0
- Total Organic Carbon (TOC): ≤500 ppb
- Bacteria: <100 CFU/ml
- Endotoxin: <0.25 EU/ml

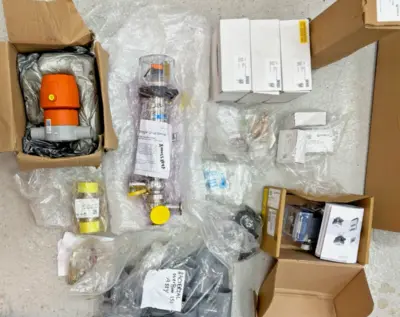

**System Components:**
**Pretreatment & Generation:**
- Raw Water Tank & Booster Pump:
- 200L tank with Type AB air gap

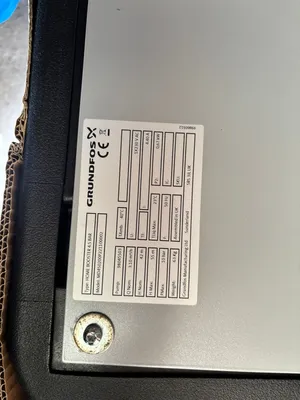

- Grundfos CM 3-6 I pump with PM2 Pressure Manager
- Activated Carbon Filter:

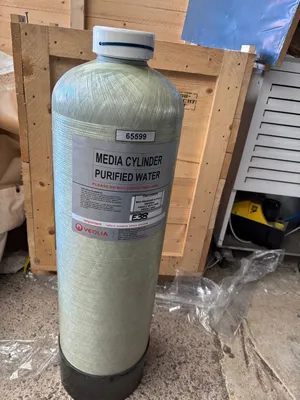

- GRP vessel with activated carbon media
- Inlet/outlet pressure gauges, sample valves, and flush valve

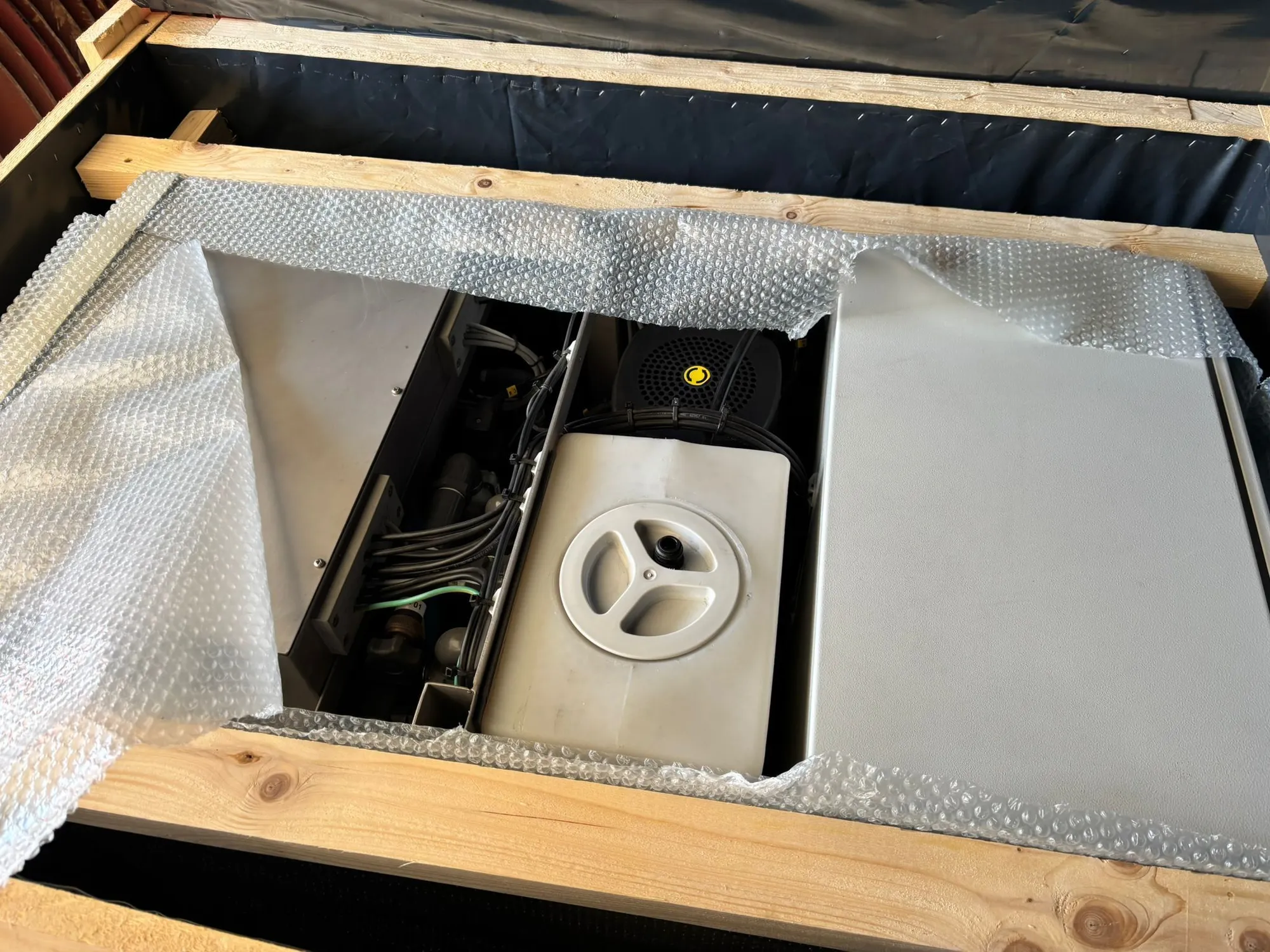

- IonPRO LX Unit:
- Duplex water softener with brine tank
- 5-micron cartridge filtration
- 75L multi-purpose break tank
- Reverse Osmosis membranes
- Continuous Electro Deionisation (CEDI) module
- Chemically sanitised (automated sanitisation process)
- HMI display for performance monitoring
- UV Disinfection Unit:
- 316L stainless steel
- FDA certified 254 nm UV lamp
- UV intensity monitor

**Storage & Distribution:**
- Purified Water Tank:
- 2,000L black polypropylene with conical base
- Hydrophobic air vent filter and antibacterial overflow
- Distribution Loop:
- Variable speed vertical centrifugal pump
- 0.05-micron endotoxin filter
- Hygienic sample valves (before/after UV and on return)
- Calibrated conductivity sensors at:
- Outlet from IonPRO LX
- Distribution loop outlet
- Loop return
- Pipework:
- Default: PVC solvent-welded loop

**Control & Monitoring:**
- Relay-based central control panel
- Power distribution and interlock logic
- Conductivity and flow monitoring
- Audible/visual alarms
- Paperless chart recorder (21 CFR Part 11 compliant)
- Signals available for passivation line interlocks

**Utility Requirements:**
- Feed Water: 1,800 L/hr @ 2–4 bar (peak during softener regen)
- Drain Capacity: 2.0 m³/hr
- Instrument Air: 5.5–6.0 bar, 5 L/min intermittent
- Salt for Softener: 6 kg/regeneration (tablet salt recommended)
- Electrical Supply: 5 kW, 400V, 50Hz, 3-phase (N+E)
