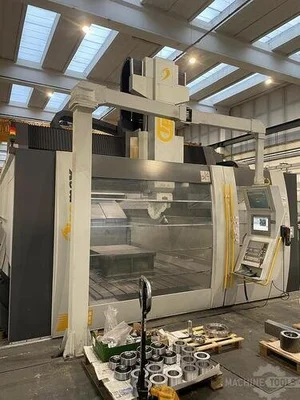

USED 2016 FPT DINOMAX2 L60

Heidenhain iTNC530 HSCI CNC Control40 Position Tool Magazine 25 Position - ISO 50 Taper 15 Position - HSK 63A Taper Automatic Head Magazine with 3 positions: n.1 Universal bi-rotary head with continuous positioning Spindle speed 5,000 rpm Tool taper ISO 50 DIN 69871 n.1 Twist head (fork type) with 2 continuous axes 31 kW 5-axis head with electrospindle 1st axis rotation +/- 210° 2nd axis rotation +115/- 97° Spindle speed 18,000 rpm Spindle taper HSK63A Internal Coolant 20 bar External Coolant 4 barn. 1 chip conveyor front of the tablen. 2 chip conveyors lateral to the tableSpindle extension mm 400 ISO 50 with cooling, 5,000 rpmRemote control panel, Handwheel HR 550 FSTool measuring probeWorkpiece measuring probeElectrospindle balancing controlStatic and dynamic RTCPWork Area Video Surveillance System

Manufacturer: FPT
Model: DINOMAX2 L60
Year: 2016
Condition: Used
Stock Number: 5654289
Max horizontal clearing: 3,700 mm
Spindle speeds: 5,000 / 18,000 rpm
Max vertical clearance under crossbeam: 2,126 mm
Table height from ground: 330 mm
X axis travel: 6,000 mm (5,200 mm for head magazine)
Y axis travel: 2,700 mm
Z axis travel: 1,300 mm
Table dimensions: 2,500 x 5,000 mm
Table height: 300 mm
Table capacity: 15 Ton
Max axis feed: 50,000 mm/min
Max acceleration: 4 m/sec²
Machine dimensions: 9,500 x 6,975 x 5,180 mm
Machine weight: 70,000 kg
