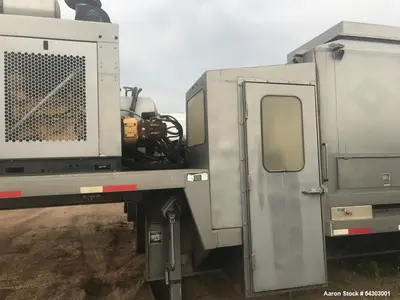

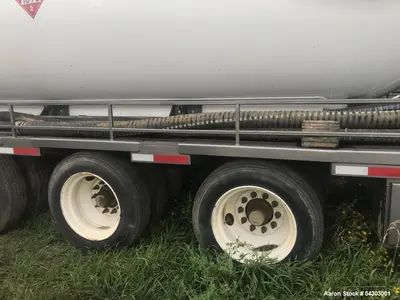

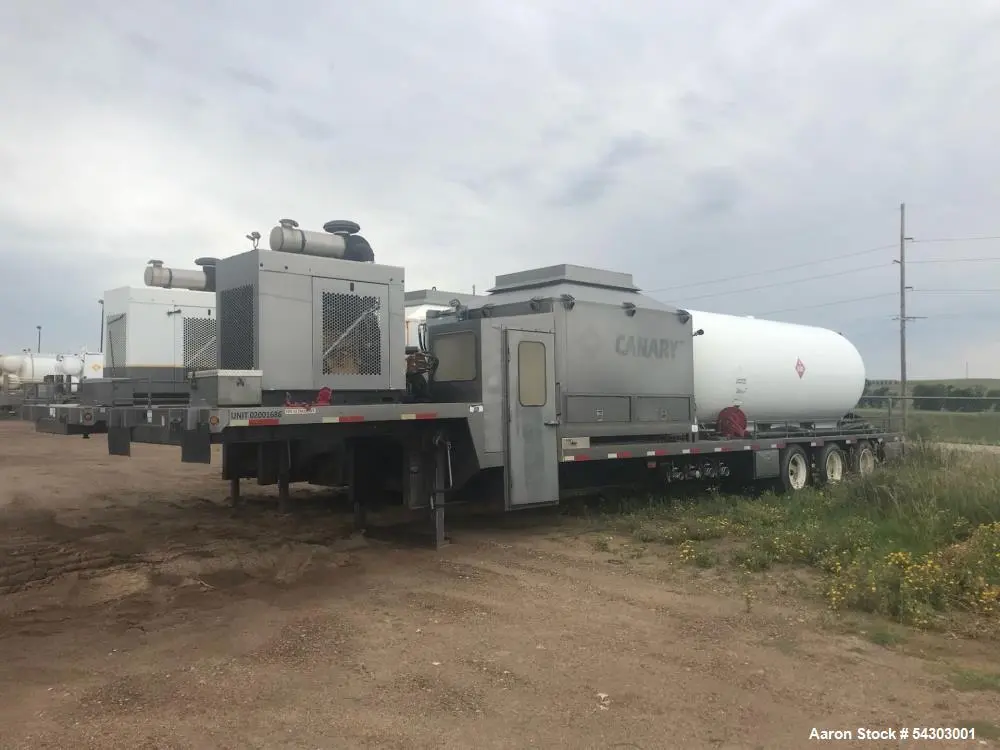

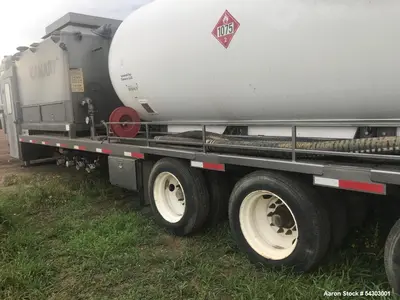

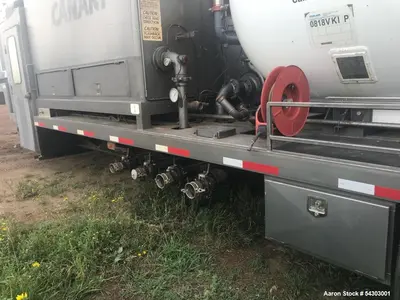

Energy Fabrication TFH30P FRAC Processing Trailer with LP Tank

Used Energy Fabrication Trailer Mounted FRAC Processing Trailer, Tri Axle. With John Deere diesel powered pump. Energy Fabrication Model TFH30P Indirect-Fired Heater / FRAC Heating Unit. 30 MMBTU/hr Heating Capacity. Propane fired. Serial# EFH30P-5000-274. Trinity Containers LLC LP Tank, 18,927 Liters(5,000 Gallons), Carbon Steel. OD 80" x OAL 262.88". OSSA 458 S.F. Rated 250 psi at -8 to 125 degrees F. Hemispherical heads. Max lading density 4.223 LB/GAL. L.P. Gas. D.O.T. SPEC. NO. MC-331. Serial# Q 1306501. Built 2013. Diesel Tank. Built 2013.

Used Equipment Facts About This Machine
Manufacturer Information
Manufacturer: Energy Fabrication
Model: TFH30P Indirect-Fired Heater / FRAC Heating Unit
Additional Components:

Trinity Containers LLC LP Tank (MC-331 Spec)

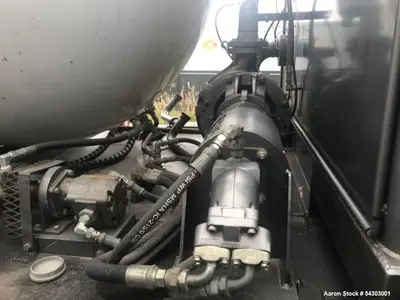

Diesel powered pump system
Integrated diesel tank

Energy Fabrication specializes in rugged, high-capacity heating and processing equipment designed for oilfield and frac support operations, offering reliable performance in demanding environments.
Description
Used Energy Fabrication Trailer Mounted FRAC Processing Trailer equipped with a Model TFH30P Indirect-Fired Heater delivering 30 MMBTU/hr heating capacity. This unit is designed for oilfield and hydraulic fracturing operations requiring efficient fluid heating and transport.
The system is mounted on a tri-axle trailer for mobility and includes a diesel-powered pump, onboard diesel tank, and a large 5,000-gallon LP (propane) tank for extended operation in remote locations.
The indirect-fired heater ensures safe and efficient heat transfer for frac fluids, while the heavy-duty construction and DOT-rated tank make this system suitable for field deployment. Built in 2013, this unit is designed for durability and compliance in demanding oilfield environments.
Specifications

Manufacturer: Energy Fabrication

Model: TFH30P

Equipment Type: Trailer mounted frac heating / processing unit

Trailer Type: Tri-axle

Heating Capacity: 30 MMBTU/hr

Heater Type: Indirect-fired

Fuel Type: Propane (LP Gas)

Pump: Diesel powered

Diesel Tank: Included

LP Tank Manufacturer: Trinity Containers LLC

LP Tank Capacity: 18,927 liters (5,000 gallons)

Tank Material: Carbon steel

Tank Dimensions:

OD: 80 inches
OAL: 262.88 inches

Pressure Rating: 250 PSI

Temperature Rating: -8°F to 125°F

Tank Type: Hemispherical heads

Max Lading Density: 4.223 lb/gal

DOT Specification: MC-331

LP Tank Serial #: Q 1306501

Heater Serial #: EFH30P-5000-274

Year Built: 2013

Applications

Hydraulic fracturing (frac) fluid heating
Oilfield service operations
Well stimulation support
Pipeline heating and maintenance
Industrial fluid heating
Remote job site processing
Energy sector support equipment
Petrochemical processing support
Temporary heating solutions
Field-based fluid conditioning

What Products Would This Be Used For

Fracturing fluids
Water and brine solutions
Oilfield chemicals
Industrial liquids
Process fluids
Pipeline fluids
Heating transfer fluids
Chemical solutions
Tank heating applications
Field storage and transport fluids
