USED NIRO MOBILE MINOR

🔹 Manufacturer Information

Manufacturer: GEA Niro A/S

Model: Mobile Minor

Type: MM-PSR

Year: 2008

ID Number: 3295

Order Number: 093-2147-1

Origin: Denmark (GEA Niro A/S)

🔹 Product Description

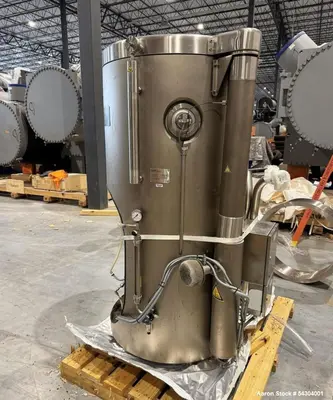

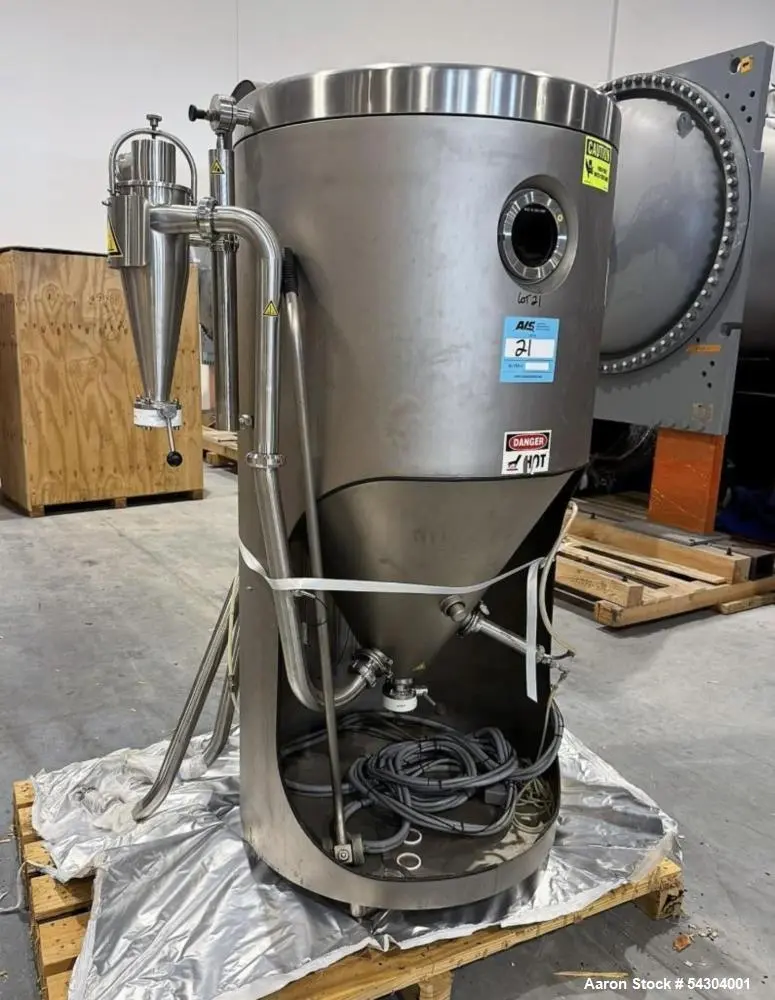

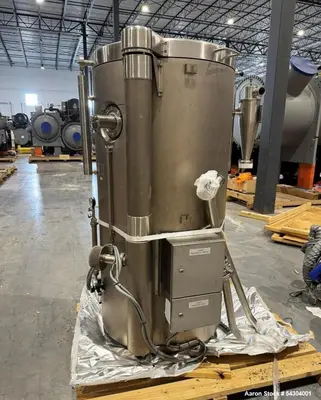

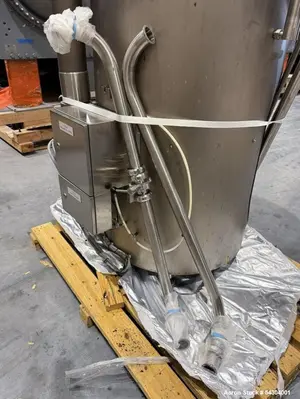

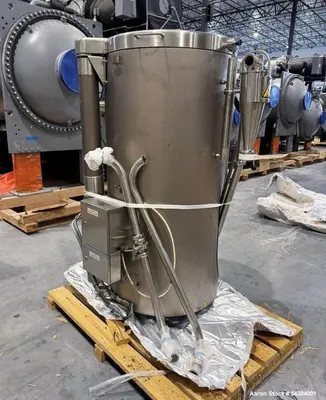

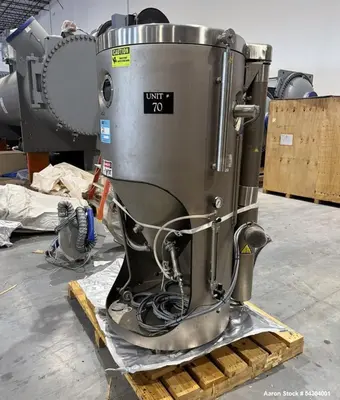

This Used GEA Niro A/S Mobile Minor Spray Dryer (Type MM-PSR) is a compact, stainless steel lab-scale spray drying system ideal for R&D, pilot plant work, and small-scale production. Built in 2008, it is capable of evaporating 1 to 7 kilograms (2.2 to 15.4 lbs) of water per hour, using an electrically heated drying chamber. The chamber features an 800mm diameter, 620mm straight side, and 60° coned bottom, with a maximum inlet temperature of 350°C (662°F). It includes a two-fluid bottom-up nozzle atomizer (0.8 mm), cyclone, blower, ladder, filter, and control panel. The air-operated lift-off top enables quick access and cleaning.
This model is ideal for processing powders from solutions, emulsions, or suspensions in a wide variety of industries, including food, pharmaceuticals, chemicals, and ceramics.

🔹 Key Specifications

Model: Mobile Minor

Type: MM-PSR

Material of Construction: Stainless Steel

Evaporation Capacity: Approx. 1 – 7 kg/hr (2.2 – 15.4 lbs/hr)

Heating Type: Electrically heated

Drying Chamber Dimensions:

Diameter: 800 mm (31.4")

Straight Side Height: 620 mm (24.4")

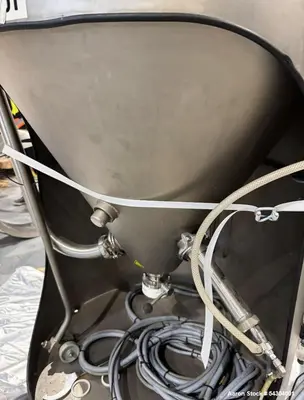

Bottom Cone: 60° angle

Max Inlet Temperature: 350°C (662°F)

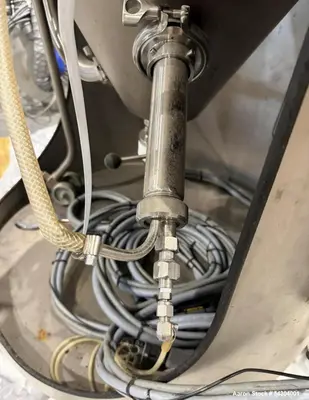

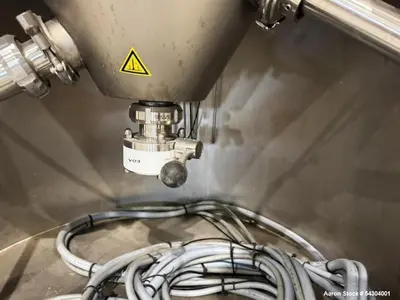

Atomizer: Two-fluid bottom-up nozzle, 0.8 mm component size

Features Included:

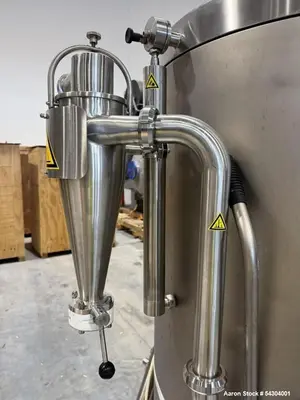

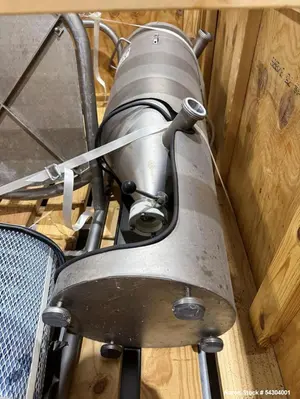

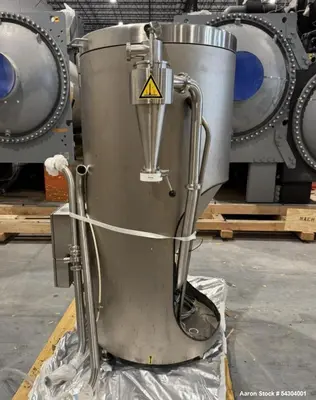

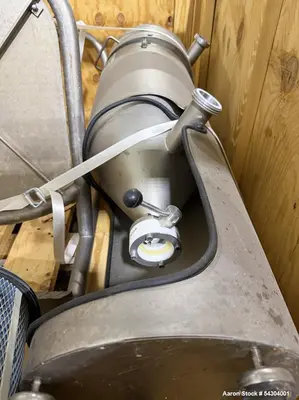

Cyclone separator

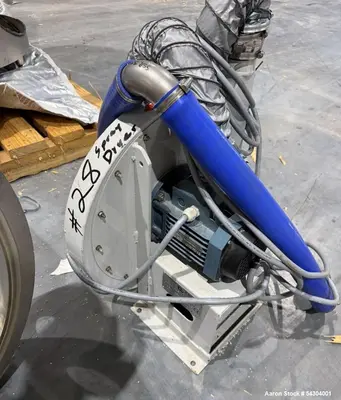

Blower

Air-operated lift-off top

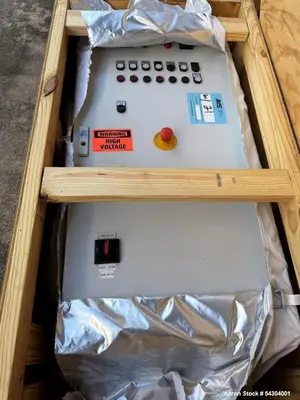

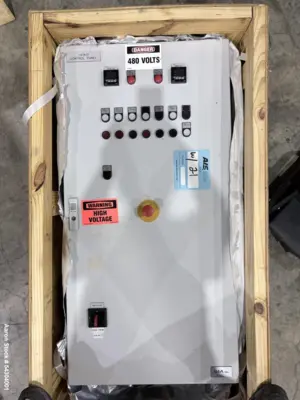

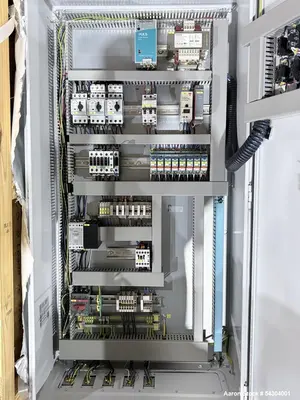

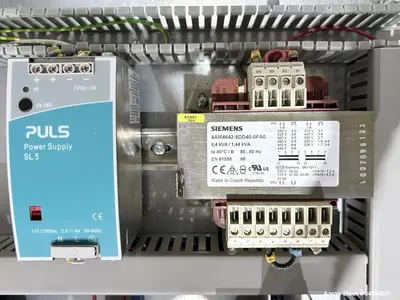

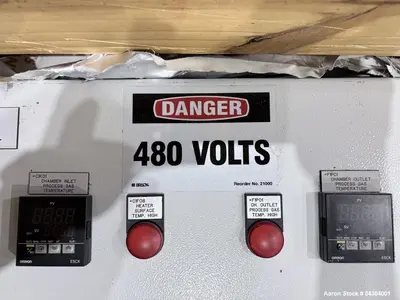

Control panel

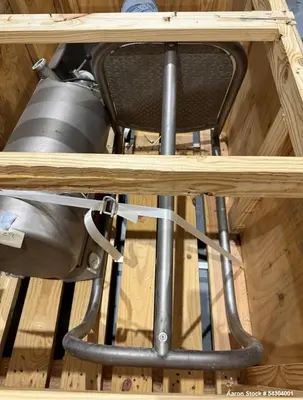

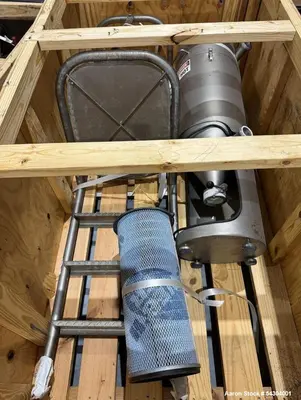

Stainless steel ladder

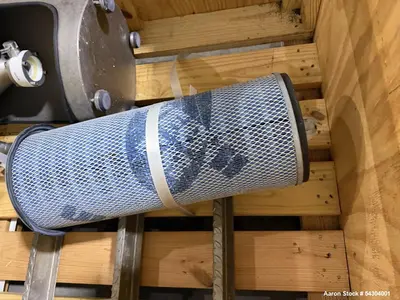

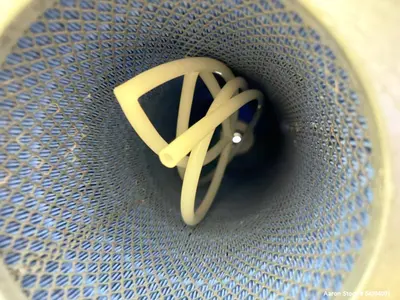

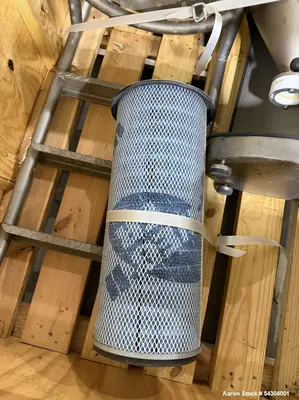

Filters

Year: 2008

Condition: Used, good working condition

🔹 Applications

Spray drying of food ingredients and flavors

Pharmaceutical powder development

Chemical and catalyst powders

Ceramic powders and fine particles

R&D in universities and research labs

Pilot plant production

Spray drying emulsions, suspensions, or solutions

Nutraceuticals and dietary supplements

Powder formulation studies

Thermosensitive material processing

🔹 Products This Unit Would Be Used For (Bulleted)

Dairy powders (e.g., whey, milk proteins)

Pharmaceuticals (e.g., APIs, excipients)

Flavors and aromas

Nutritional supplements and probiotics

Herbal extracts and botanical powders

Pigments and dyes

Fine ceramics and advanced materials

Enzymes and proteins

Chemical catalysts

Laboratory-grade spray-dried materials
