Unused Gemco 1 CF Double Cone Vacuum Dryer – Stainless Steel Vacuum Dryer with A

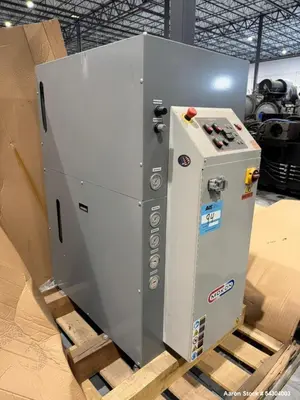

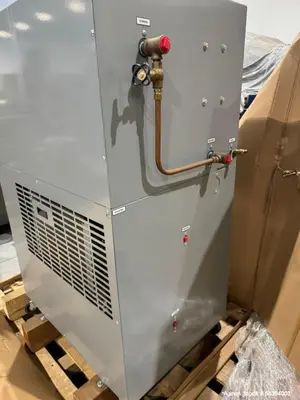

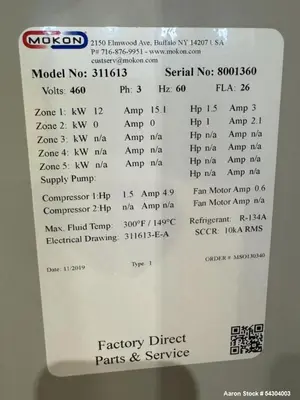

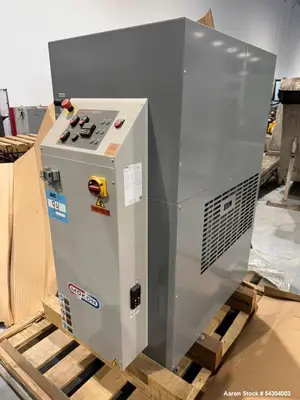

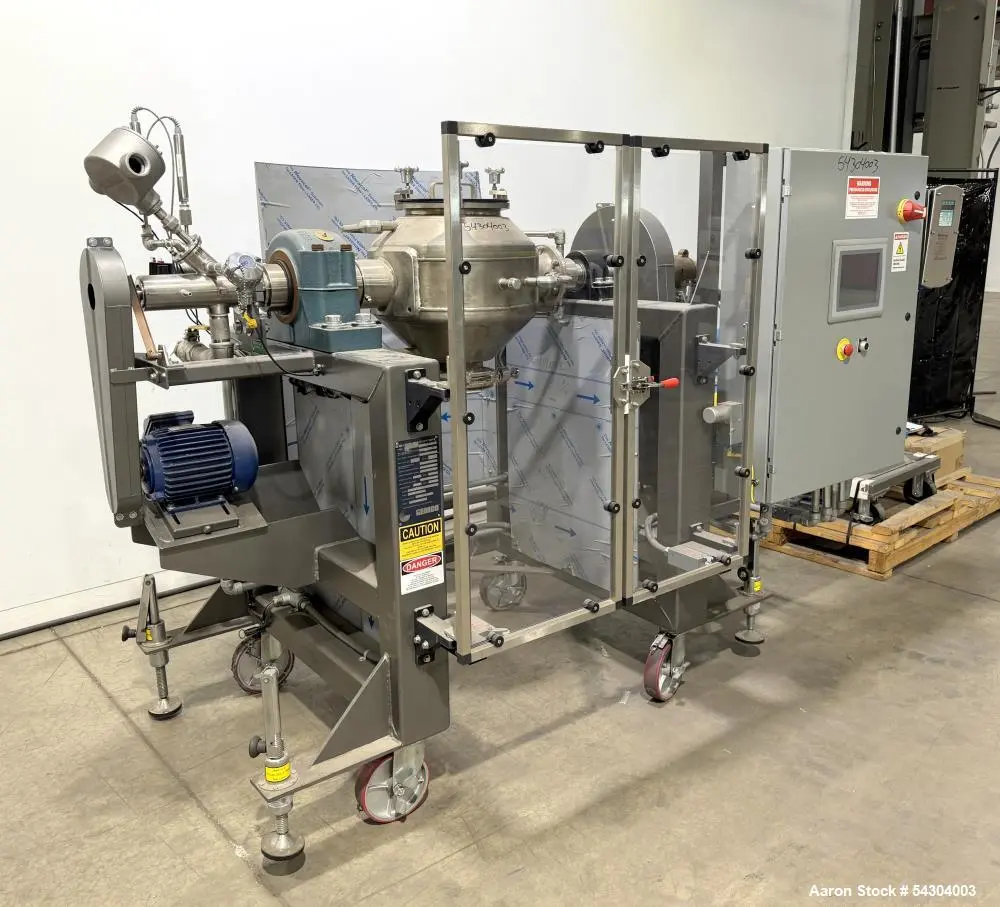

Unused Gemco 1 Cubic Foot Double Cone Vacuum Dryer, Model 1 CF Formulator, Stainless Steel. Vessel Approximately 18" diameter x 8" straight side with clamp on covers. 325 Lbs/Cubic Feet Max Density. 2.4-24.2 rpm Vessel Speed. 550-3300 rpm agitator speed. Internal rated 14.9 FV at 250 Degrees F. Jacket rated 50 psi at 250 Degrees F. 11" top opening, 6" center bottom outlet with valve, 42" discharge height. Driven by a 1-1/2hp, 3/60/230/460 volt, 3600rpm motor through reducer, 28"1 ratio. Lump breaker driven by a 2hp, 3/60/230/460 volt, 3490rpm motor. Mounted Control Panel with (2) AB Powerflex 525 Controllers, AB CompactLogix, and AB Panelview Plus 7. Includes Mokon Model 311613 temperature control unit, Liquid Ring Pump Skid and Control Panel. Mounted on frame with casters and plexiglass shroud. National Board# 3291, Serial# GVD19048. Built 2020.

Used Equipment Facts About This Machine
Unused Gemco 1 CF Double Cone Vacuum Dryer – Stainless Steel Vacuum Dryer with Agitator & Lump Breaker (2020)
Manufacturer: Gemco
Model: 1 CF Formulator
Machine Type: Double Cone Vacuum Dryer / Blender
Capacity: 1 Cubic Foot
Construction: Stainless Steel
Drive: 1.5 HP Main Motor + 2 HP Lump Breaker
Controls: Allen-Bradley PLC & HMI System
Year Built: 2020
Condition: Unused

Description

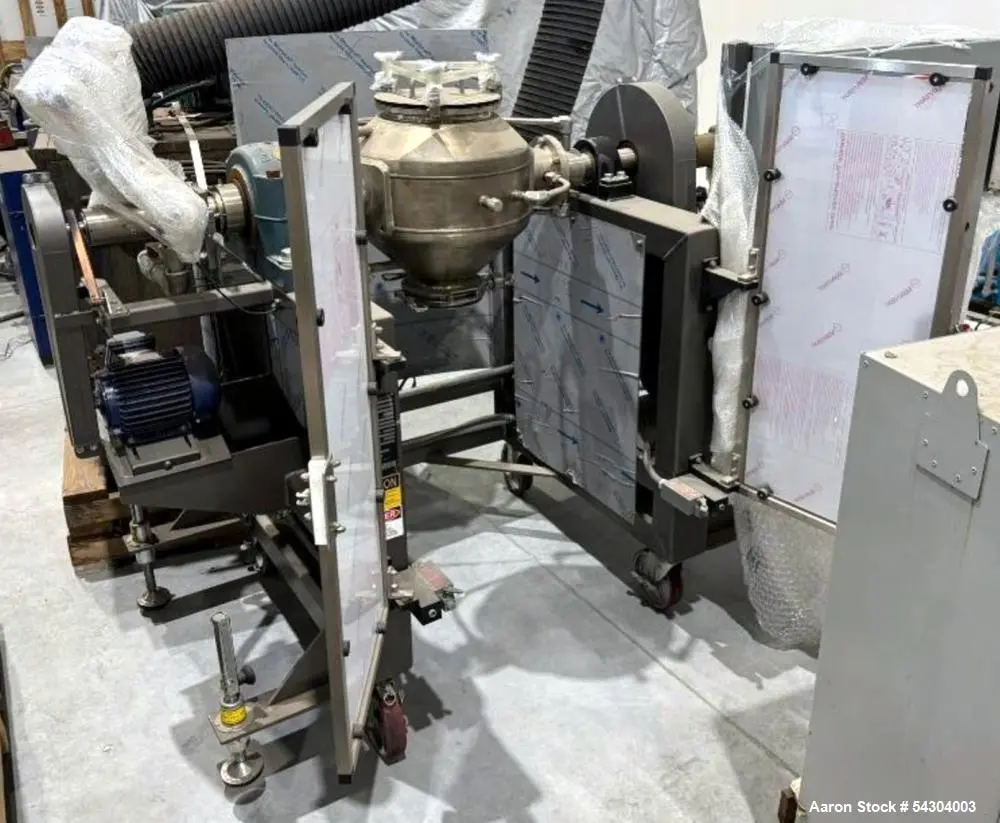

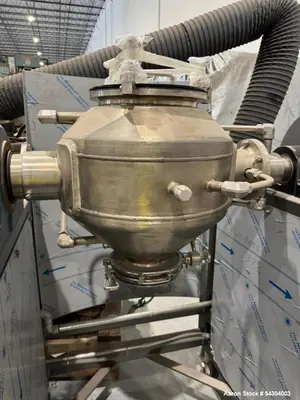

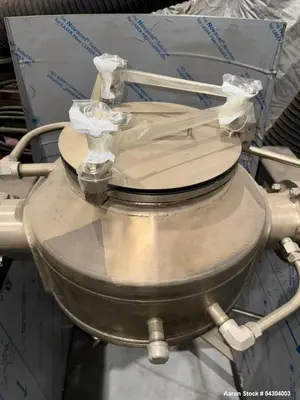

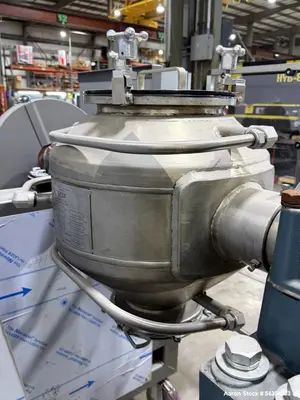

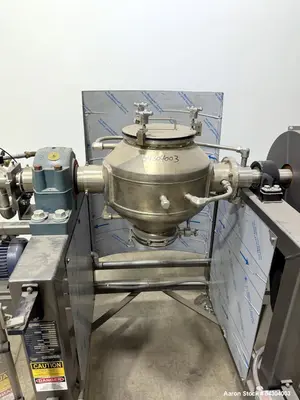

Unused Gemco 1 cubic foot double cone vacuum dryer, designed for gentle drying, blending, and solvent removal under vacuum conditions. This unit features a stainless steel vessel approximately 18" diameter x 8" straight side, with clamp-on covers for easy access and cleaning.
The dryer operates under full vacuum (14.9 PSIG) at temperatures up to 250°F, allowing efficient low-temperature drying of heat-sensitive materials. The jacket is rated to 50 PSI, enabling precise heating through thermal media.
This system includes an internal agitator with variable speed (550–3300 RPM) and a lump breaker (2 HP) for improved material consistency and de-agglomeration. The vessel rotates at 2.4–24.2 RPM, ensuring uniform mixing and drying.

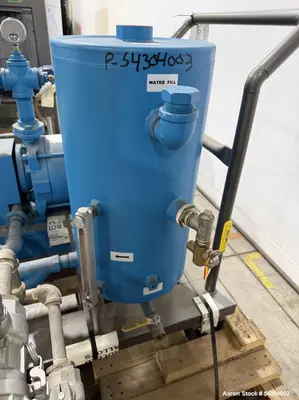

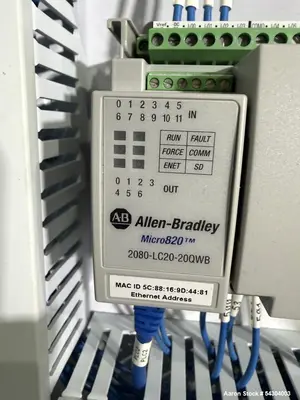

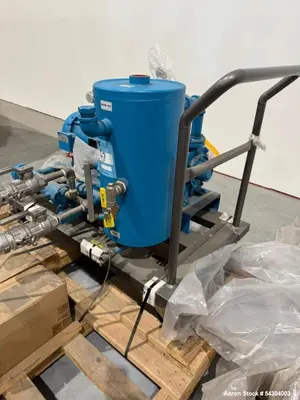

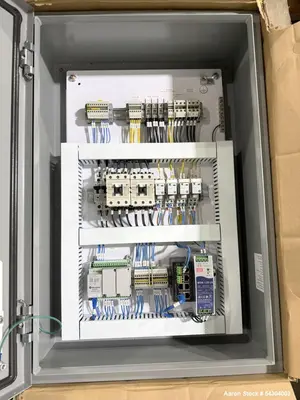

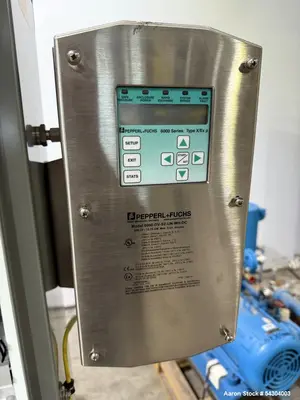

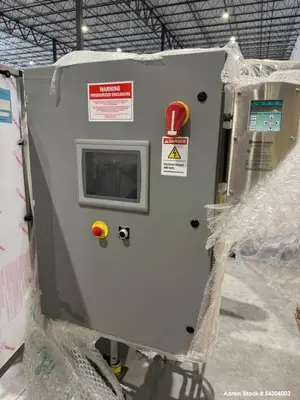

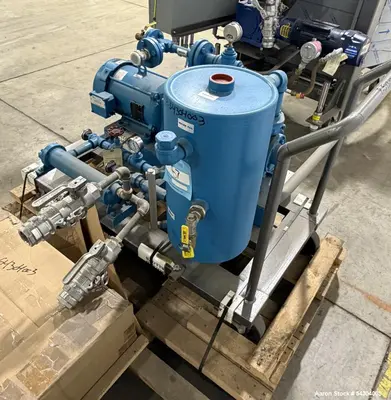

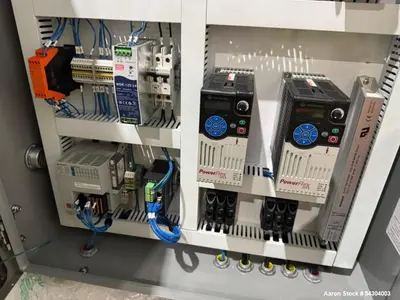

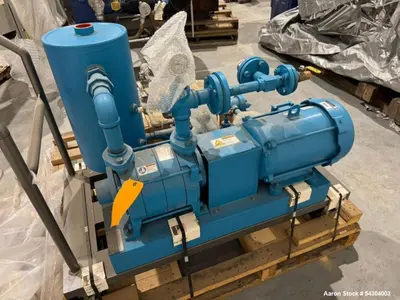

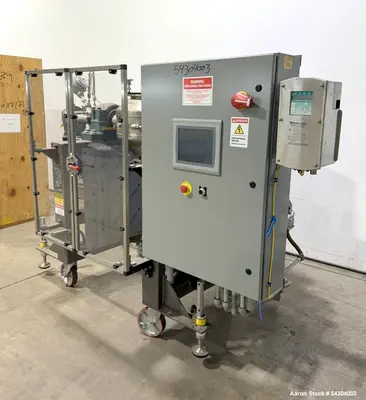

Equipped with a liquid ring vacuum pump skid and control panel, this unit provides a complete vacuum drying solution. The Allen-Bradley control system (PowerFlex 525 drives, CompactLogix PLC, PanelView Plus 7 HMI) ensures advanced automation, monitoring, and process control.

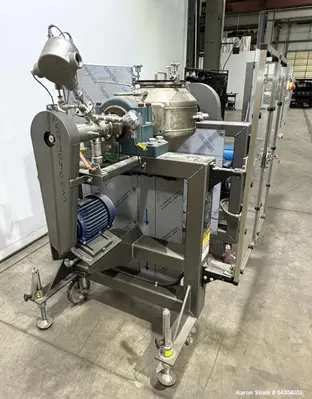

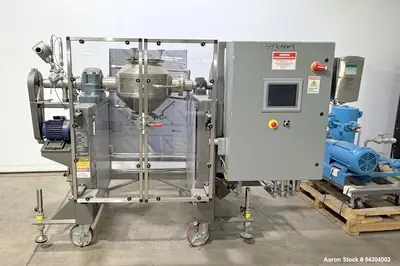

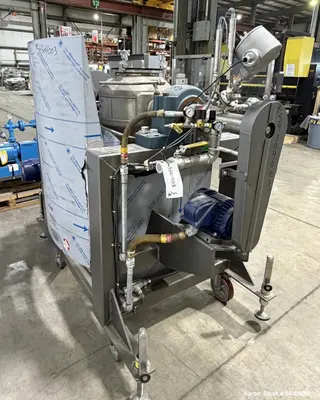

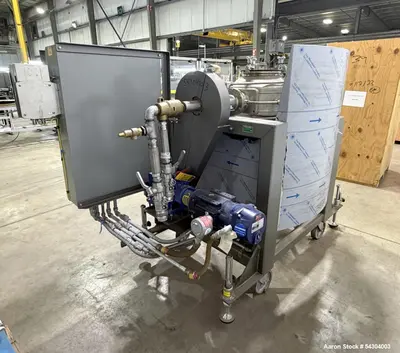

Mounted on a mobile frame with casters and plexiglass safety shroud, this dryer is ideal for laboratory, pilot, or small-scale production environments.

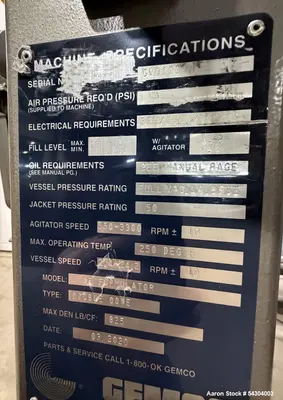

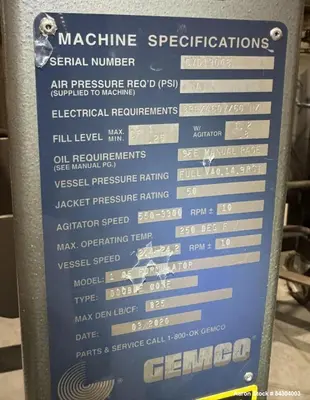

Specifications

Manufacturer: Gemco

Model: 1 CF Formulator

Machine Type: Double cone vacuum dryer

Capacity: 1 cubic foot

Vessel Dimensions: Approx. 18" dia x 8" straight side

Top Opening: 11"

Bottom Outlet: 6" center discharge with valve

Discharge Height: Approx. 42"

Max Density: 325 lbs/cubic foot

Internal Rating: 14.9 PSIG full vacuum @ 250°F

Jacket Rating: 50 PSI @ 250°F

Vessel Speed: 2.4 – 24.2 RPM

Agitator Speed: 550 – 3300 RPM

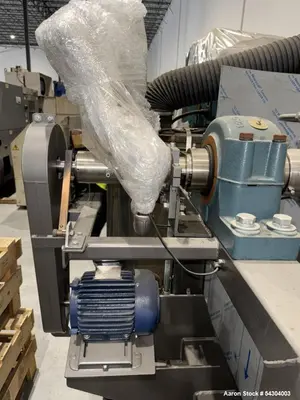

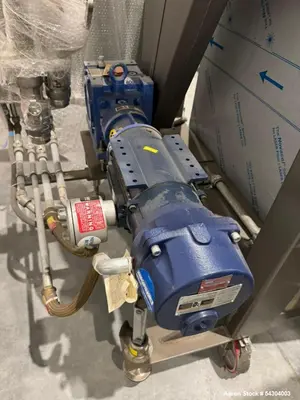

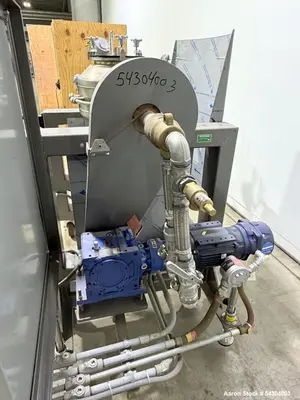

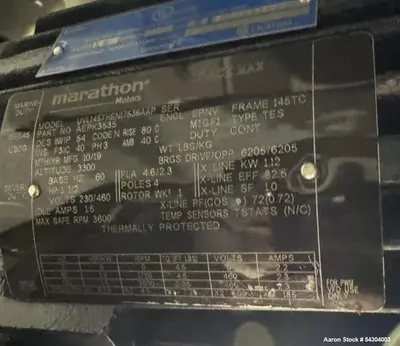

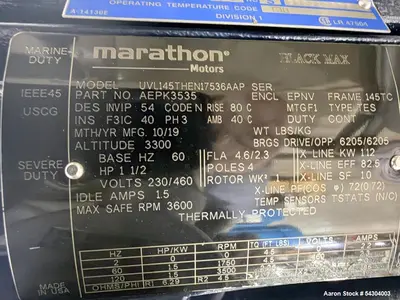

Main Drive Motor: 1.5 HP, 3/60/230/460V, 3600 RPM

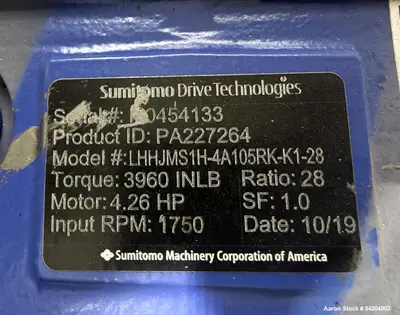

Gear Reduction: Approx. 28:1

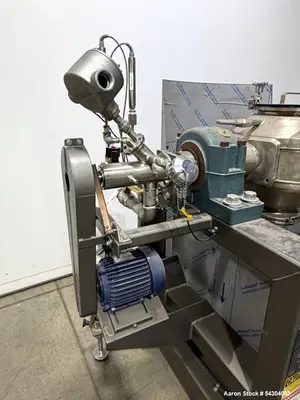

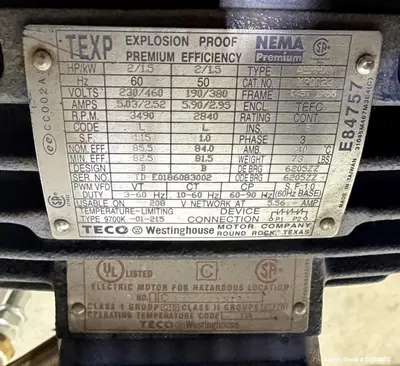

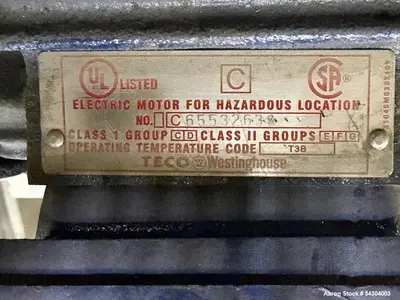

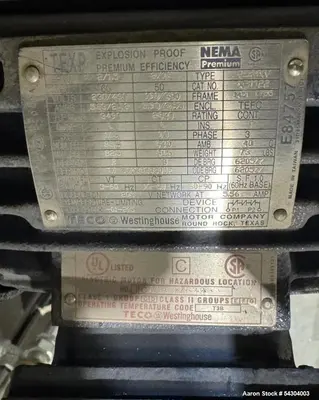

Lump Breaker Motor: 2 HP, 3/60/230/460V, 3490 RPM

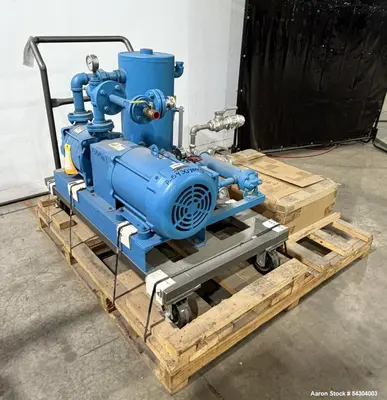

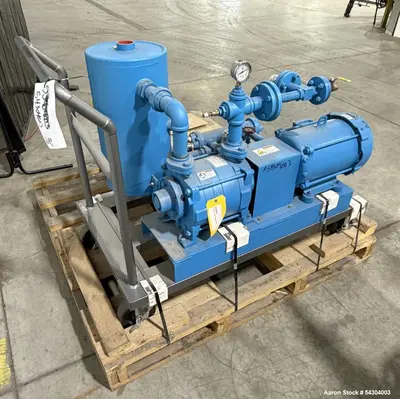

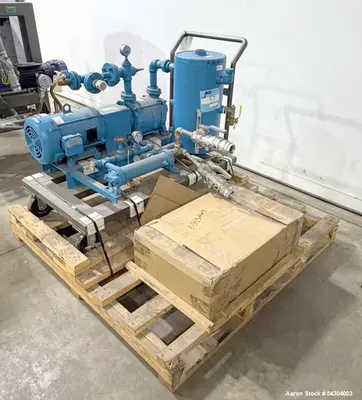

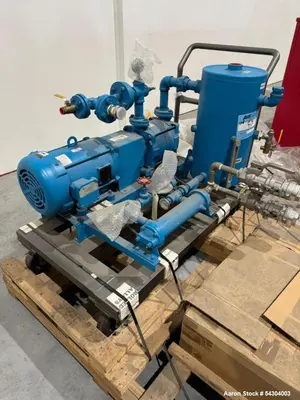

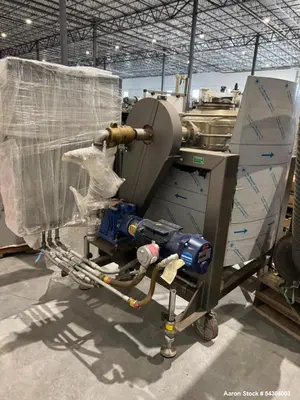

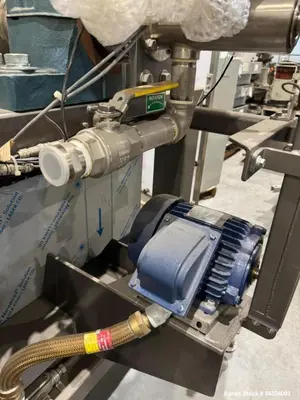

Vacuum System: Liquid ring pump skid included

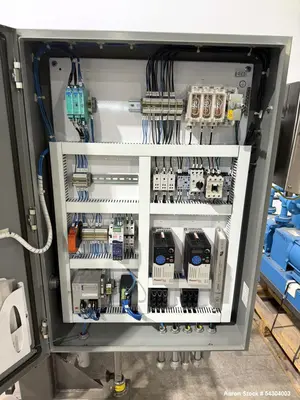

Controls:

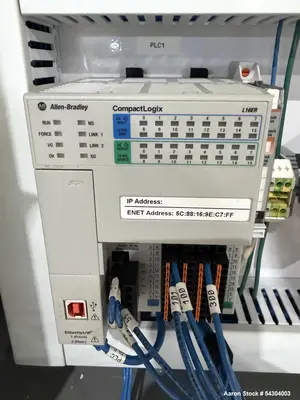

Allen-Bradley CompactLogix PLC

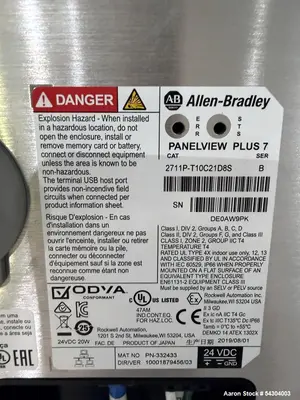

PanelView Plus 7 HMI

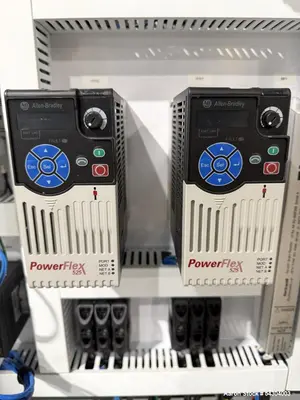

(2) PowerFlex 525 drives

Mounting: Frame with casters

Safety: Plexiglass enclosure/shroud

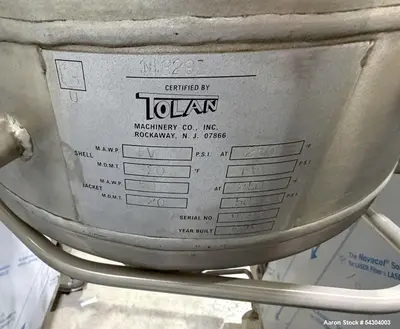

National Board #: 3291

Serial #: GVD19048

Year Built: 2020

Condition: Unused

Applications
This vacuum dryer is commonly used for:

Pharmaceutical drying

Chemical powder drying

Solvent removal

Food ingredient drying

Nutraceutical processing

Powder blending

Specialty chemical processing

Heat-sensitive material drying

Pilot plant drying

Laboratory scale production

What Might This Be Used For

Drying pharmaceutical powders

Removing solvents from chemicals

Blending powders under vacuum

Processing heat-sensitive materials

Drying nutraceutical ingredients

Mixing and drying food powders

Producing specialty chemical blends

De-agglomerating materials with lump breaker

Small batch production

R&D drying applications

Materials This Machine Can Process

Pharmaceutical powders

Chemical compounds

Nutraceutical ingredients

Food powders

Specialty chemicals

Fine powders

Crystalline materials

Heat-sensitive materials

Active ingredients

Blended formulations

Manufacturer Information
Gemco is a leading manufacturer of mixing, drying, and material processing equipment, specializing in double cone dryers, blenders, and vacuum processing systems. Their equipment is widely used in pharmaceutical, chemical, and food industries, known for gentle handling, efficient drying, and high-quality construction.
