USED 2015 Okuma Multus U4000 2SW/1500

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Collision Avoidance Software

Additional Machine Specs: X-Axis Travel (Lower): 9.25"

Y-Axis Travel: +/- 11.8"

Z-Axis Travel (Lower): 60"
W-Axis Travel (Sub Spindle): 60"
C-Axis Indexing: 0.001 Degree

B-Axis Indexing: 240 Deg.



C- Axis on Both Spindles

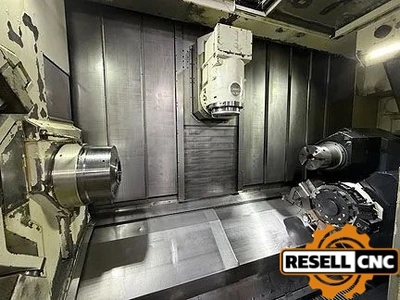

Dual Spindles (Main & Sub)

Auto Door with Dual Start

Touchsetter A for 2S

4’ Bar Support System

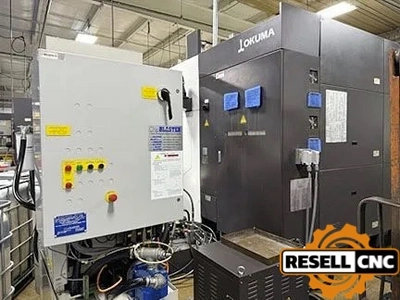

Chip Blaster High Pressure Coolant

Bar Capacity: 4.0
B Axis: true
C Axis: true
Chip Removal: Chip Conveyor

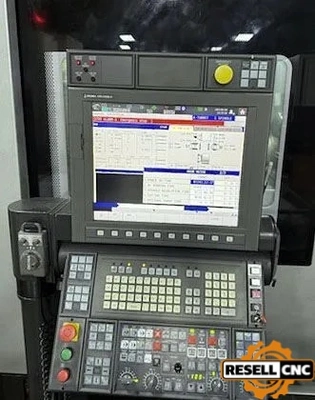

Control Make Model: Okuma OSP-P300S-H CNC Control
Coolant Type S: High Pressure Coolant
Distance Between Centers: 78.74
Live Milling Max Rpm: 12000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Auto Door, Big Bore
Max Cutting Turning Diameter: 25.59
Max Swing Over Bed: 25.59
Programmable Tailstock: false
Second Spindle Nose: JIS A2-8
Single Turret: true
Single Turret Live Tooling: true
Spindle Motor: 30
Spindle Nose: JIS A2-8
Spindle Speed: 4200.0
Sub Spindle: true
Tailstock: false

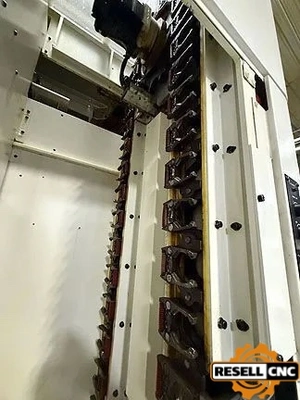

Tool Positions: 80.0
Twin Turret: false
X Travel: 27.36
Y Axis: true
Z Travel: 62.99
