Used 1978 TOS W9A Horizontal Table Type Boring Mills Ontario CA | Avo's Machinery Equipment Inc. #470540
Used

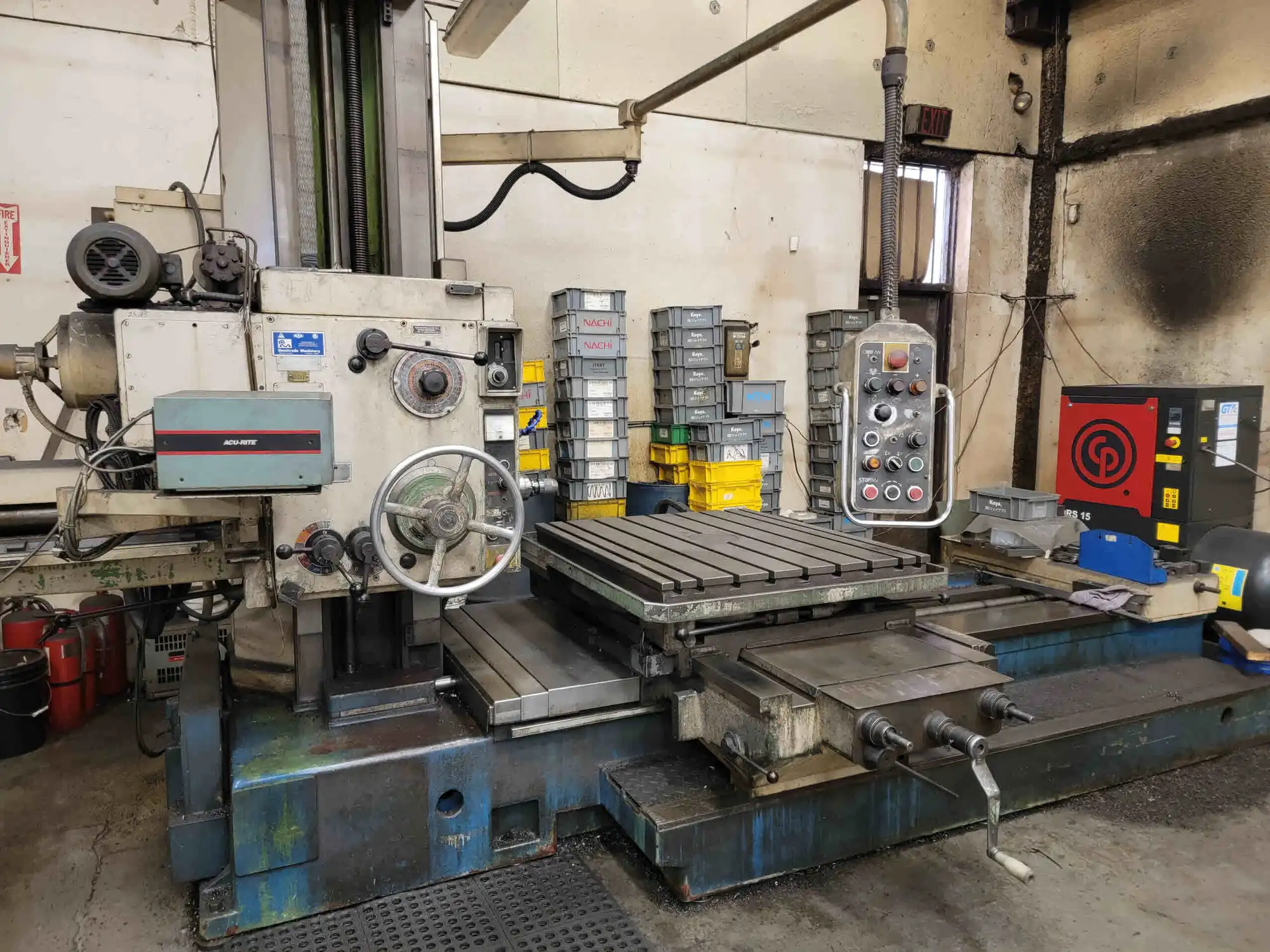

USED 1978 TOS W9A

Ontario, Canada

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Avo's Machinery Equipment Inc.
60Listings|28Followers
View seller profile
Overview
Horizontal Table Type Boring Mills
TOSW9A1978

Machine is in Excellent Condition & Ready For Inspection.

Specs
Spindle Size
3.5"
88.9 mm
X-Horiz Tvl of Table
50"
1,270 mm
Y-Vert Tvl of Head
45"
1,143 mm
Power
15 hp
11.2 kW
RPM
1,400 RPM
1,400 RPM
Table-W
39"
990.6 mm
Table-L
44"
1,117.6 mm
Spindle Tvl.
28"
711.2 mm
Dimensions
220”L x 70”W x 116”H
220”L x 70”W x 116”H
Weight
25,000 Lbs
25,000 Lbs

Specifications:

Model - W-9A
Year - 1978
Spindle Diameter - 3.5”
Rotary Table (T-Slots) - 39” x 44”
X Axis (Cross Travel) - 50”
Y Axis (Vertical Travel) - 45”
W Axis (Longitudinal Travel) - 65”
Z Axis (Spindle Travel) - 28”
Spindle Taper - 40
Spindle Speeds - 28 to 1400 RPM
Max Work Piece Weight - 6,600 LBS
Main Motor - 15 HP
Electrics - 480V/3PH/60HZ
Made In - Czechoslovakia
Approximate Weight - 25,000 LBS
Approximate Overall Dimension - 220”L x 70”W x 116”H

Equipped With:

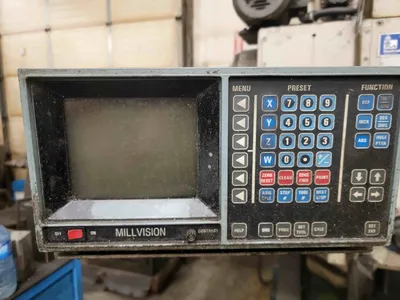

Millvision Four Axis Digital Readout

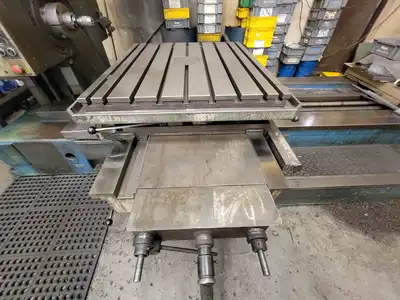

Built In T-Slotted Rotary Table

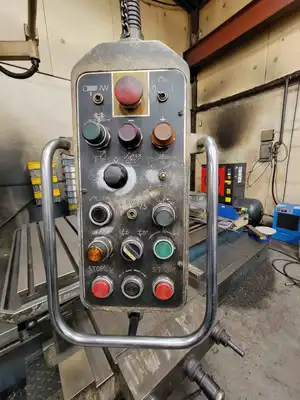

Pendant Control
Coolant System

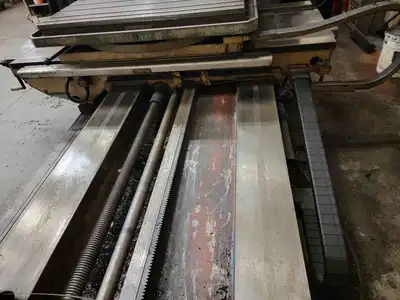

Harden Ways

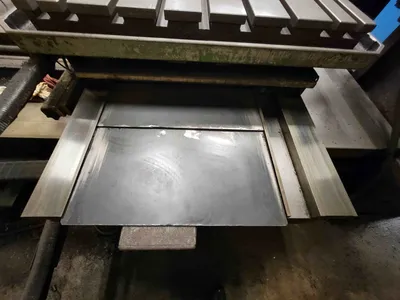

Way Covers
