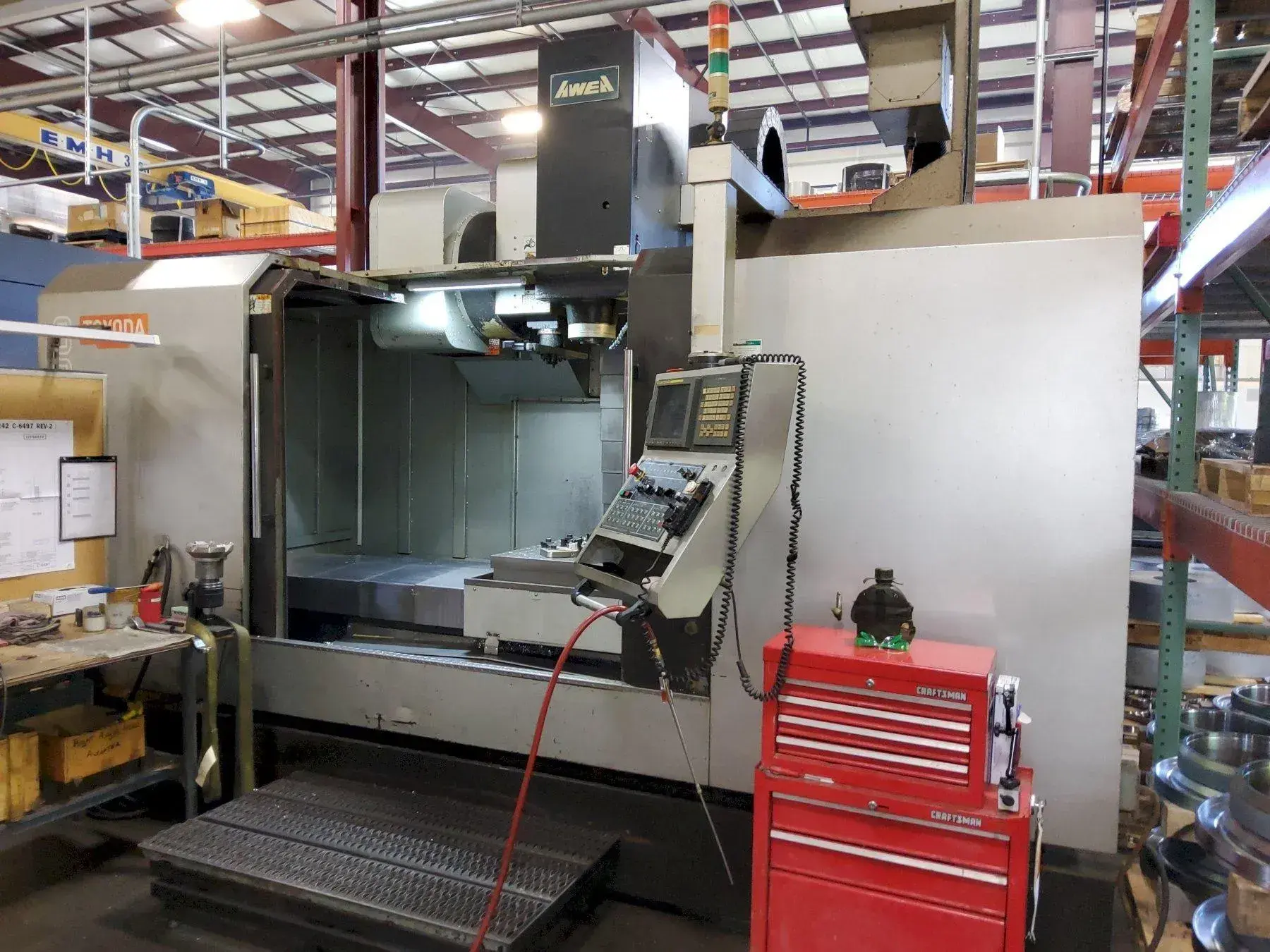

2006 TOYODA AWEA BM 1600 CNC Vertical Machining Center, used. Features 51.18" x 23.62" table, 6000 RPM spindle, 25 HP motor, 30 ATC. Equipped with FANUC 18IMB CNC control, chip conveyor, and spindle chiller, high pressure thru spindle coolant and filtration.
| Number Of Tables / Pallets | 1 | 1 |
| Table-L | 67" | 1,701.8 mm |
| Table-W | 31.5" | 800.1 mm |
| Weight on Table | 4,409 lb | 1,999.9 kg |
| X - Axis Travel | 63" | 1,600.2 mm |
| Y - Axis Travel | 31.5" | 800.1 mm |
| Z - Axis Travel | 31.5" | 800.1 mm |
| Rapid Traverse Rate - X | 787 in/min. | 20 m/min. |
| Rapid Traverse Rate - Y | 787 in/min. | 20 m/min. |
| Rapid Traverse Rate - Z | 787 in/min. | 20 m/min. |
| Spindle Speed | 6,000 RPM | 6,000 RPM |
| Spindle Taper | 50 | 50 |
| Number of Gear Ranges | 2 | 2 |
| Main Motor | 25 hp | 18.6 kW |
| Machine Weight | 33,000 lb | 14,968.6 kg |
| Automatic Tool Changer | 30 | 30 |
| Control | CNC (FANUC 18I-MB CNC COLOR CONTROL) | CNC (FANUC 18I-MB CNC COLOR CONTROL) |
| Weight | 30864.00 | 30864.00 |
ALL AVAILABLE MANUALS
FANUC 18IMB CNC COLOR CONTROL
MANUAL GUIDE I CONVERSATIONAL PROGRAMMING
COOLANT THRU THE SPINDLE
PREWIRED FOR 4TH AXIS
TOOL OFFSETS 200 PAIRS
POLAR COORDIANTE/CYLINDRICAL/HELICAL INTERPOLATION
CUSTOM MACRO B
GRAPHIC FUNCTION
DATA SERVER FUNTION
AI NANO CONTOUR CONTROL
AUTOMATIC CORNER DECELERATION
HANDWHEEL INTERRUPTION
PITCH ERROR COMP., CUSTOM MACRO B, CHAMFERRING/ CORNER R, INCH/METRIC SELECTION
MACRO EXECUTOR, SCALING,COORDINATE SYSTEM ROTATION,PECK DRILLING CYCLE
TOOL LIFE MANAGEMENT, CUTTER COMP C, 1280M PART PROGRAM STORAGE
CHIP CONVEYOR
