Machine is in Excellent Condition & Ready For Inspection.
| Table-W | 24" | 609.6 mm |
| Table-L | 104" | 2,641.6 mm |
| # Axis | 4 | 4 |
| Travel-Long | 86" | 2,184.4 mm |
| Travel-Cross | 43" | 1,092.2 mm |
| RPM | 1,500 RPM | 1,500 RPM |
| Taper | 50 | 50 |
| Control | CNC (Mitsubishi M-H5A) | CNC (Mitsubishi M-H5A) |
| Dimensions | 149”L x 96”W x 117”H | 149”L x 96”W x 117”H |
| Weight | 18,000 Lbs | 18,000 Lbs |
Specifications:
Model - FMT-TM4
Year - 10/1996
Table Size - 24” x 104”
Cross Travel (X Axis) - 86”
Vertical Travel (Y Axis) - 43”
Longitudinal Travel (Z Axis) - 43”
Spindle Taper - 50
Vertical Head Spindle Speeds - 40 to 1500 RPM
Horizontal Head Spindle Speeds - 21 to 1235 RPM
Control - Mitsubishi
Electrics - 220V/3PH/60HZ
Made In - Italy
Approximate Weight - 18,000 LBS
Approximate Overall Dimension - 149”L x 96”W x 117”H
Equipped With:

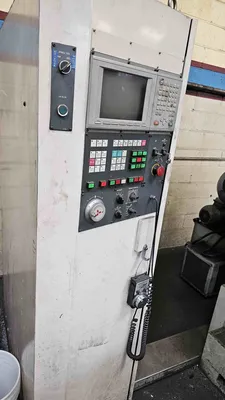

Mitsubishi M-H5A CNC Control

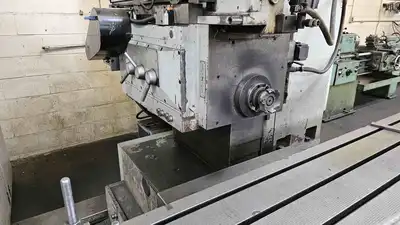

Horizontal & Vertical Head
Hand Pendant
Coolant System
Hydraulic System
Harden Ways
Way Covers
Work Light
