New 2014
| X | 43.3" | 1,099.8 mm |
| Y | 27.56" | 700.02 mm |
| Z | 24" | 609.6 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 24 | 24 |
| Taper | 40 CT | 40 CT |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc oi-MD) | CNC (Fanuc oi-MD) |
| Dimensions | 114 x 110 x 99 | 114 x 110 x 99 |
| Weight | 15840 | 15840 |

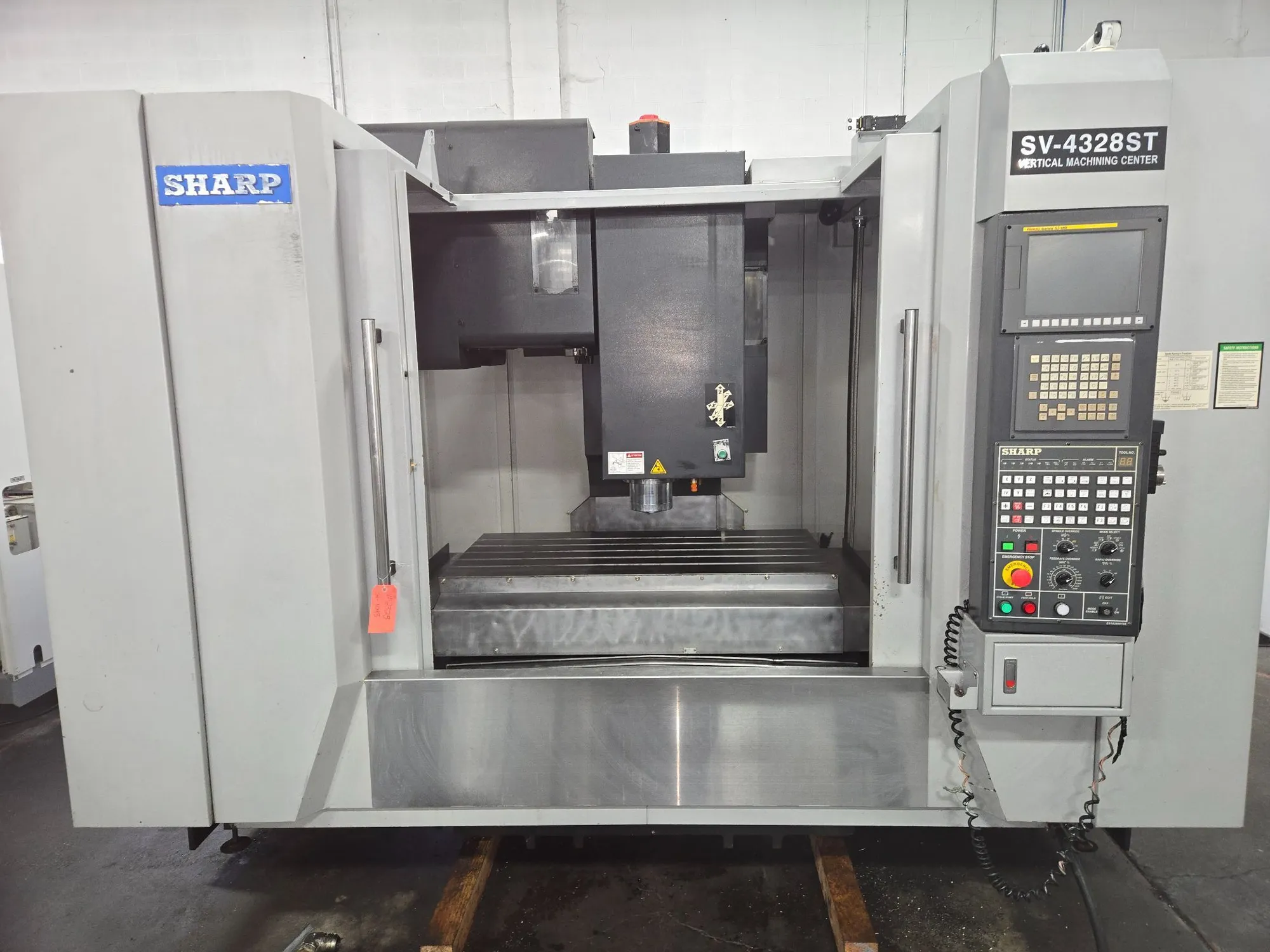

Sharp #SV-4328ST Box Way Vertical Machining Center
S/N 1048
New: 2014

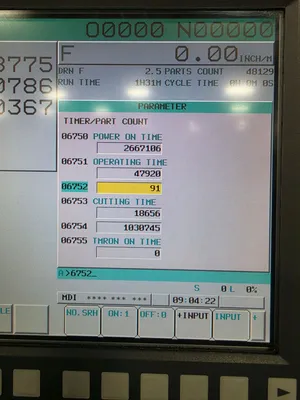

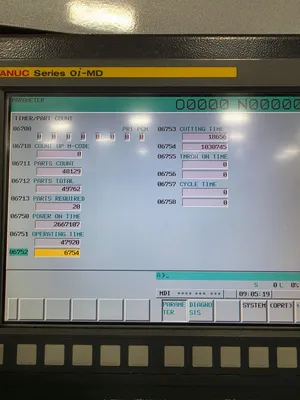

Fanuc oi-MD Controller
Fanuc High Speed Options and Tuning installed
Productivity Package
Table Size: 51.2" x 25.6"
Max Weight Table: 2,200 Lbs.
43.3" X Travel
27.56" Y Travel
24" Z Travel
Box Ways
Spindle Speed: 10,000 RPM
10.000 RPM Steel Bearings
Spindle Taper: 40 CT
ATC# 24
Main Motor: 25 HP
Chip Blaster High Pressure Coolant Thru Spindle
Spindle Chiller
Large Side Doors
Approximate Dimensions: 114" x 110" x 99" High
Machine Weight: 15,840 Lbs.
