USED 2018 HOMAG Optimat KDF 440 GC
Overview
Description

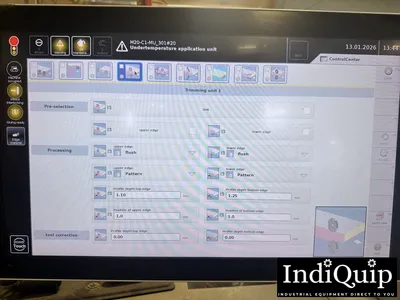

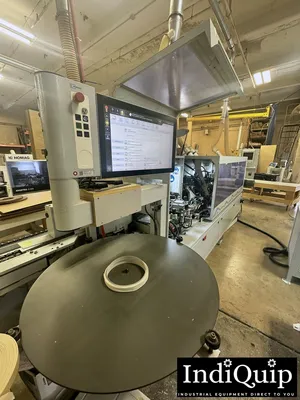

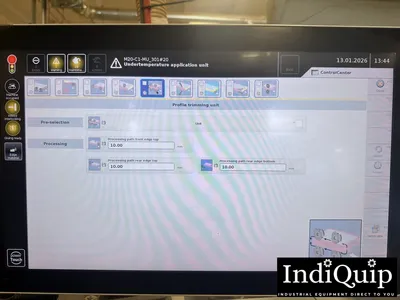

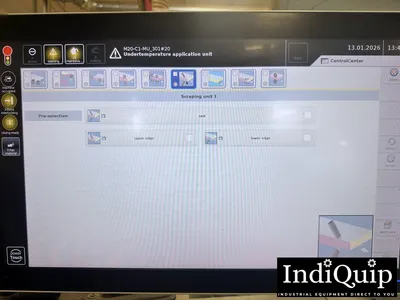

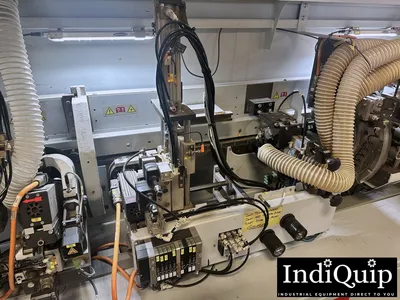

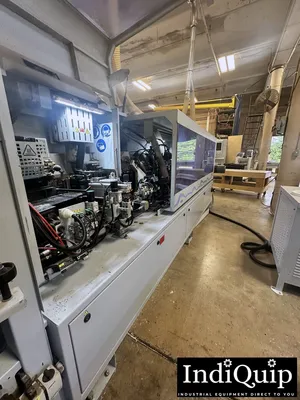

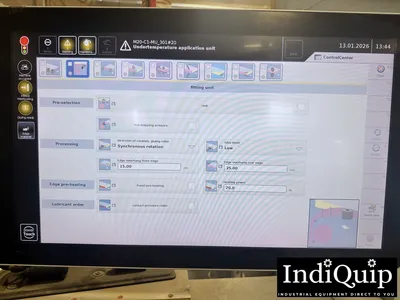

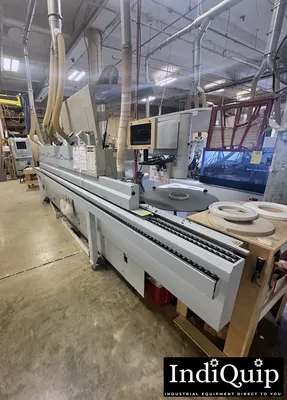

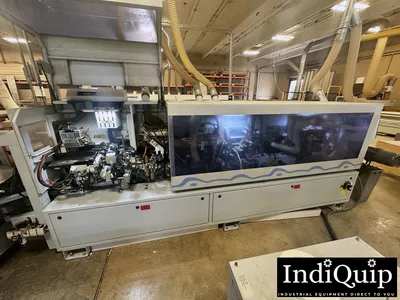

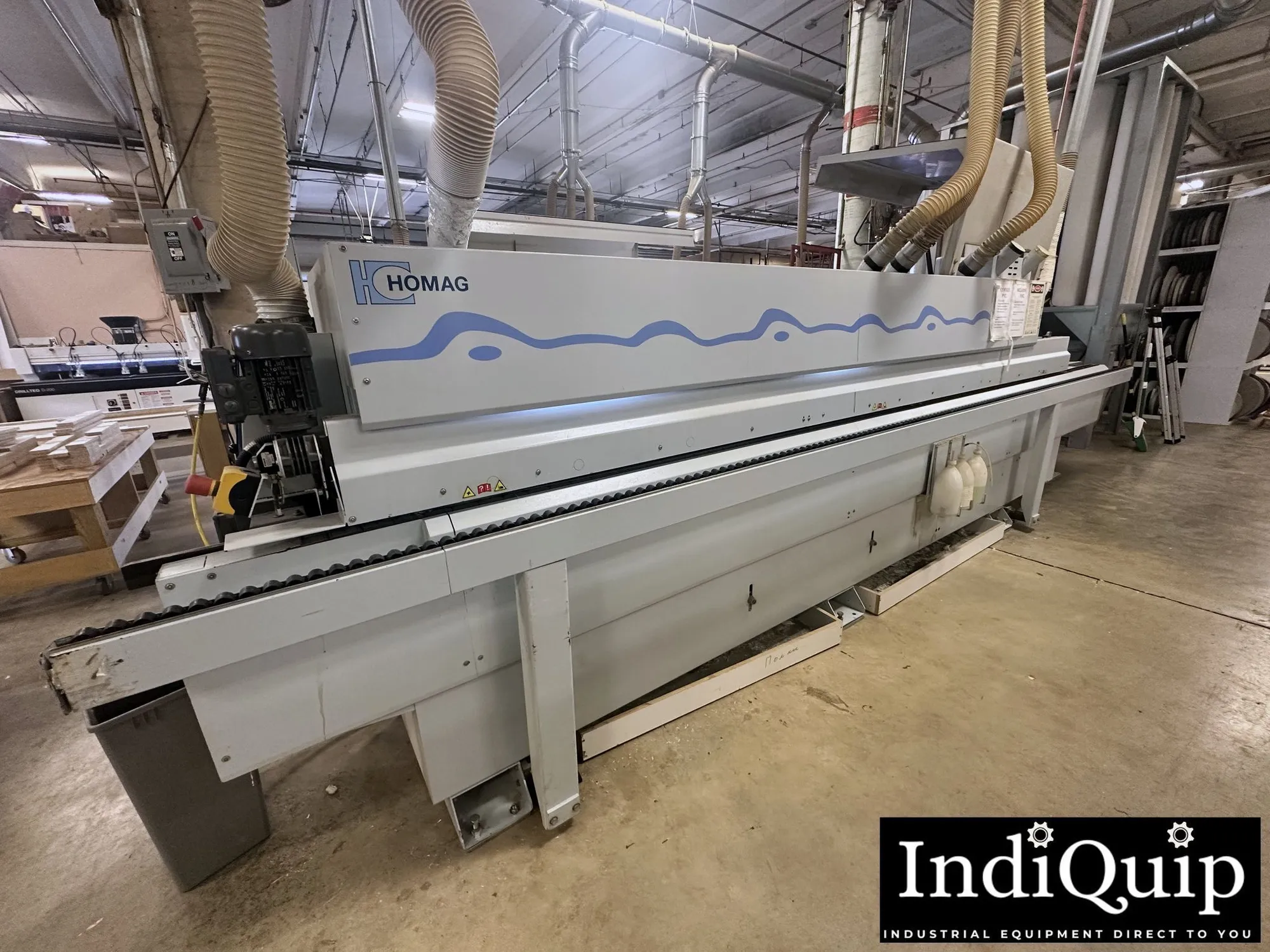

2018 HOMAG Optimat KDF 440 GC Industrial Edgebander. Features PowerTouch control, Pre-Milling with diamond heads, and Corner Rounding for a perfect finish. Handles 5/16"–2-3/8" workpieces with automated Multi-Stage profile changes. Reliable German engineering for high-production shops. 400V/3PH/60Hz. 4,100 lbs.
Specifications
Workpiece Thickness: 5/16" – 2-3/8"
Edge Thickness (Strips/Solid Wood): 0.016" – 5/16"
Edge Thickness (Coiled Material): Up to 1/8" (3 mm)
Minimum Panel Length: 6-3/8"
Minimum Panel Width: 2-3/4"
Feed Speed: Variable 26 – 46 feet per minute (FPM)
Typical Working Feed Speed: 36 FPM
Overall Machine Length: 220" (approx. 18.3 ft)
Overall Machine Width: 61"
Overall Machine Height: 68" – 69"
Working Table Height: 37.4"
Approximate Machine Weight: 4,100 – 4,500 lbs
Pre-Milling Motors (2): 3.0 HP each
End Trimming Motors (2): 0.5 HP each
Fine Trimming Motors (2): 0.75 HP each
Corner Rounding Motor: 0.5 HP
Feed Motor: 3.0 HP
