| size | 8" Chuck | 8" Chuck |
| Swing | 16.5" | 419.1 mm |
| Machining Length | 21.619" | 549.12 mm |
| Chuck Size | 7.862" | 199.69 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 8.6" | 218.44 mm |

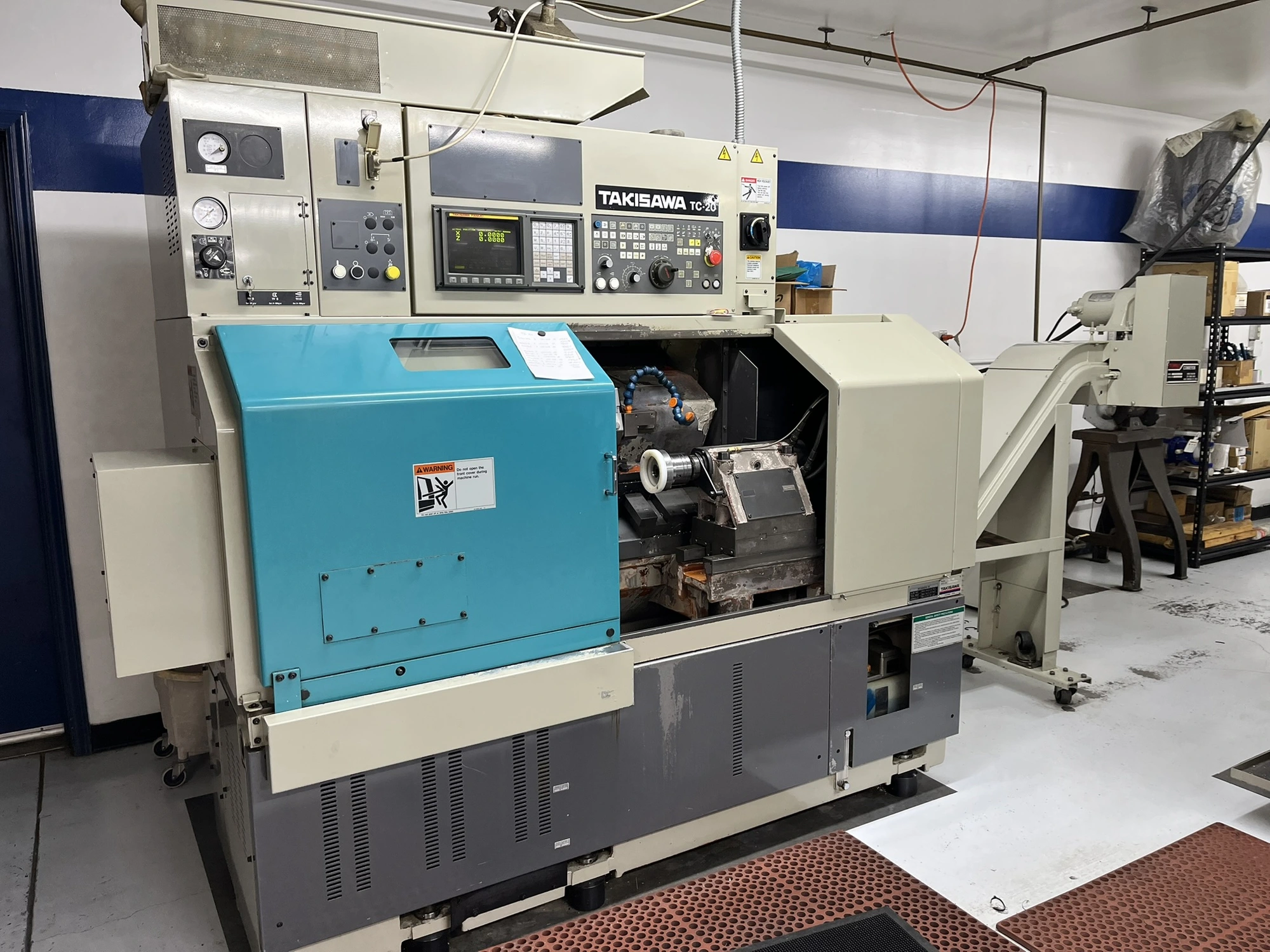

Takisawa TC-20 L6 CNC Lathe
Max RPM is 4000. Travels are X Axis 5.5" (140mm) and Z Axis 25.2" (640mm). Has 8 position turret and 10 hp spindle motor, 41 gallon coolant tank. Weight is 6600 lbs. Floor space is 50" x 142" (including chip conveyor, 82" without) x 75" height. Swing over bed = 16.5", Swing over carriage = 9", Max turning dia = 9.5", Max turning length = 23.9".
New Autoblok 8" 3 jaw chuck
Chip conveyor
Chip pan
