Machine is in Excellent Condition & Ready For Inspection.
| Table-W | 20" | 508 mm |
| Table-L | 87" | 2,209.8 mm |
| Travel-Long | 60" | 1,524 mm |
| Travel-Cross | 23" | 584.2 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 1,500 RPM | 1,500 RPM |
| Taper | CAT 50 | CAT 50 |
| Dimensions | 119”L x 100”W x 113”H | 119”L x 100”W x 113”H |
| Weight | 18,500 Lbs | 18,500 Lbs |
Specifications:
Model - VBM-5V
Year - 05/1994

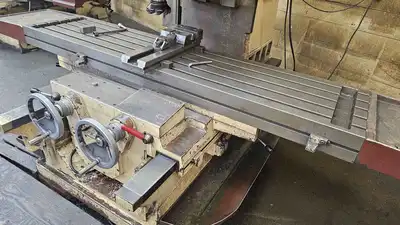

Table Size - 20” x 87”
Table Travel (Left/Right) - 60”
Head Travel (Up/Down) - 27”
Table Travel (Front/Back) - 23”
Spindle Speeds - 45 to 1500 RPM
Spindle Taper (Power Draw Bar) - CAT 50
Spindle Motor - 15 HP
Electrics - 575V/3PH/60HZ
Made In - Taiwan
Approximate Weight - 18,500 LBS
Approximate Overall Dimension - 119”L x 100”W x 113”H
Equipped With:
Three Axis Heidenhain Digital Readout

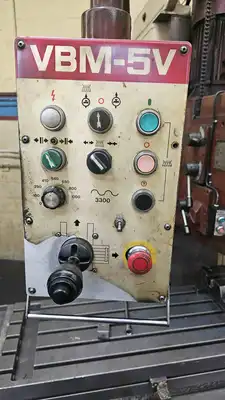

Push Button Pendant Control
50 Taper With Power Draw Bar
Rapid Feeds
Coolant System
