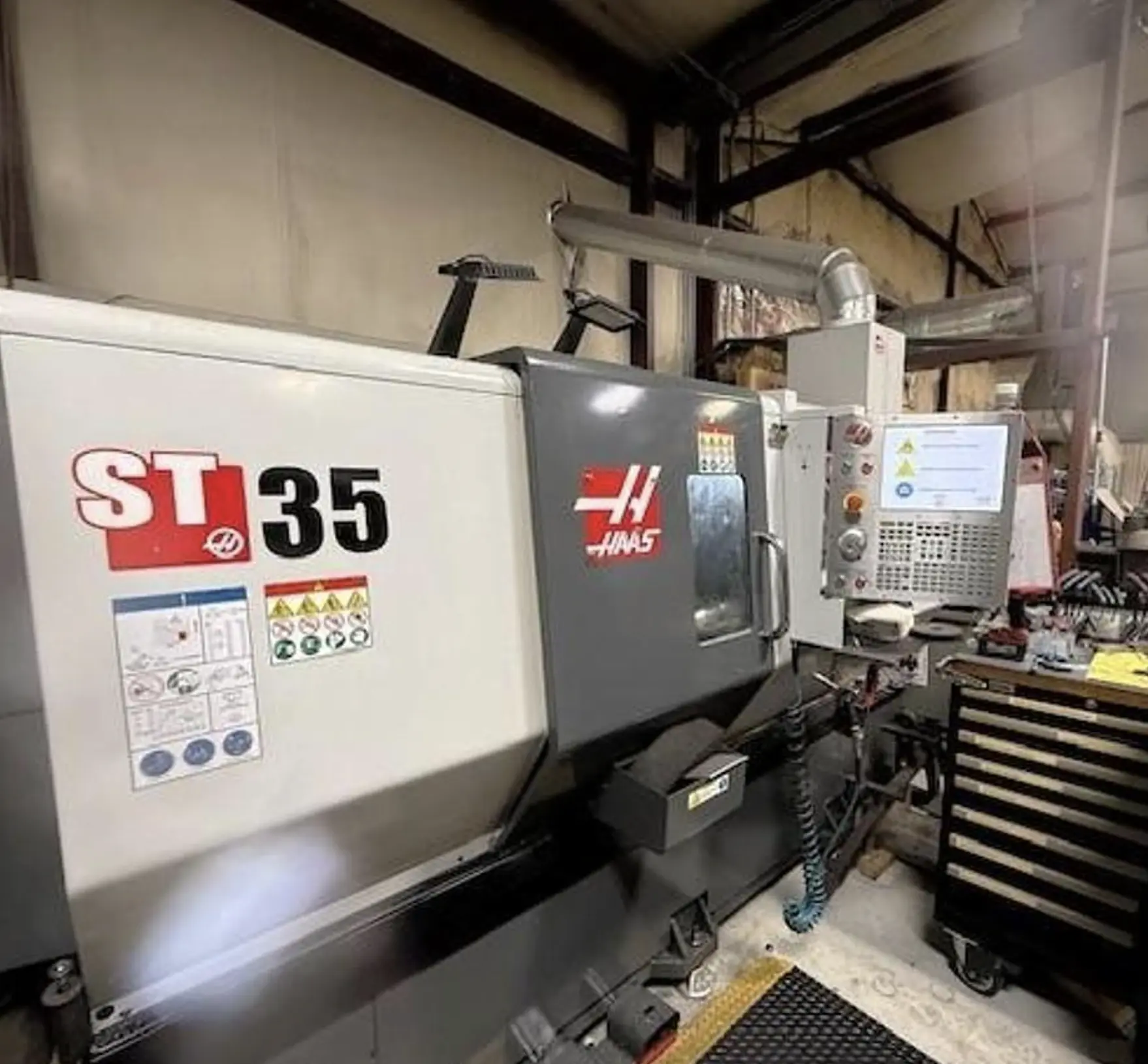

2017 HAAS ST-35 CNC Lathe in used condition features a 31.75" swing, 26" machining length, 12" hydraulic chuck, and delivers 40 hp. Includes parts catcher, programmable tailstock, coolant system, and 2-speed gearbox.
| Swing | 31.75" | 806.45 mm |
| Machining Length | 26" | 660.4 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 2,400 RPM | 2,400 RPM |
| Turning Dia | 21" | 533.4 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (HAAS) | CNC (HAAS) |
4" Bar Capacity
12" 3 Jaw Hydraulic Chuck
Chip Conveyor
Parts Catcher
Programmable Tailstock
2 Speed Gearbox
Coolant System with Tank & Pump
Rigid Tapping
Enclosure Exhaust System
High Intensity Lighting
USB Port Interface
RS 232 Port Interface
15" Color LCD Monitor
