Used

USED 1994 FIRST LC-185VS

Ontario, Canada

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

60Listings|28Followers
Overview
Vertical Mills

Machine is in Excellent Condition & Ready For Inspection.

Specs
Table-W
10"
254 mm
Table-L
50"
1,270 mm
Travel-Long
29"
736.6 mm
Travel-Cross
16"
406.4 mm
Power
3 hp
2.2 kW
RPM
4,500 RPM
4,500 RPM
Taper
R8
R8
Dimensions
70”W x 65”W x 88”H
70”W x 65”W x 88”H
Weight
3,250 Lbs
3,250 Lbs

Specifications:

Model - LC-185VS
Year - 1994
Table Size - 10” x 50”
Table Travel Left/Right - 29”
Table Travel Front/Back - 16”
Table Travel Up/Down - 16”
Quill Travel - 4.7”
Spindle Taper - R8
Spindle Speeds (Variable) - 60 to 4500 RPM
Spindle Motor - 3 HP
Electrics - 575V/3PH/60HZ
Made In - Taiwan
Approximate Weight - 3,250 LBS
Approximate Overall Dimension - 70”W x 65”W x 88”H

Equipped With:

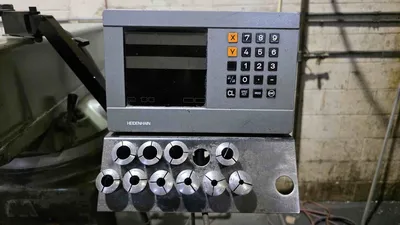

Heidenhain Digital Readout
Variable Spindle Speeds
One Shot Lubrication
