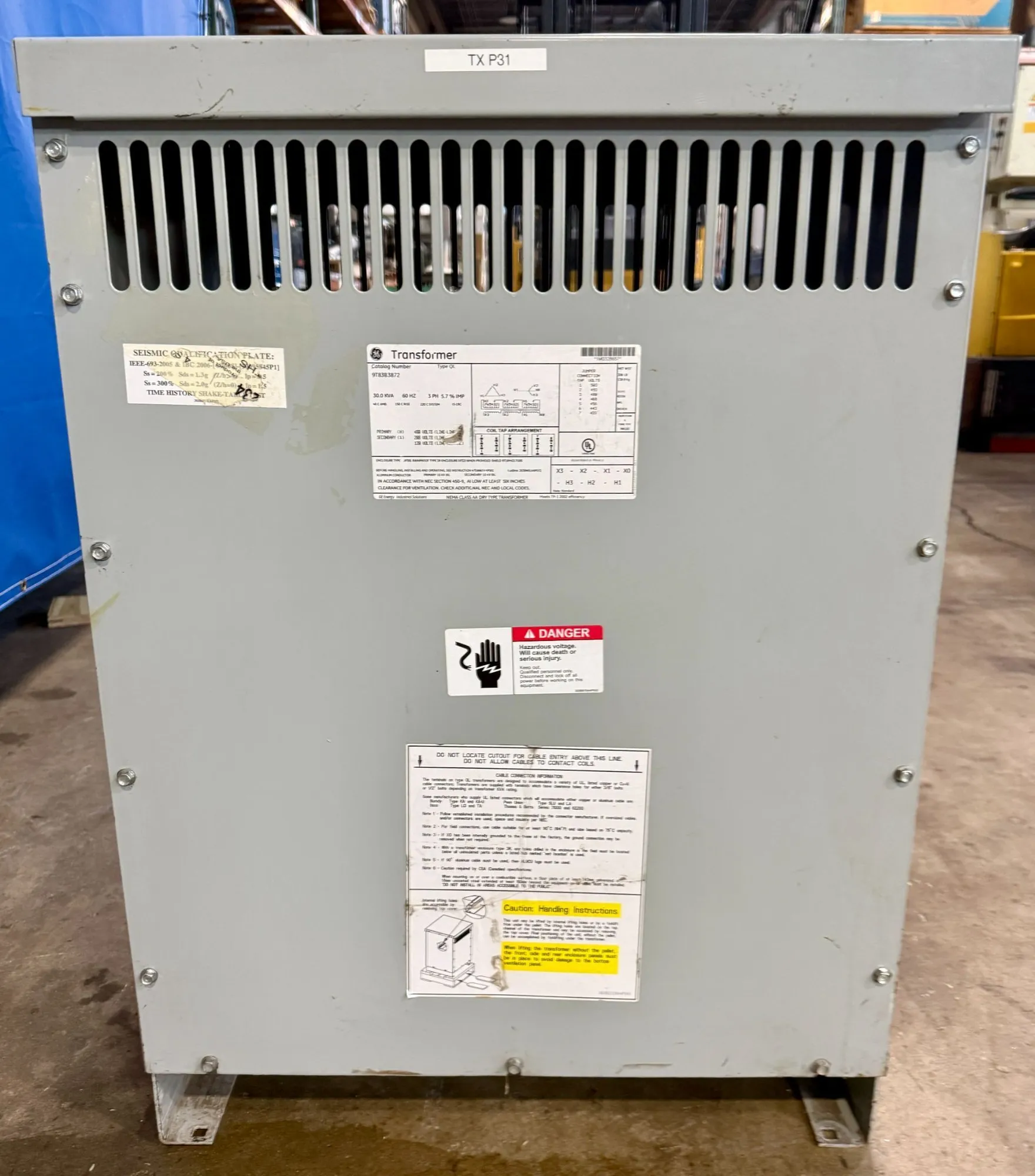

30 kVA GENERAL ELECTRIC TRANSFORMER, Type QL, Catalog # 9T83B3872, 3-Phase, 480 V Primary to 208Y/120 V Secondary, 60 Hz, Multi Tap, Dry Type.
| Catalog Number | 9T83B3872 | 9T83B3872 |
| Phase - Electrical | 3-Phase | 3-Phase |
| Primary Input Voltage | 480 V | 480 V |
| Secondary Output Voltage | 208Y/120 V | 120 V |
| VA Rating | 30 kVA | 30 kV·A |
| Multi-Tap? | Yes | Yes |
| Mounting | Floor | Floor |
| Frequency | 60 Hz | 60 Hz |
| Temp Class | 220° C | 220°C |
| Temp Rise | 150° C | 150°C |
| % Impedance | 5.7 | 5.7 |
| Enclosure Rating | NEMA 2 | NEMA 2 |
| Winding Material | Aluminum | Aluminum |
| Discontinued by Manufacturer? | Yes | Yes |
| Dimensions | 24" x 19" x 32" | 24" x 19" x 32" |
| Weight | 310 lbs | 310 lbs |
