USED PEARSON 10 X .125
Overview

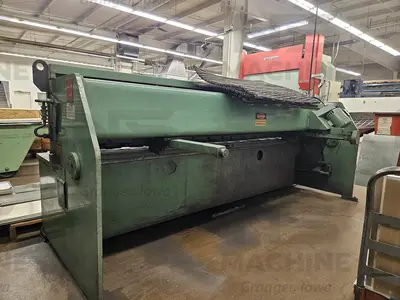

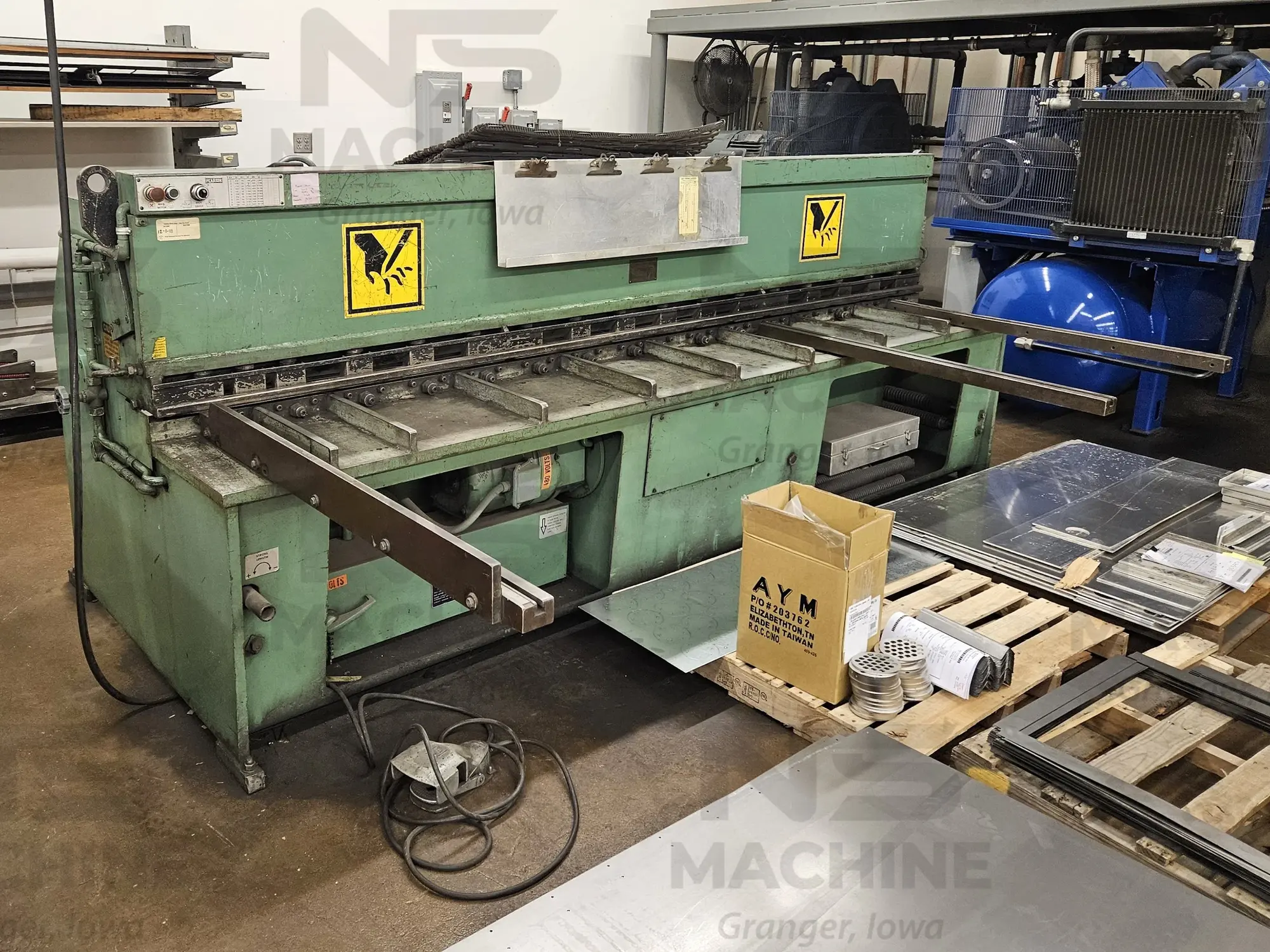

This Pearson shear is capable of shearing mild steel .125” thick up to 10’ long. It is equipped with a 24” front operated power back gauge; a 54” squaring arm; two front material support arms; a foot pedal control and adjustable stroke.
For questions or to schedule an inspection of this 10’ Pearson Hydraulic Shear, please call 515-999-2999 or email your request to [email protected]. To request a quote for this 10’ Pearson Hydraulic Shear, use the “Request Quote” button on this page.
Front operated power back gauge (24")
(2) Front support arms
(1) Squaring arm (54")
Adjustable stroke length
Hydraulic holddowns (17)
Foot pedal control
Specs
Shearing length — 10’
Knife length — 122”
Shearing thickness — .125”
Number of holddowns — 17
Throat depth — 6”
Material working height from floor — 29.5”
Back gauge range — 24”
Motor —7.5 HP / 1720 RPM
Volts —230/460
Phase — 3
Cycles — 60
Amps — 21 / 10.5
Back gauge motor — .33 HP
Approximate dimensions — 139" x 92" x 53" high
Approximate weight — 9,000 lbs.
Shipping dimensions (arms removed) — 139' x 59' X 53' high
