USED 1961 CHICAGO 400-H-10
Overview

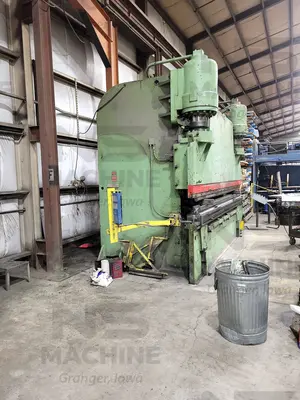

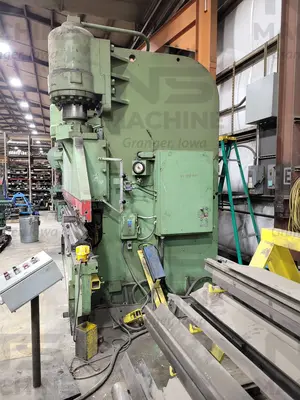

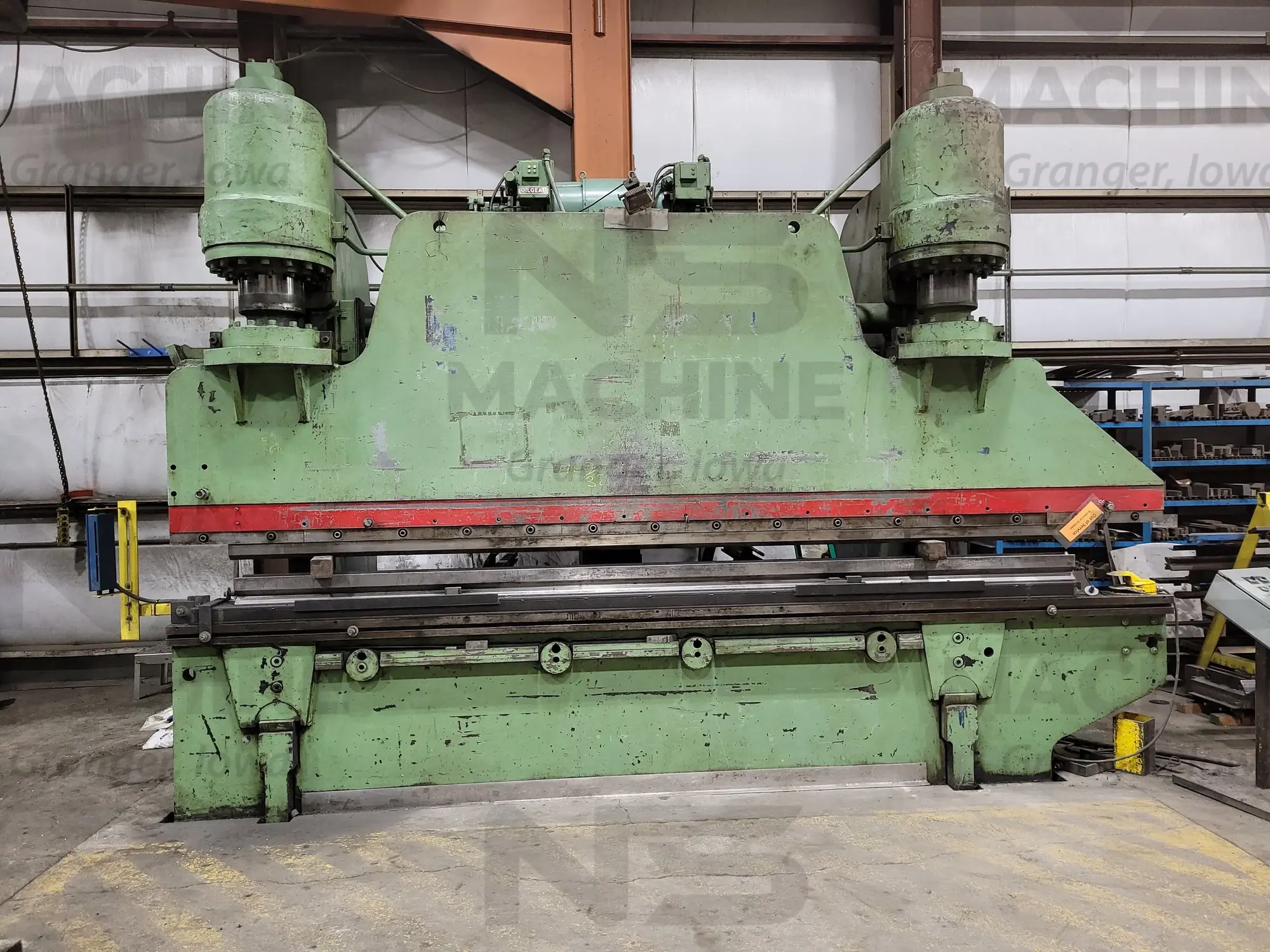

This Model 400-H-10 Chicago hydraulic press brake has 400 tons of pressing force and overall bending length of 14' and distance between side frames of 10' 6". Maximum bending capacity in mild str is 10' x 1/2". This brake is equipped with back gauge and safety light curtains.
For questions or to schedule an inspection of this 400 ton Chicago Hydraulic Press Brake, please call 515-999-2999 or email your request to [email protected]. To request a quote for this 400 ton Chicago Hydraulic Press Brake, use the “Request Quote” button on this page.

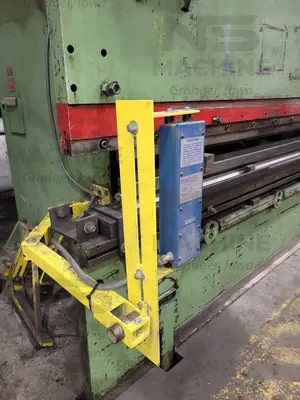

Light curtains

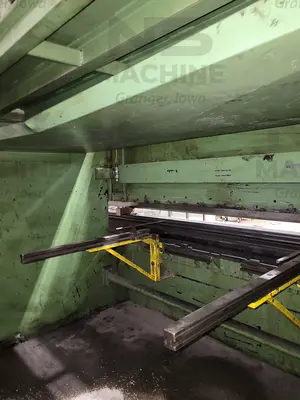

Back gauge
Specs
Tonnage - 400
Overall bending length - 14'
Distance between housings - 10' 6"
Capacity with 4" die opening - 10' x 1/2"
Throat depth - 16"
Open height - 20"
Stroke - 12"
Closed height - 8"
Pressing speed - 30 IPM
Return speed - 80 IPM
Bed height above floor - 34.5"
Bed width - 8"

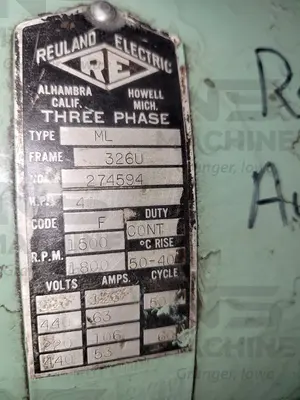

Motor - 40 HP
Volts - 220/440
Phase - 3
Cycles - 60
Amps - 106/53
Approximate dimensions - 14' LR x 7' 8" FB
Overall height above floor - 11' 5"
Depth of bed below floor - 26"
Approximate weight - 60,000 lbs.
