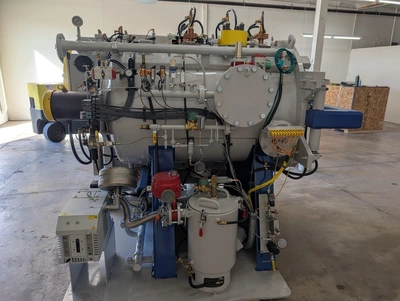

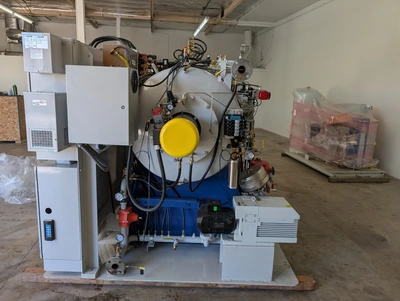

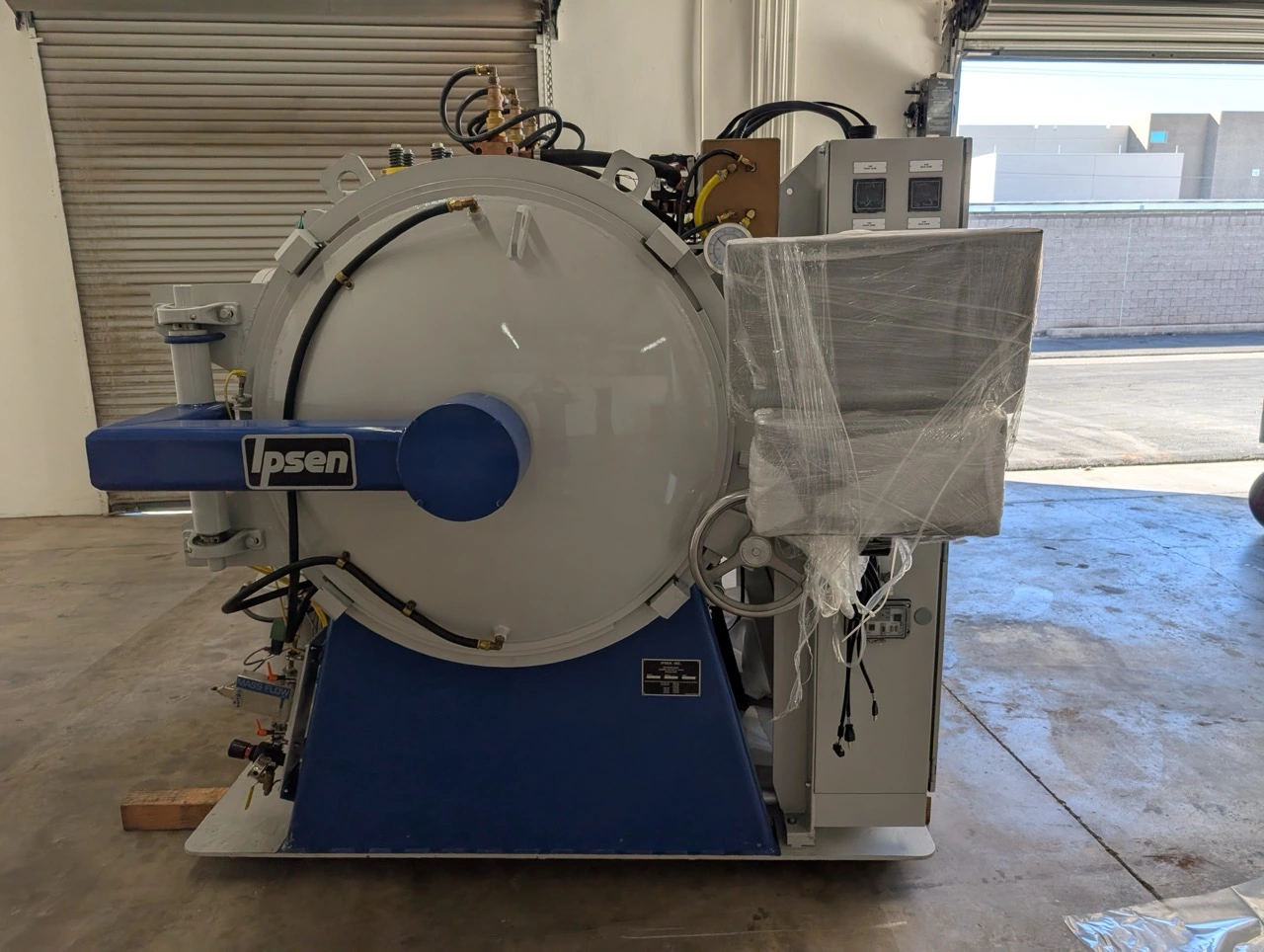

USED 2024 IPSEN DS121224
Specs
Model: TITAN DS 12x12x24 2 Bar (Nameplate Model DS121224)
Furnace Type: Horizontal Vacuum Debind & Sinter Furnace
Application: Debinding and sintering for MIM / PM parts, vacuum heat treating
Hot Zone Load Size: 12″ W x 12″ H x 24″ L
Maximum Load: 400 Lbs.
Operating Temperature Range: 500°F – 2,550°F
Cleanup Temperature: 2,650°F (2 Hrs. Max)

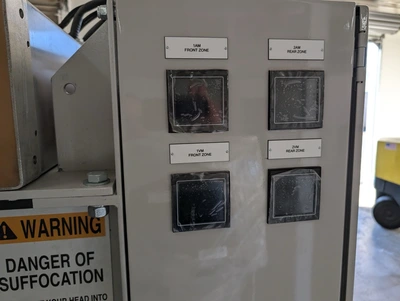

Hot Zone Trim Zones: 2

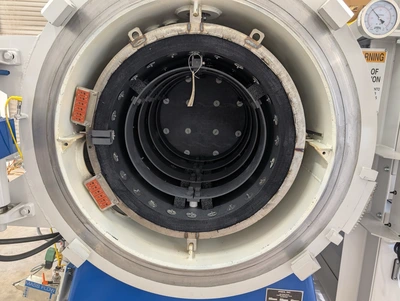

Heating Elements: Curved Graphite

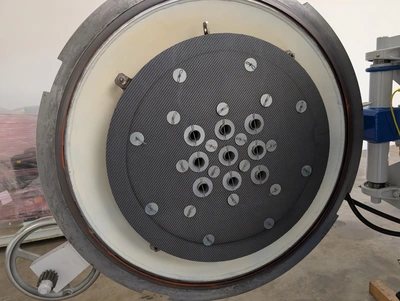

Heat Shields: 2″ Graphite Felt w/ CFC Hot Face
Binder Trap: Yes
Ultimate Vacuum: 20 Microns
Mechanical Pump: Leybold Trivac D65B
Diffusion Pump: None
Partial Pressure: Inert Gas Partial Pressure System (0 – 1,000 Microns)
Maximum Quench Pressure: 2 Bar
Quench Gas: Argon
Gas Cooling Motor: 15 HP
Controlled Cooling: Via VFD
Control System: Ipsen Vacuprof Touchscreen
Over-Temperature Instrument: Honeywell UDC-1200
Vacuum Instrument: Inficon

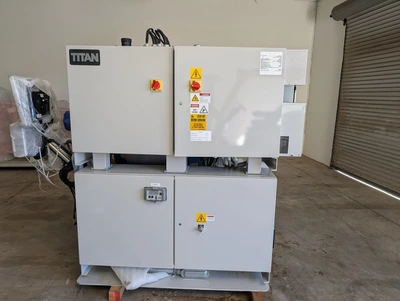

Control Cabinet: AKD Controls
Electrical: 460V / 3 Phase / 60 Hz
Maximum Amperage Draw: 87 Amps
Heater Power Supply Load: 76 Amps
Water: 60 GPM Peak Demand, 50 PSIG
Water Connections: 2″ 150# ANSI Flanged Inlet & Drain

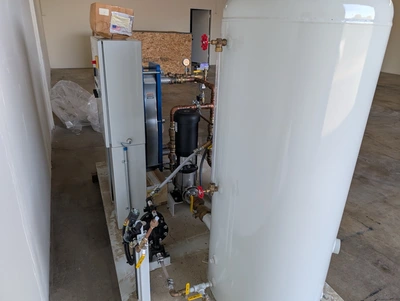

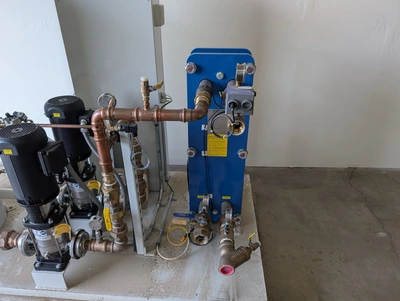

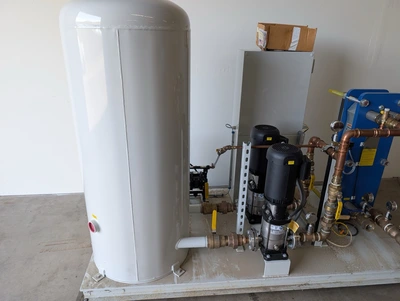

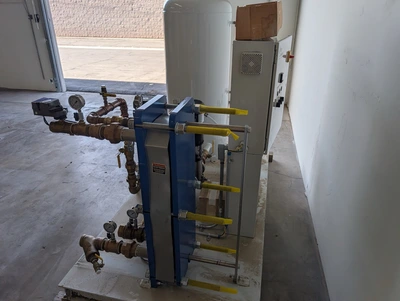

Included Water System: Aqua-Vent CleanLoop Furnace Pump Station, Model CDX-150-120-PHE-EDP-MVP-MP, 30 GPM / 60 PSI, 480V
Includes: Ipsen Operation & Maintenance Manual
