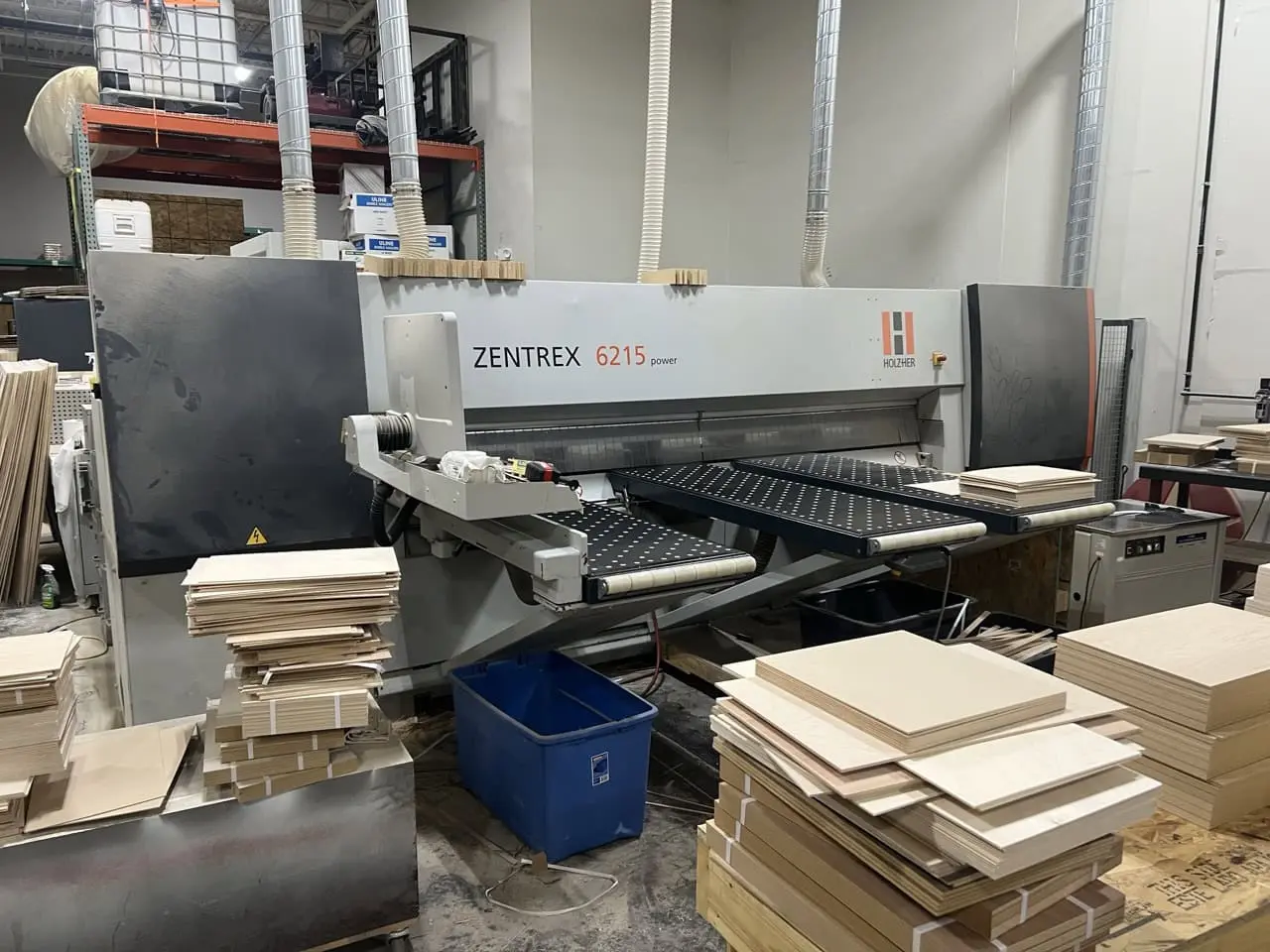

USED 2019 HOLZ-HER MASCHINENBAU GMBH 6215

Capacity: 3.15” x 126“

Cutting Capacity
Max Cutting Length: 3,200 mm (126″)
Max Cutting Height: 80 mm (3.15″)
Saw Blade Diameter: 350 mm
Main Saw Motor: 11 kW
Scoring Saw Motor: 2.2 kW
Saw Carriage Feed Speed: up to 80 m/min
Return Speed: up to 120 m/min
Pressure Beam & Clamping
Automatic pressure beam with independent clamping zones
Pneumatic material clamping
Programmable pressure settings
Floating pressure beam for uneven panels
Program Fence / Pusher
Servo-driven program fence
Pusher Speed: up to 90 m/min
Positioning Accuracy: ±0.1 mm
Integrated side alignment
Air Table & Material Handling
Air flotation tables for easy sheet movement
Rear loading air tables
Side support tables
Front air tables with stainless surface
Controls
Holz-Her PC-based control system
Touchscreen HMI
Optimization and cut list management
USB / network connectivity
Diagnostic and service menus
Electrical
Voltage: 400V / 50Hz / 3-Phase (typical EU configuration)
Control Voltage: 24V
Total Connected Load: approx. 15 kW
Options & Equipment
Automatic Label Printer (cut part labeling)
Grooving Unit
Postforming Device
Automatic Angle Cutting Unit
Power-Driven Pressure Beam
Additional Air Tables
Rear Loading System
Barcode Scanner Integration
Optimization Software Package
Offcut Management System
Dust Extraction Connection Ports
Dimensions & Weight
Overall Length: approx. 6,000 mm (236″)
Overall Width: approx. 5,500 mm (217″)
Overall Height: approx. 1,600 mm (63″)
Weight: approx. 5,500 kg (12,100 lbs)
~11,600 Hours
Series: DBS19V2
Country of Manufacture: Austria
CE Marked: Yes
