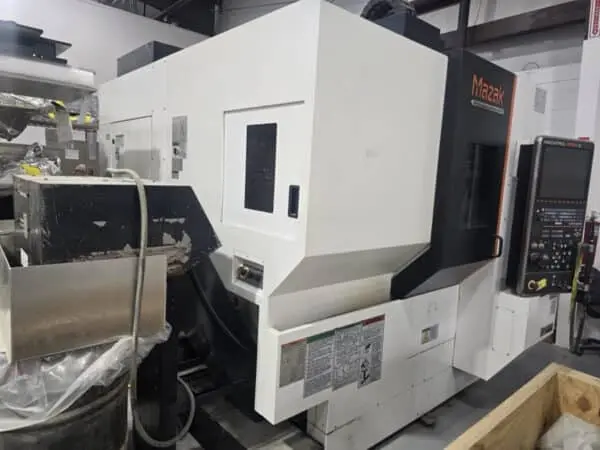

Mazak VCU-500/5X 5-Axis – 2014

Mazak VCU500-5X 5-Axis Vertical Machining Centers
X-Axis: 21.85″

Y-Axis: 19.88″

Z-Axis: 20.07″

B-Axis: +/- 110 Deg

C-Axis: +/- 360 Deg

Spindle Speed: 12,000 RPM

Spindle Taper: CAT 40

Spindle Motor: 25 HP

Tool Changer: 30 ATC

Rapid Traverse Rates: 945 IPM

Machine Weight: 12,000 LBS

Mazatrol Matrix 2 Control

5 Axis Trunnion Rotary Table

High Pressure Coolant Through Spindle

30 Tool Magazine

Workpiece Air Blast

Work Measuring System RMP600

Chip Conveyor

User Macros

Tilted Working Plane

Thread Cutting

Polar Coordinate Input

Probing
